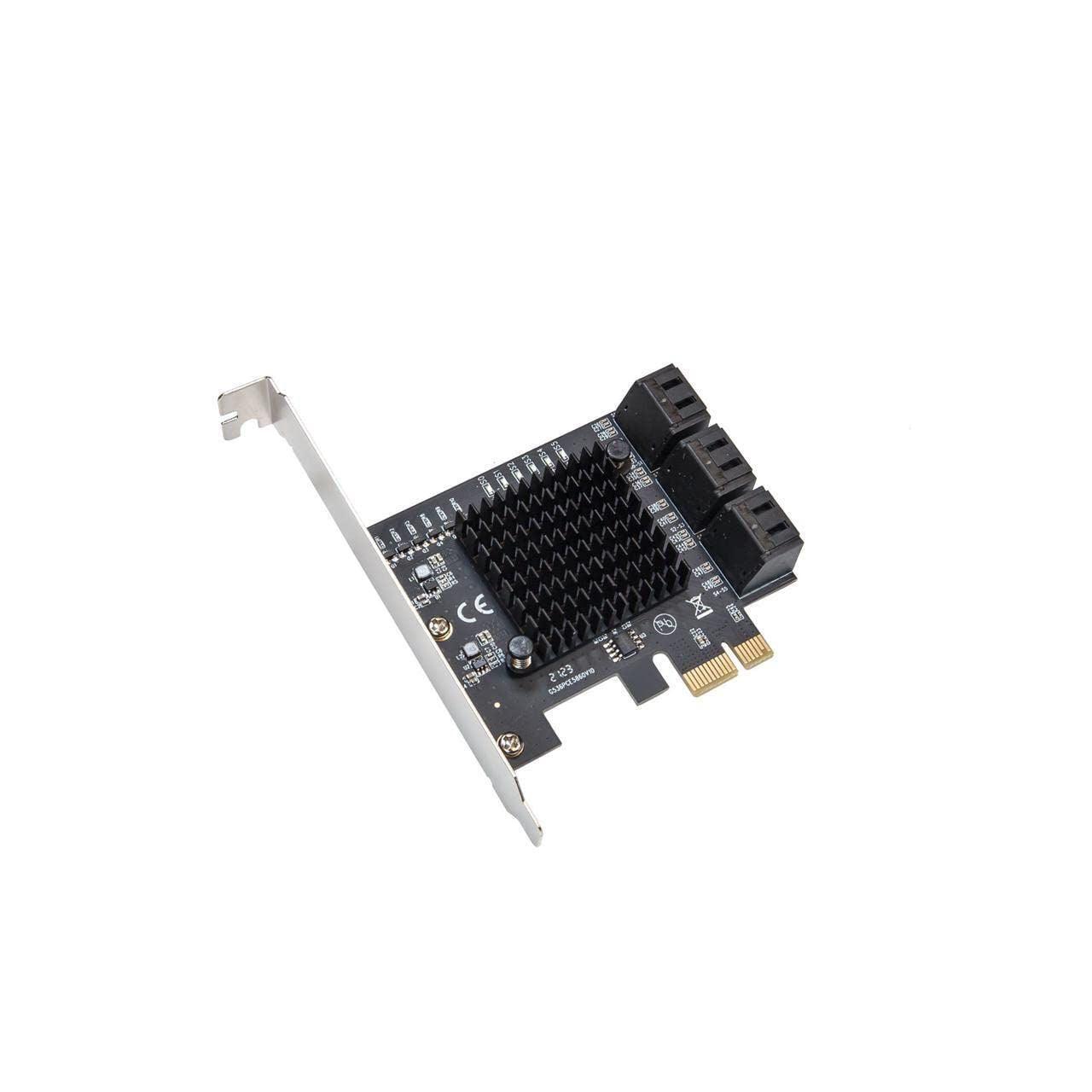

IO CREST 6 Port SATA III to PCIe 3.0 x1 Non-RAID Expansion Card JMB575 JMB582 Low Profile Bracket (SY-PEX40166) ^Sale

Brand: IO CREST

Features:

• Supports 6-port 6Gb/s SATA III interface,Supports Port Multiplier,Supports Hot-Plug,Supports drive power control and staggered spin-up.Supports SATA Partial / Slumber power management state.
• Compliant with Serial ATA AHCI (advanced host controller interface) Specification Rev 1. 0, supports SATA 3. 0 transfer rate up to 6Gbps. Maximum sequencing read/ write speed 850 MB/s.

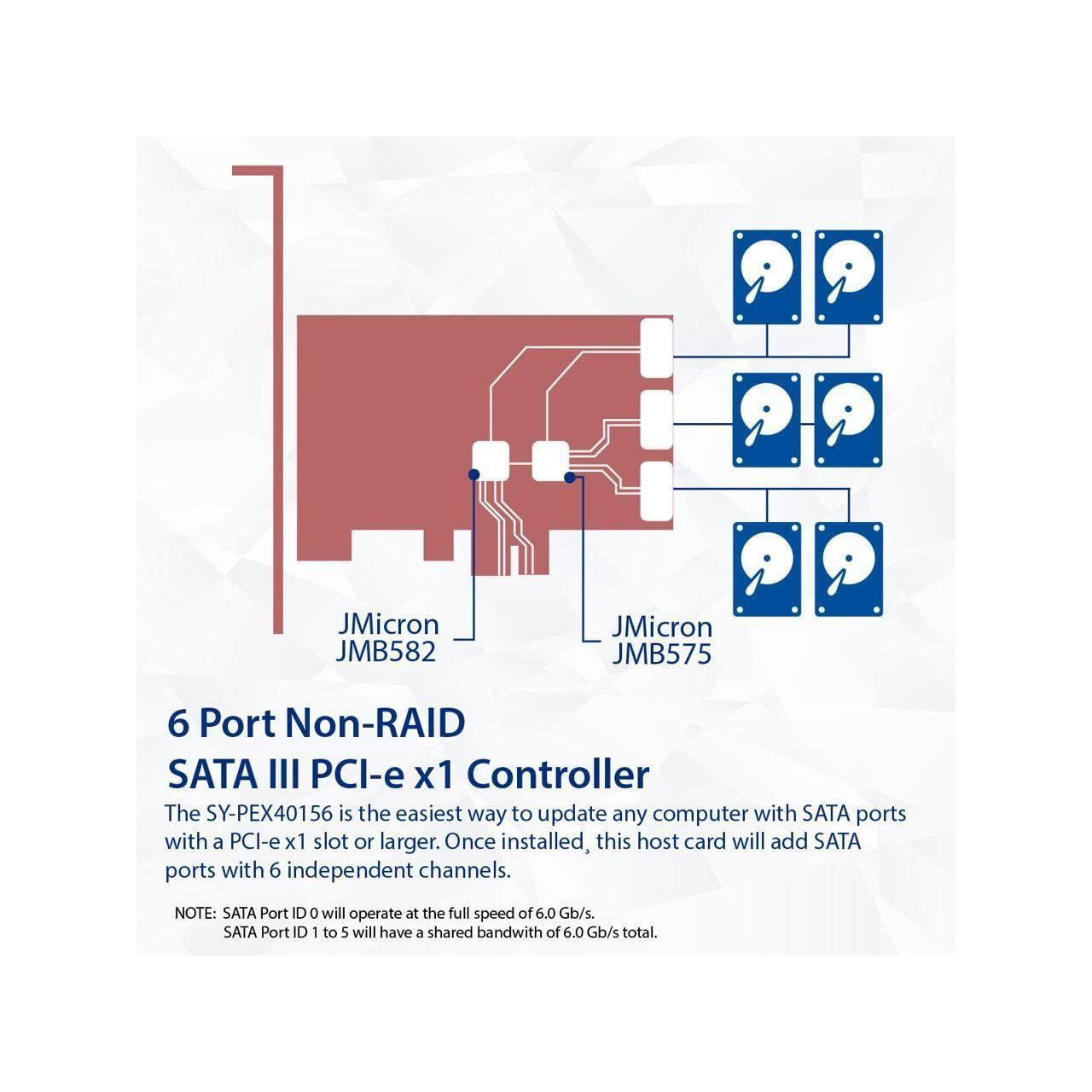

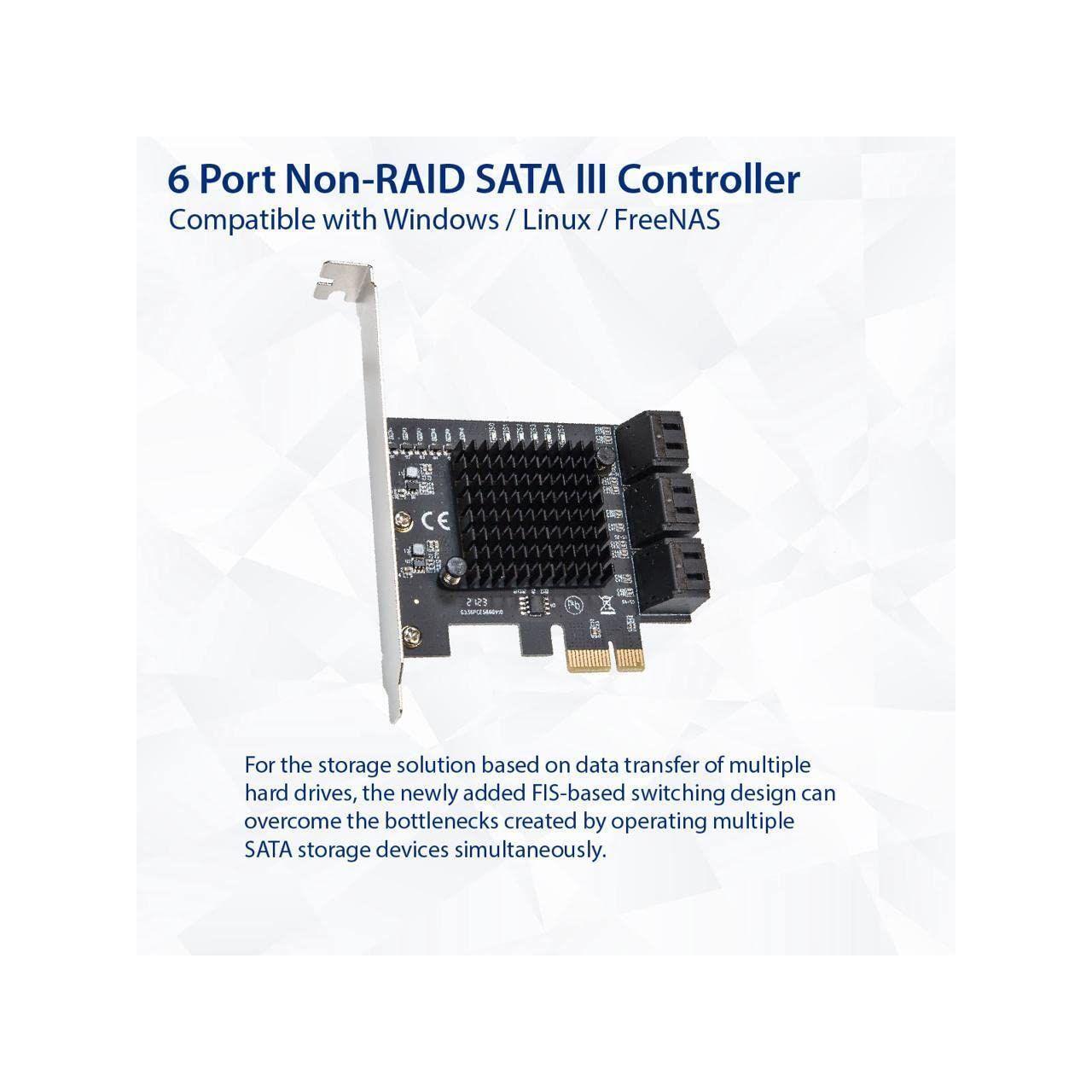

• Micron JMB582 Chipset, Port Multiplier FIS-based and Command-based switching supported. Hot plug and Hot swap SATA ports. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
• Compatible with Windows XP/7/8/10/Mac/NAS/Linux OS. No driver installation is required. Support install Windows OS from Win10 PE.

Binding: Personal Computers

Release Date: 14-07-2021

model number: SY-PEX40166

Part Number: SY-PEX40166

Details: The SY-PEX40166 adds 6 SATA 6G ports through a PCIe 3.0 x1 card to your PC System. It's an ideal solution for surveillance users to install up to 10 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required.

EAN: 0857426008444

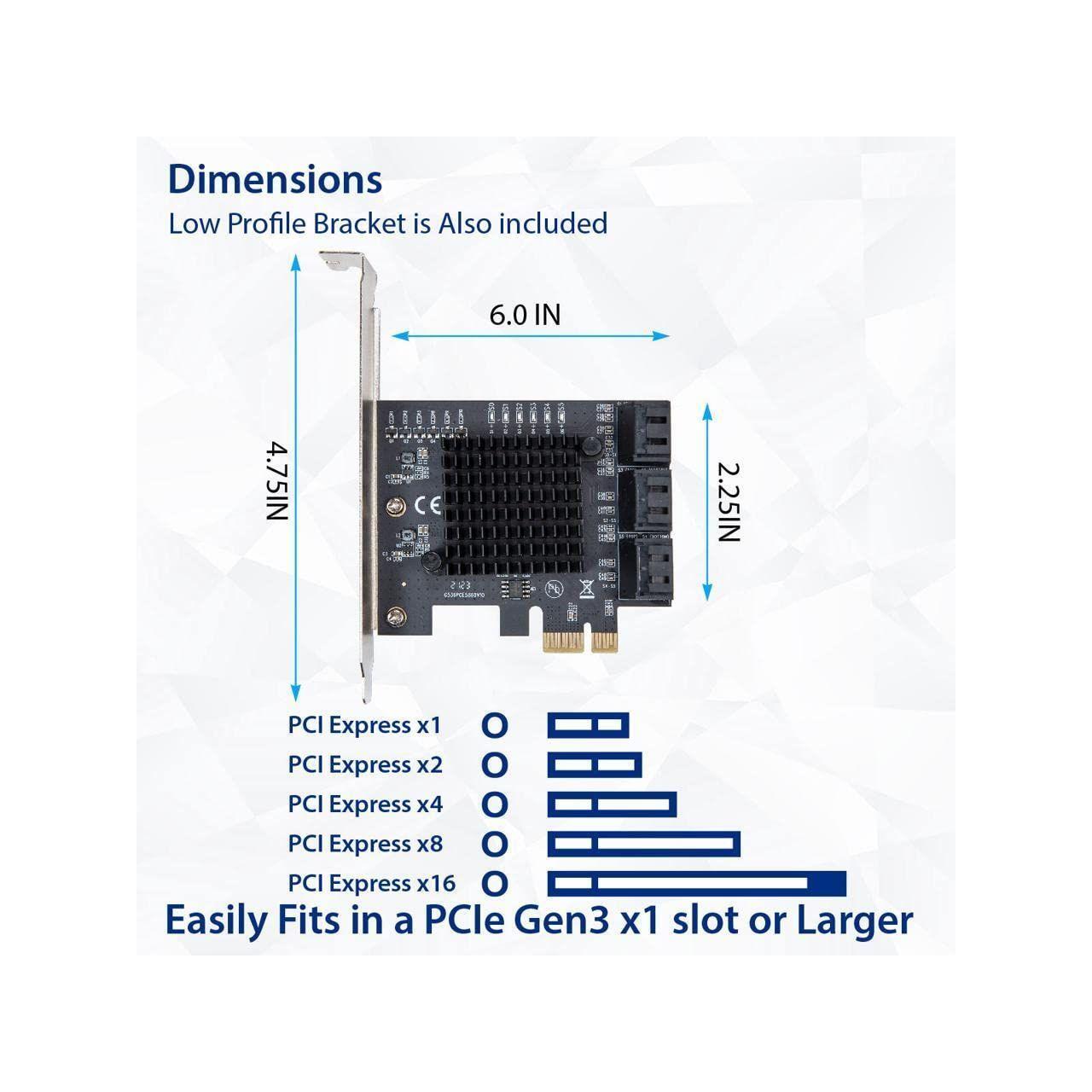

Package Dimensions: 7.0 x 5.6 x 1.5 inches
