IO CREST Internal 5 Port Non-RAID SATA III 6GB/s M.2 B+M Key Adapter Card for Desktop PC Support SSD and HDD. JMB585 Chipset ^Sale

Brand: IO CREST

Features:

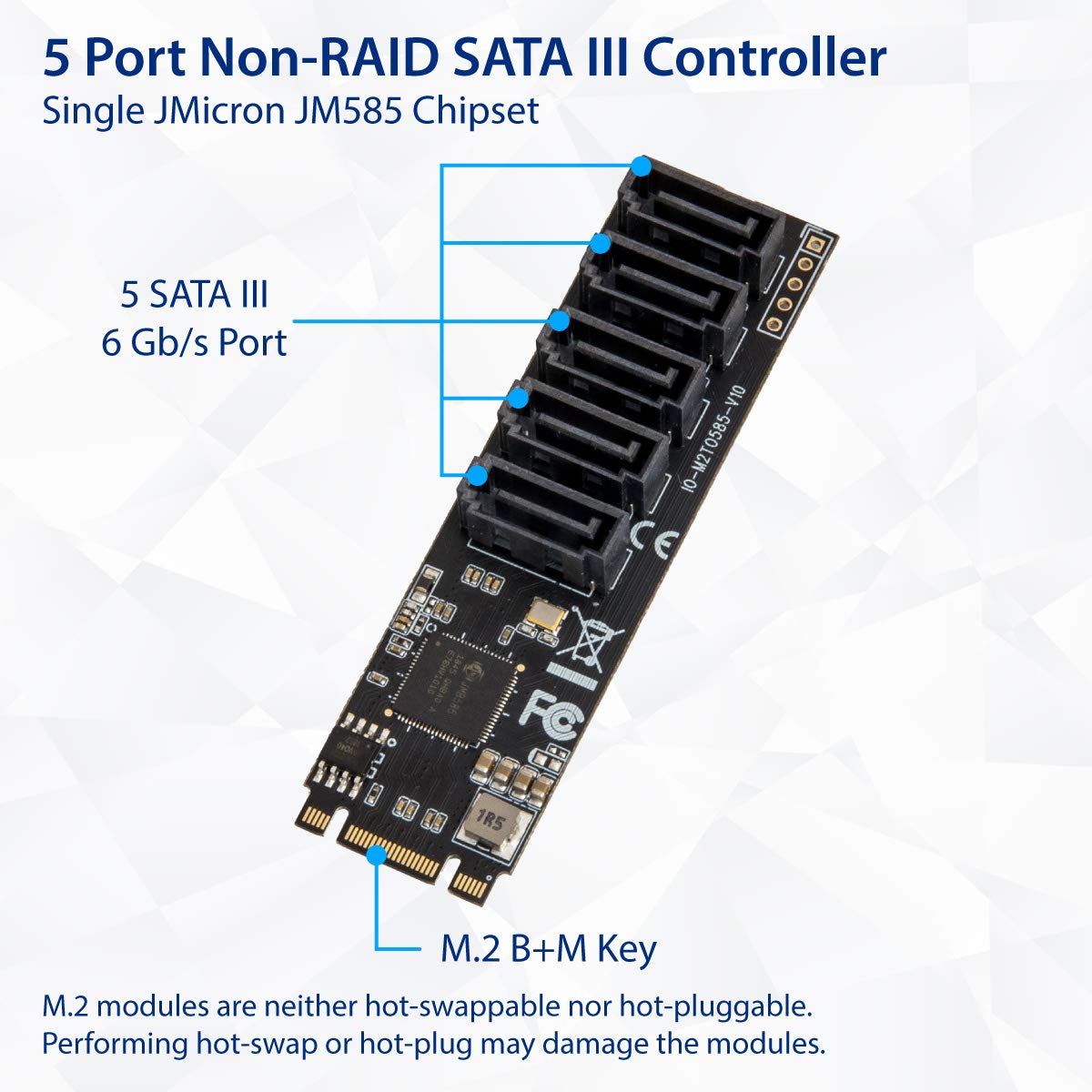

• Connect five SATA drives to a M.2 B+M key Connection, providing up to 1700 MB/s Speed.
• Plug and play supported, No additional software installation or setting required.
• Can support port Multiplier that is not in a RAID configuration. Compatible with SATA hard drives & Solid state drives and computer systems with SATA controllers.
• 2-Lane M.2 PCI-Express 3.0 interface (B & M Key). complies with PCI Express base Specification Revision 3.1a.

Binding: Personal Computers

Release Date: 14-06-2019

model number: SI-ADA40141

Part Number: SI-ADA40141

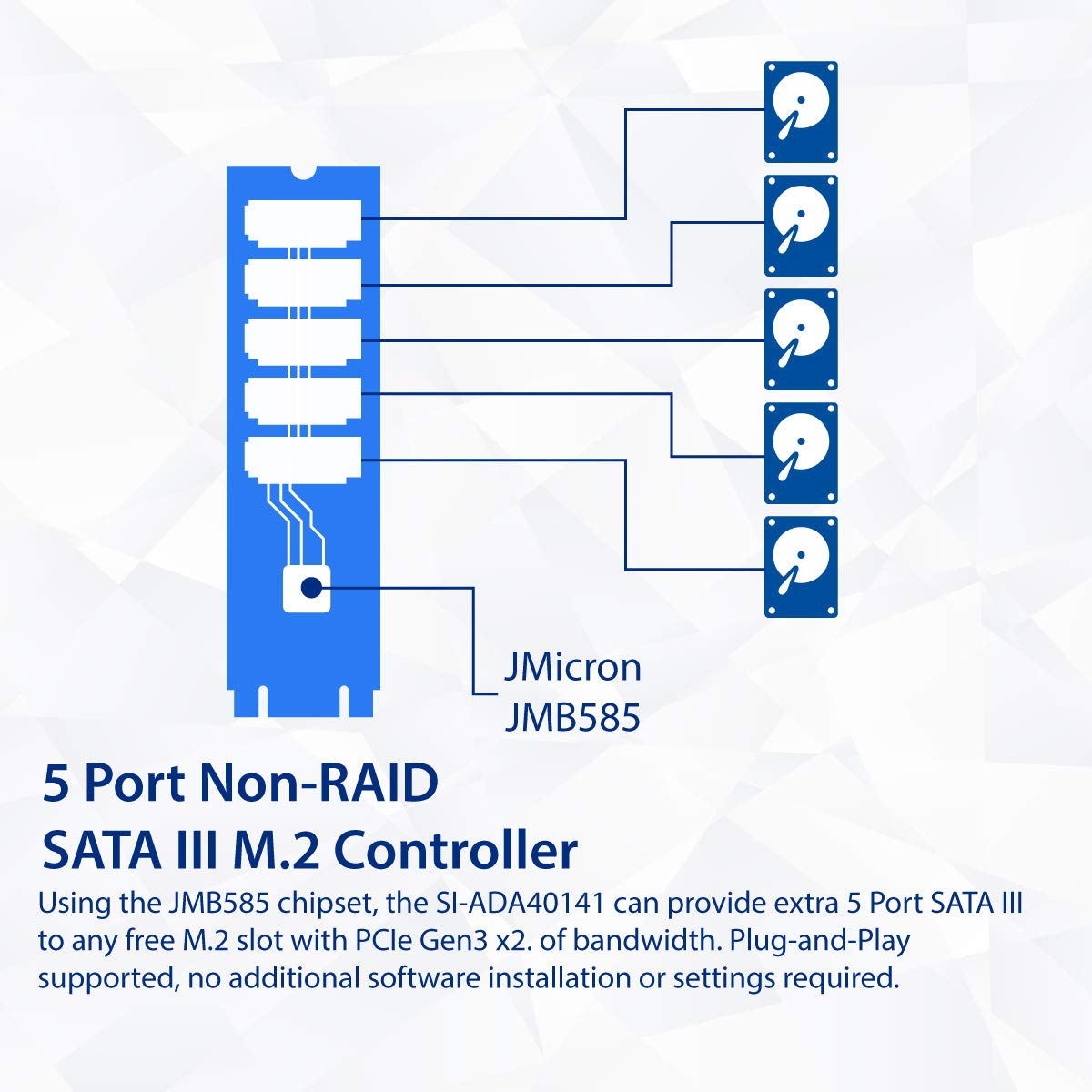

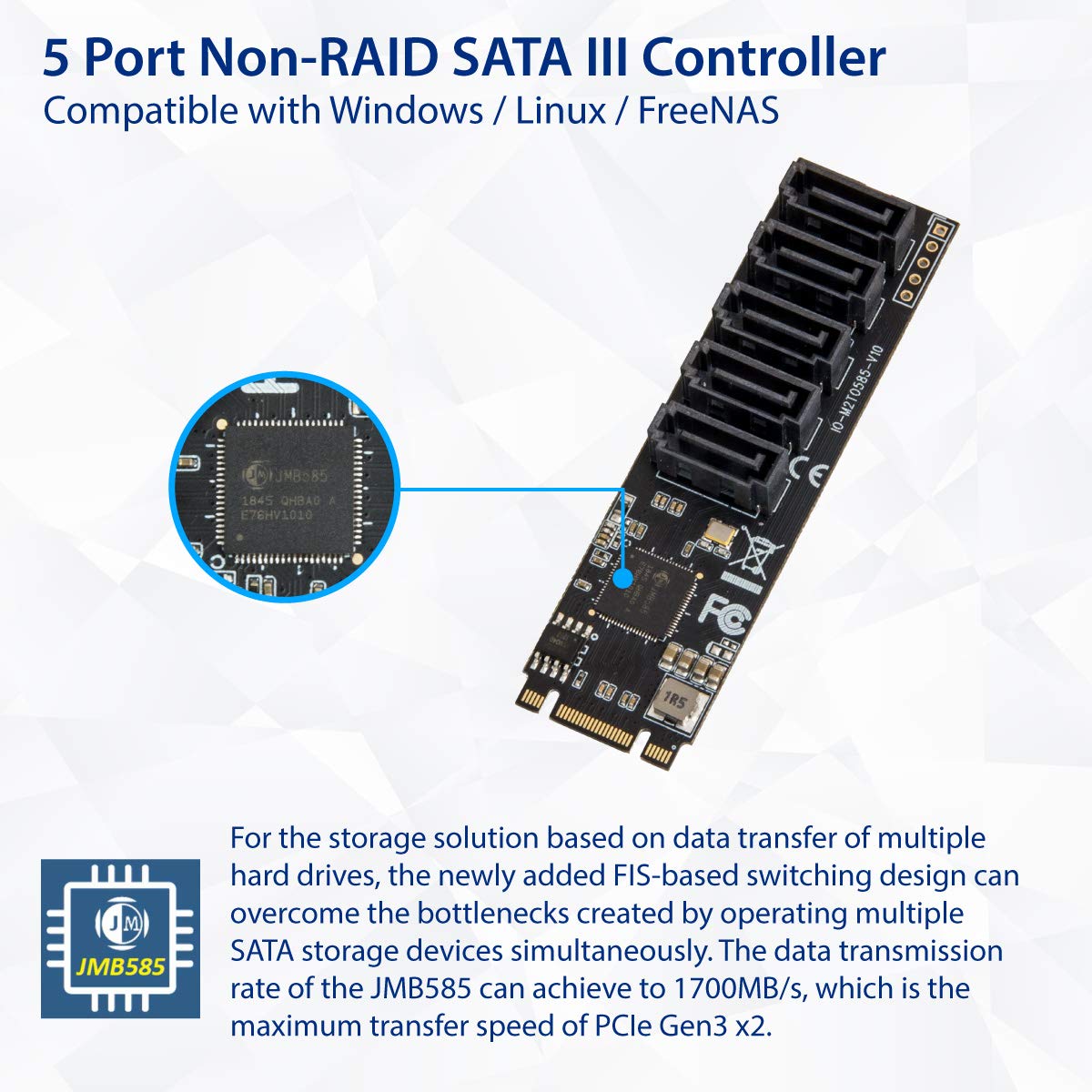

Details: Using the JMB585 chipset, the SI-ADA40141 can provide M.2 (PCIe Gen3 x2 bandwidth) to 5 port SATA 6GB/ s card solution. For the storage solution based on data transfer of multiple hard drives, The newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.

EAN: 0857426008345

Package Dimensions: 6.9 x 5.6 x 1.5 inches
