IO Crest Quad M.2 NVMe PCIe x16 Expansion Card for Intel VROC and AMD Ryzen Threadripper Motherboard ^Sale

Brand: IO CREST

Features:

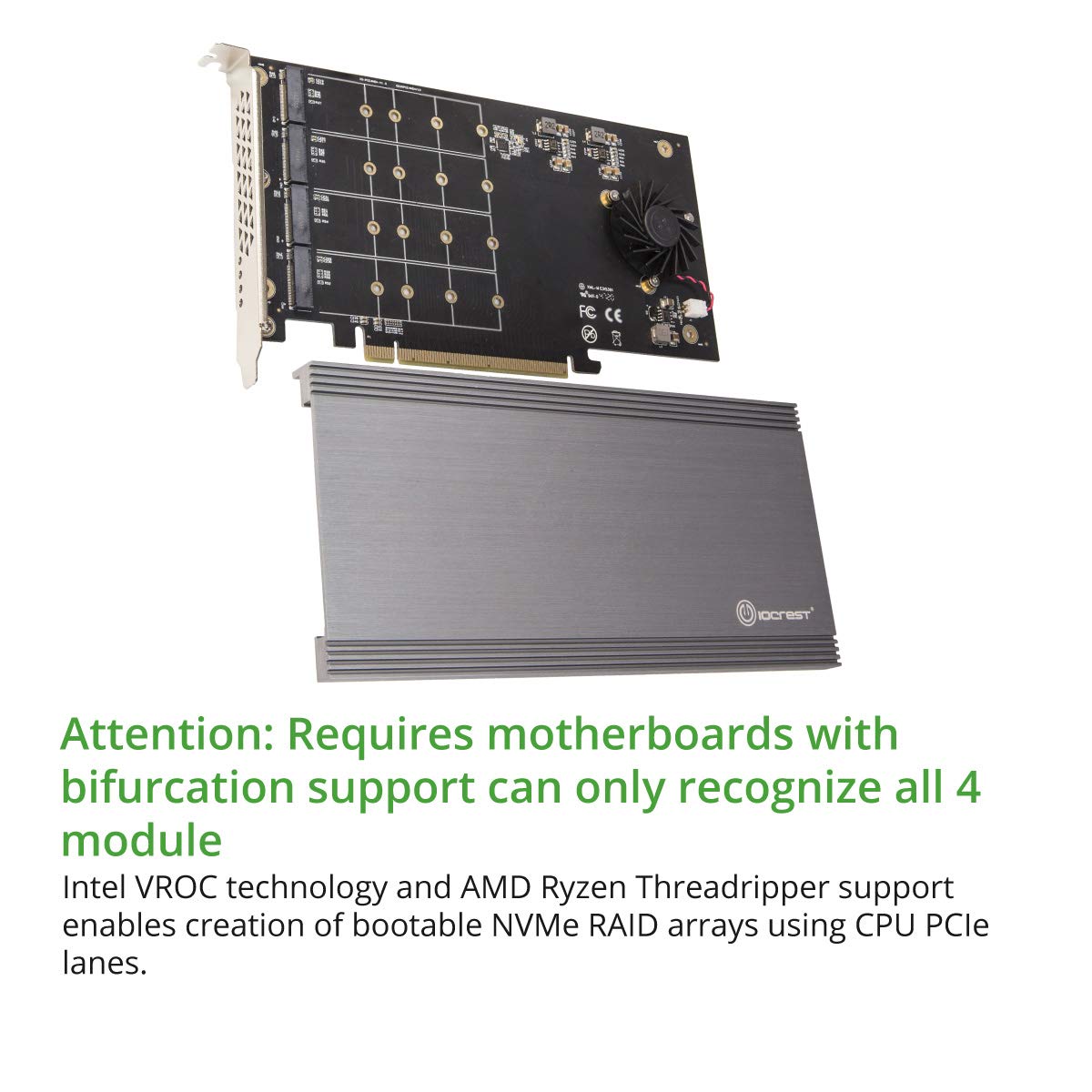

• Intel VROC technology and AMD Ryzen Threadripper support enables creation of bootable NVMe RAID arrays using CPU PCIe lanes.

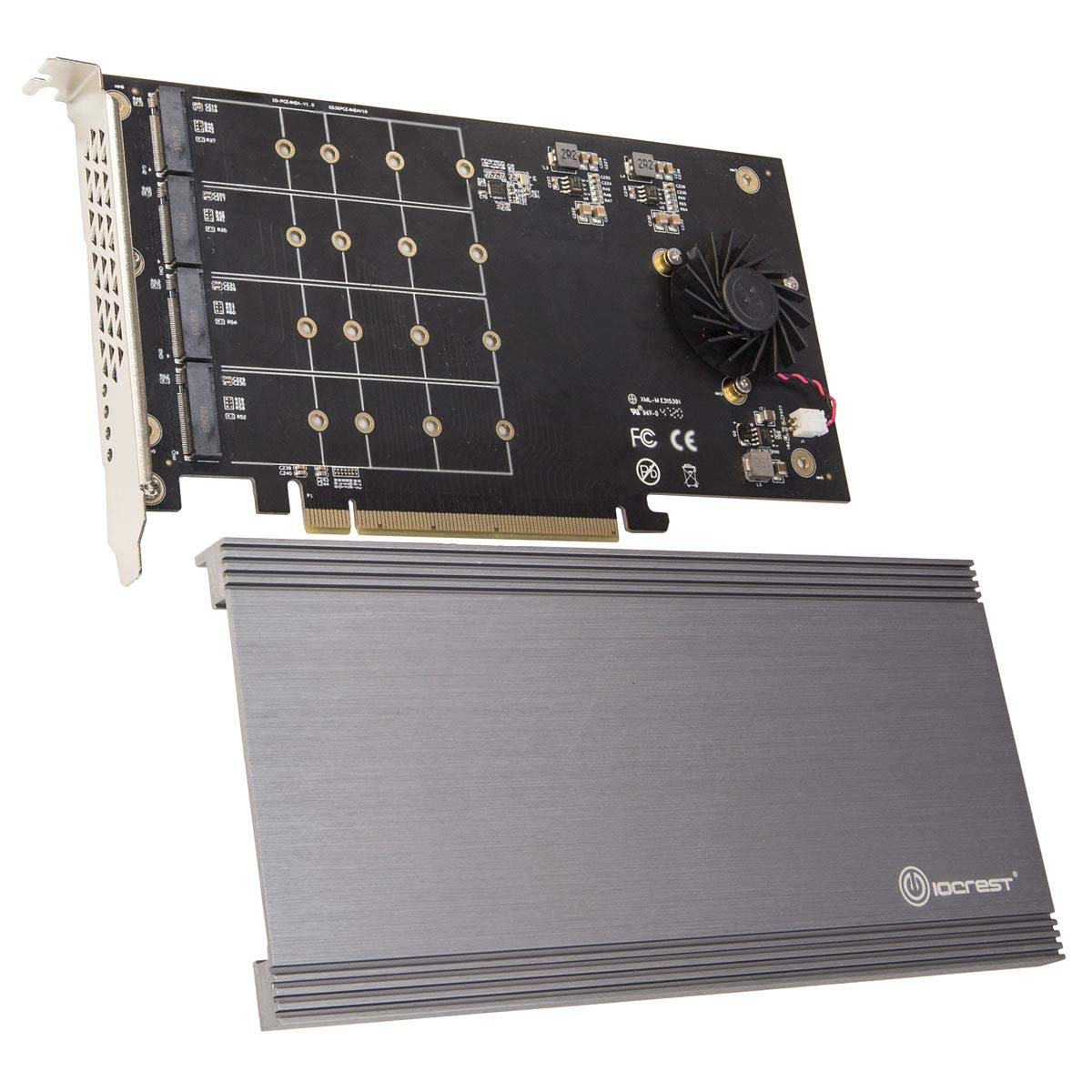

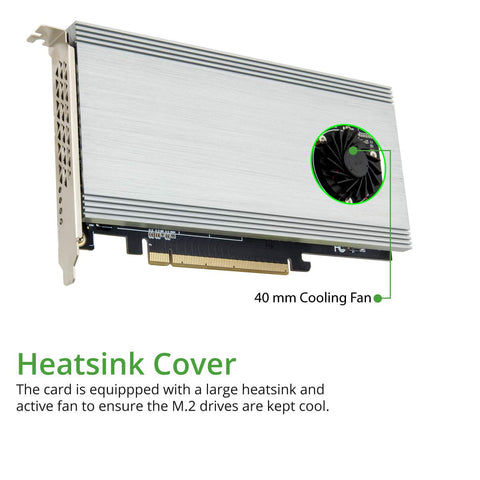

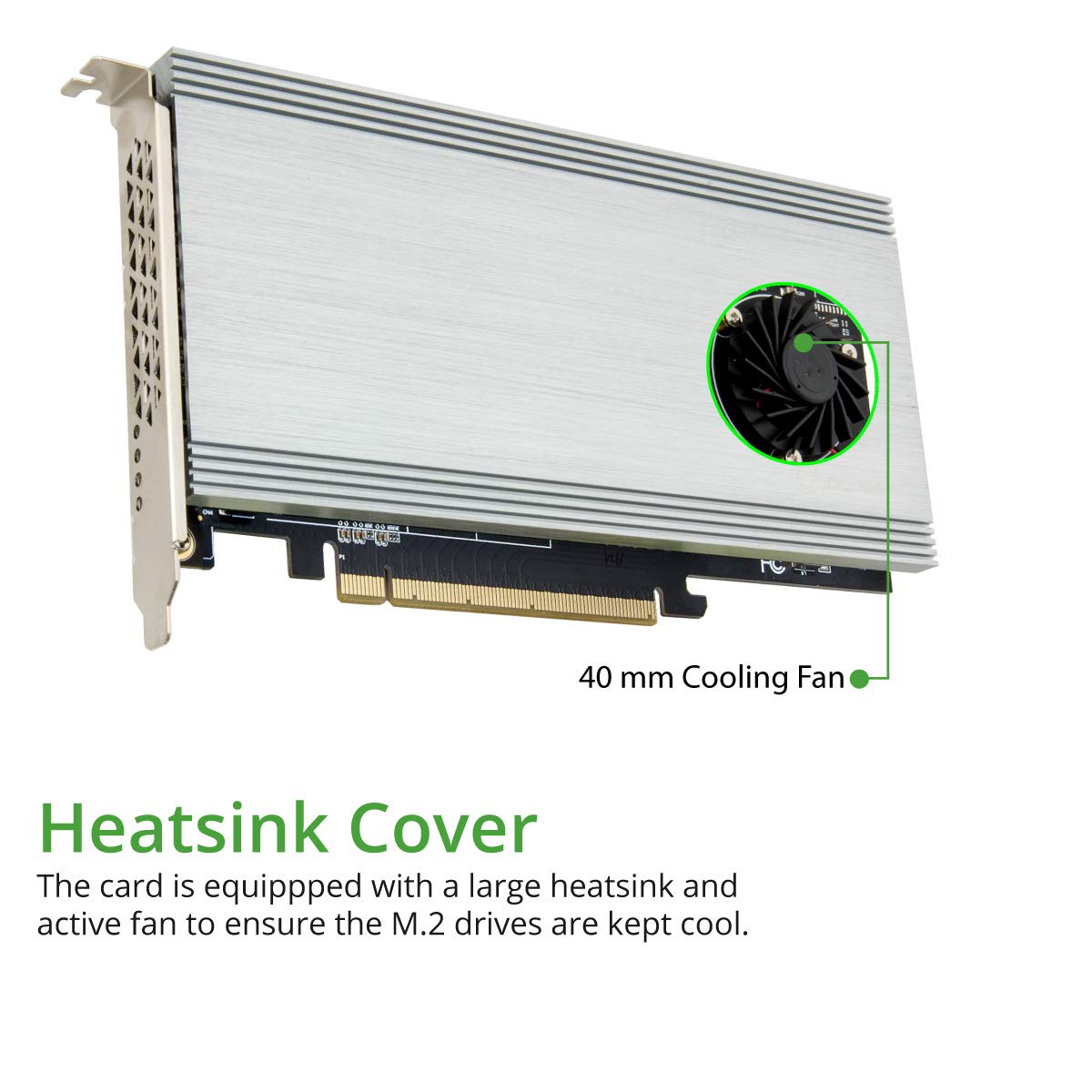

• New two-phase power solution with up to 19.8 Watt output supports the latest NVMe drives.Large heatsink reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability.

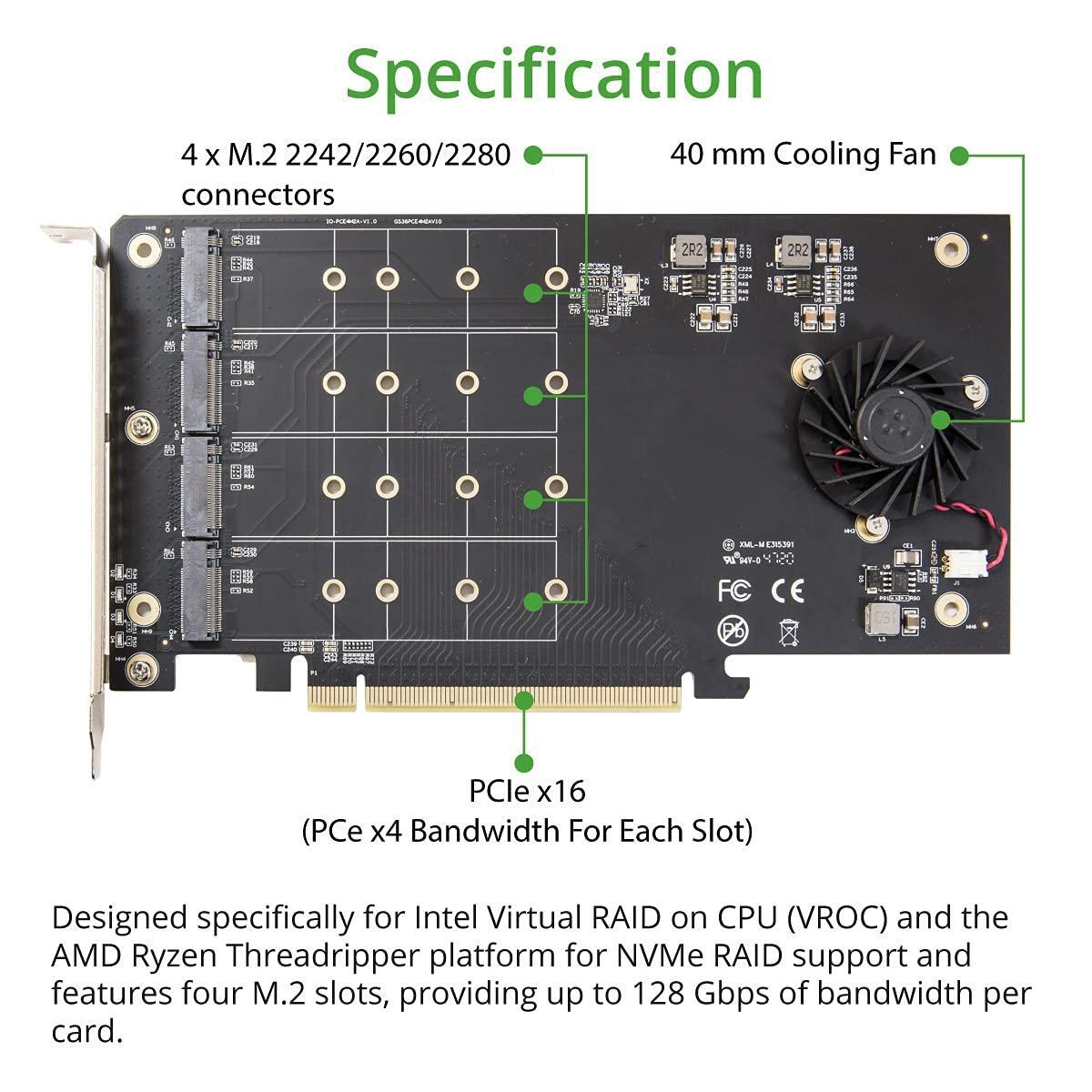

• Large heatsink reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability. Support for up to four PCIe 3.0 M.2 drives with transfer bandwidth up to 128Gbps.
• Supports 2230, 2242, 2260, 2280 size NGFF SSD. Supports four NGFF M.2 M Key socket available,

Binding: Personal Computers

Release Date: 01-04-2021

model number: SI-PEX40161

Part Number: SI-PEX40161

Details: The SI-PEX40161 provides four M.2 slots to let you expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 19.8W of power per drive, as well as a large heatsink and active fan to ensure drives stay cool for optimum performance. Ps. Motherboards and BIOS without bifurcation support can only recognize one module.

EAN: 0857426008758

Package Dimensions: 11.2 x 6.9 x 1.6 inches
