Brand: Tripp Lite
Color: Black
Features:
- 1500VA / 900W UPS: Eight outlets provide (NEMA 5-15R) reliable battery backup & surge protection. Six-foot input power cord (NEMA 5-15P) ensures easy connection to AC outlets. Features 2U rack mount or vertical tower options with included adapter.
- EXTEND RUNTIME WITH EXTERNAL BATTERY PACK: Optional Eaton Tripp Lite BP24V15RT2U external battery pack provides 30 minutes additional runtime at half load (450W) and 11 minutes at full load (900W). External battery pack mounts in 2U rack space.
- 2U RACK MOUNT UPS: Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages to safe 120V without using battery power. Features Modified Sine Wave (PWM) output in battery mode and Sine Wave in AC mode for low total harmonic distortion.
- ADVANCED POWER FEATURES: User-replaceable internal batteries and RJ45 Ethernet port for dataline surge protection up to 100 Mbps. The large rotatable LCD screen monitors operations like voltage, runtime, load, battery, and operating mode
- FULLY SUPPORTED: Protected by a 3-Year Limited Manufacturer's Warranty and a $250,000 Ultimate Connected Equipment insurance. To best support your purchase, Eaton's expert technical team is available via phone, web, or email to address any concerns
Binding: Electronics
Release Date: 01-08-2019
model number: SMART1500LCDXL
Part Number: SMART1500LCDXL

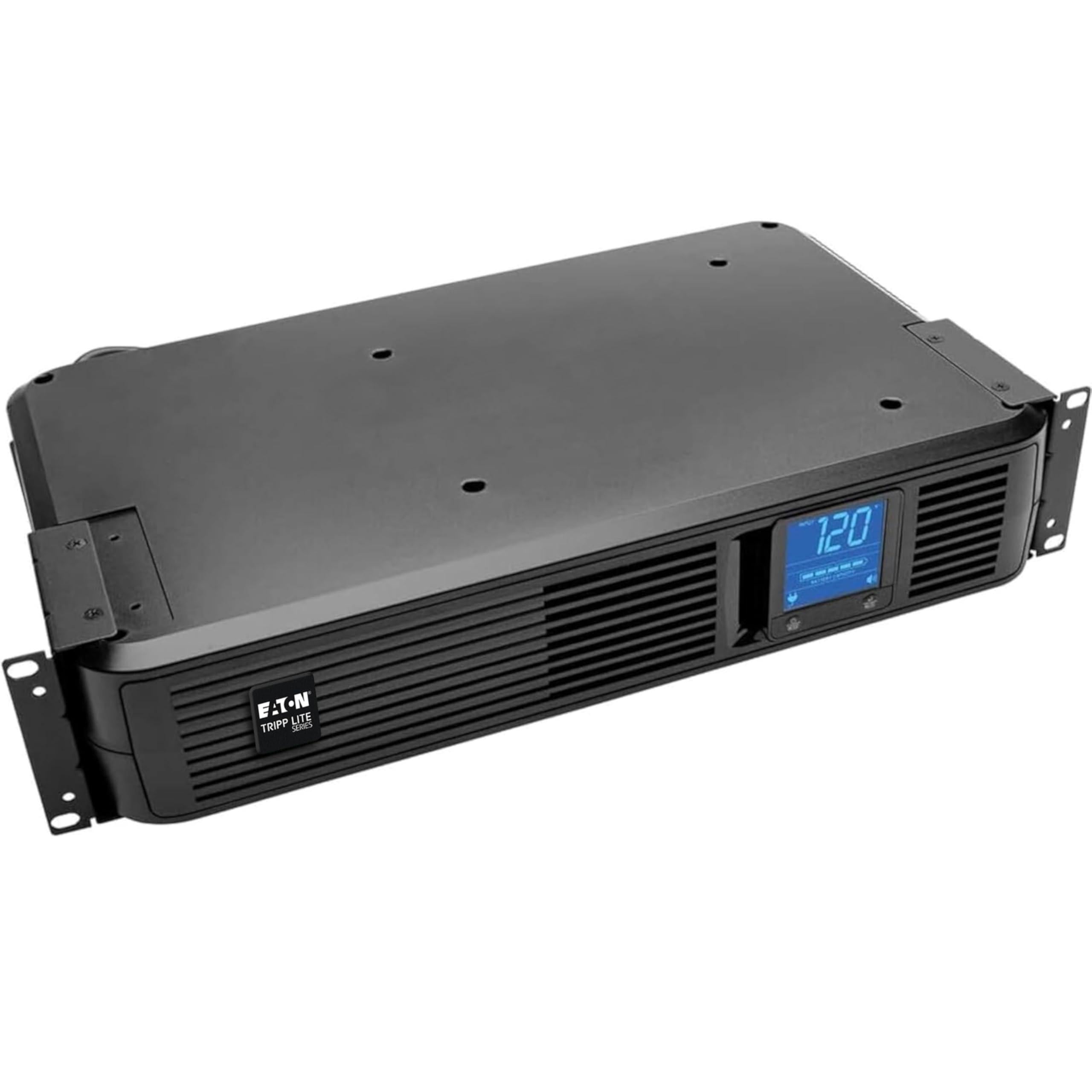

Details: 1500VA / 900W UPS Battery Backup for Networks, Home, or Digital Signage
SMART1500LCDXL line-interactive UPS provides battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise. Large LCD indicates operation details including voltage, runtime, load, battery and operating mode. Internal battery can easily be replaced with Eaton's RBC1500 model replacement battery.
Extend Runtime with External Battery Pack
Eight NEMA 5-15R outlets protect against surges, as well as provide up to 12 minutes of UPS battery support at half-load (450W) and 4.2 minutes of support at full load (900W). Extend battery runtime by connecting an optional BP24V15RT2U external battery pack (sold separately). Additional External Battery Module provides an additional 30 minutes of runtime at half wattage load (450W), and 11 minutes of runtime at full wattage load (900W). Premium Protection Helps Your Equipment Perform Better
AVR protects your equipment from incremental damage. Corrects brownouts as low as 75V and overvoltages as high as 147V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over. UPS system also filters out disruptive electromagnetic and radio frequency interference (EMI/RFI) that can inflict hardware damage or data loss.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a computer running free downloadable PowerAlert® software to enable safe unattended system shutdown a prolonged outage. Cables are included.
Versatile Installation Options
Included hardware enables mounting in 2U of 19-inch rack space or vertical tower installation using the included brackets. The control panel rotates to accommodate both configurations.
EAN: 0037332159885
Package Dimensions: 21.5 x 15.3 x 7.2 inches
Languages: English
