Brand: Supermicro
Features:

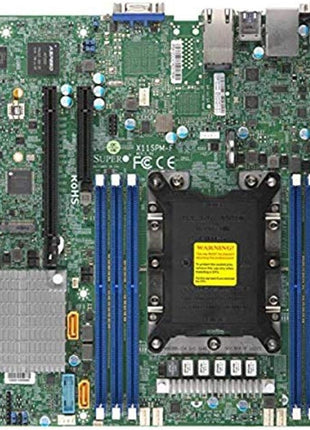

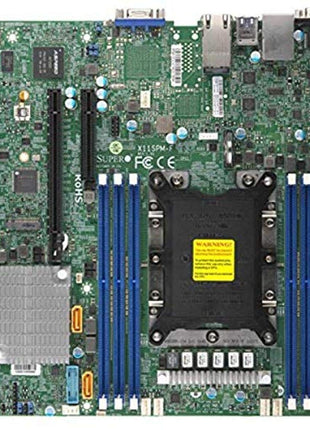

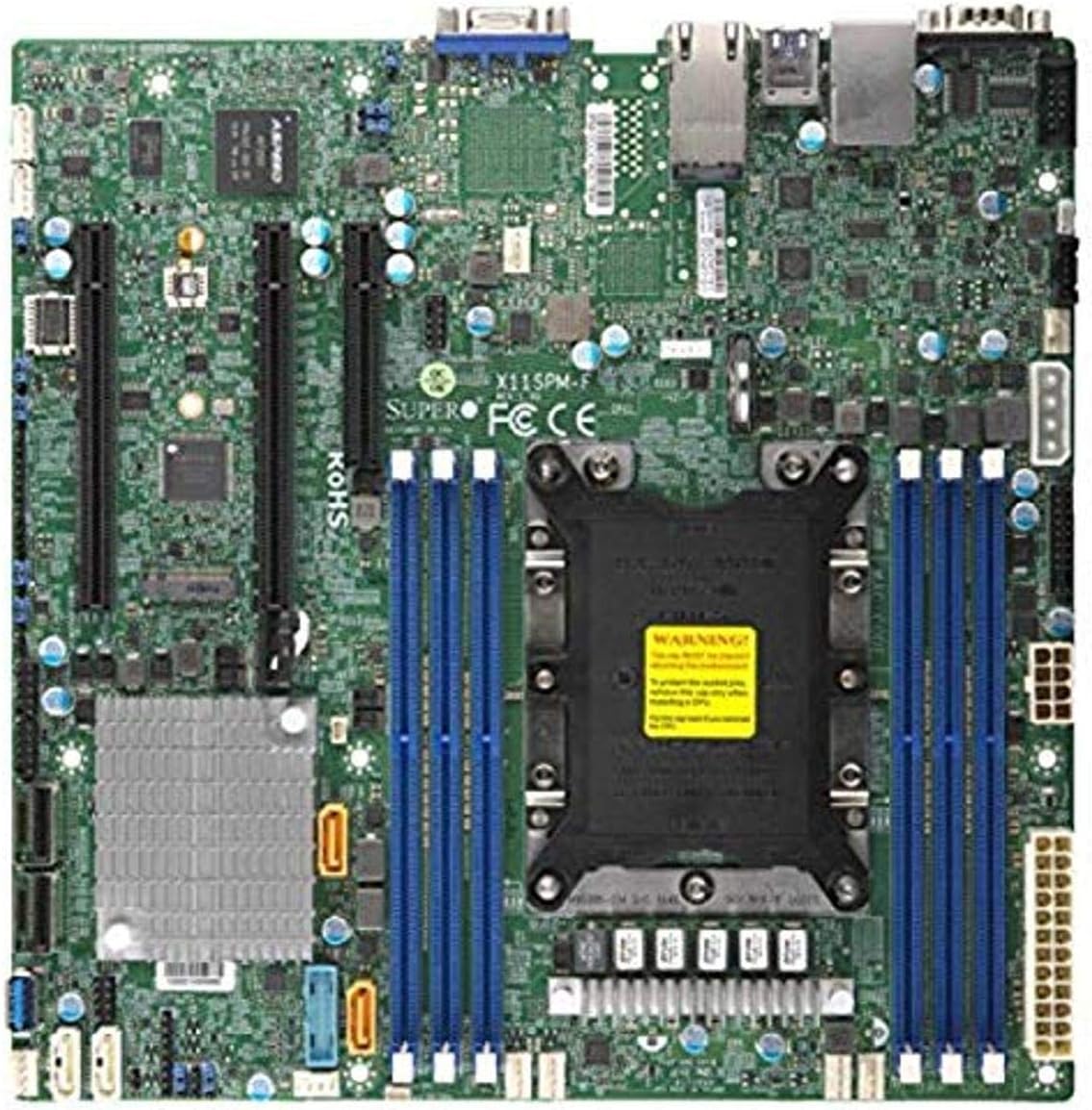

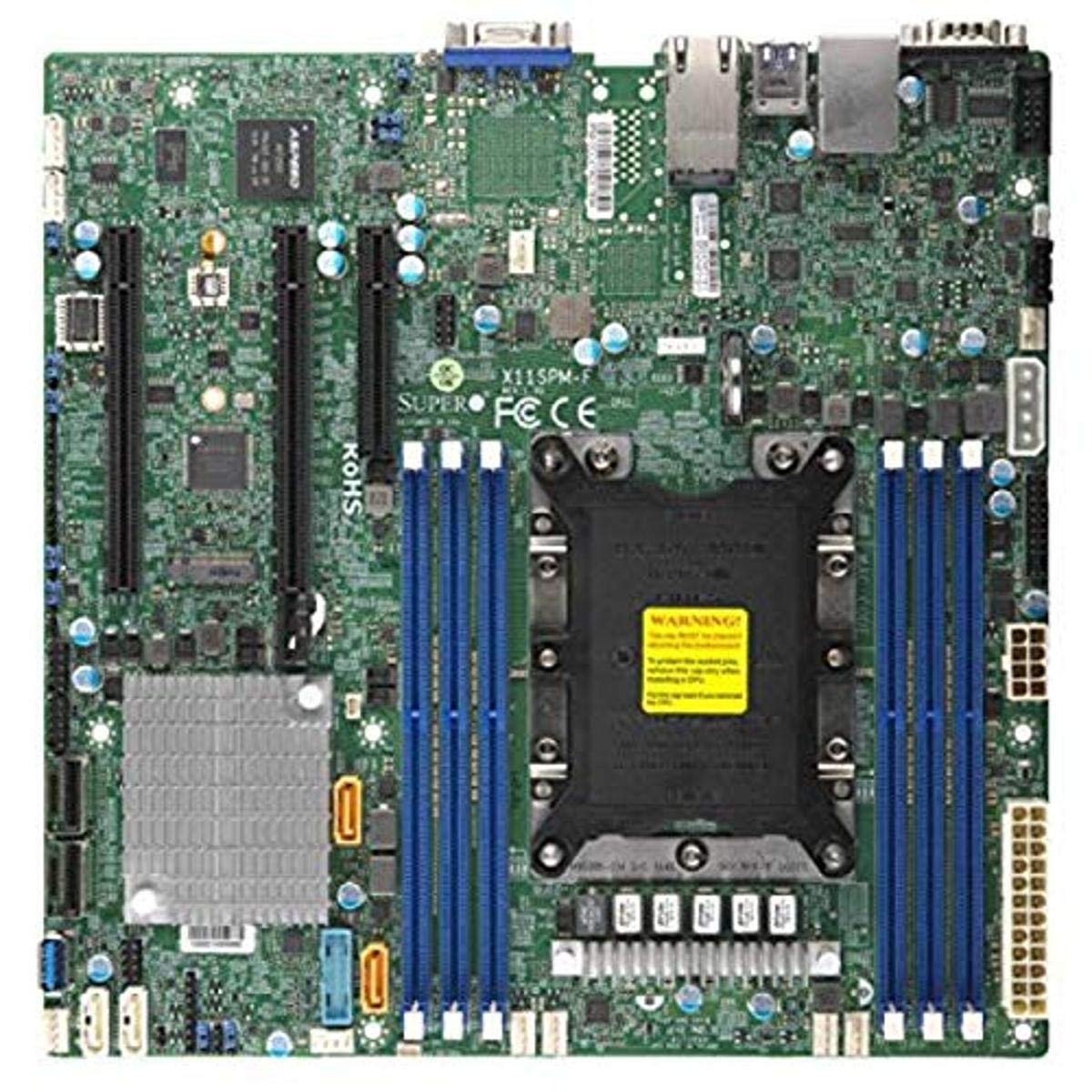

- Super Micro X11SPM-F Motherboard
- Intel C621 Chipset
- Expansion slots: 2 PCI-E 3. 0 x16, 1 PCI-E 3. 0 x8 (in x8)
- 2 Gbe LAN ports
- 12 SATA3 (6Gbps) via C621
Binding: Personal Computers
Release Date: 19-09-2019
model number: MBD-X11SPM-F-O
Part Number: MBD-X11SPM-F-O
Details: Specifications Mfg Part Number: X11SPM-F-O CPU: Single Socket P LGA 3647 Support Intel Xeon Scalable Processors CPU TDP support 165W Up to 28 cores Chipset: Intel C621 Memory: 6x 288-pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz ECC DIMM Slots, Support up to 768GB ECC 3DS Load Reduced Memory or 384GB ECC Load Reduced Memory or up to 192GB ECC REG Memory Slots: 2x PCI-Express 3. 0 x16 Slots, 1x PCI-Express 3. 0 x8 Slot SATA: 12x SATA3 Ports, Support RAID 0, 1, 5, 10 Video: Speed AST2500 BMC Graphics LAN: Marvell 88E1512 Dual LAN Gigabit Ethernet Controller Ports: 5x USB 3. 0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2. 0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 LAN Ports Form Factor: MicroVAX, 9. 6 x 9. 6 inch / 24. 38 x 24. 38 cm RoHS Compliant
EAN: 0672042282593
Package Dimensions: 10.8 x 4.4 x 2.1 inches
Languages: English
