Brand: Supermicro

Features:

• Memory clock speed: 5200.0 MHz

Binding: Personal Computers

model number: H13SAE-MF

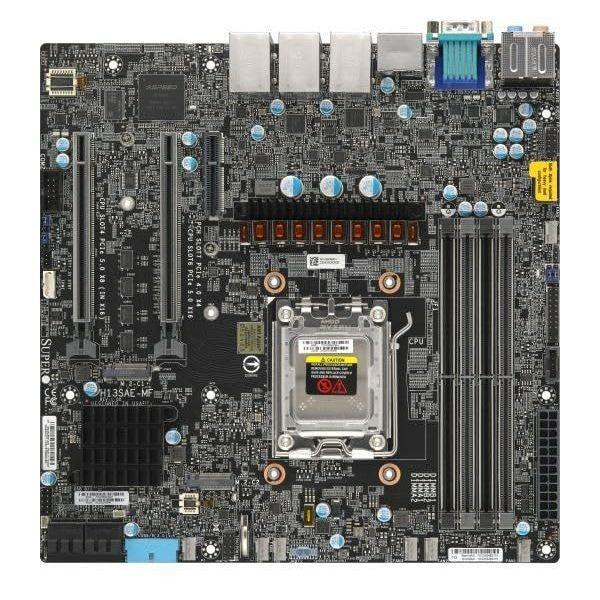

Details: H13SAE-MF Server Board, mATX, AM5, 4 DIMM, B650, 2x GbE, 4x SATA3, 2x PCIe 5.0 x16 (16/NA or 8/8), 1x PCIe 4.0 x4, 2x PCIe 5.0 M.2 2280/22110, IPMIH13SAE-MF- AMD Ryzen 7000 series Processors, single socket LGA-1718 (socket AM5) supported- TDP supports up to 170W.- Up to 192GB ECC/non-ECC Unbuffered DIMM, DDR5-5200MHz, in 4 DIMM slots.- 2 PCIe 5.0 x16 (16/NA or 8/8), support up to 2 GPU cards(mechanical is up to 1 triple-width GPU card or 2 double-width GPU cards)- 1 PCIe 4.0 x4- 2x 1Gbit LAN port(i210 AT); a dedicated Realtek 1Gbit LAN for IPMI.- Micro-ATX form factor- 1 USB 3.2 Gen2x2 ports (type C, 20Gb, rear); 5 USB 3.2 Gen2 ports(2 Type C, rear, support DP 1.4 Alt mode)- 1 HDMI 2.0 port, 1 DP 1.4a port- M.2 Interface: 2 PCIe 5.0 x4 (RAID 0 & 1)- M.2 Form Factor: 2280/22110- M.2 Key: M-KeyPhysical StatsForm Factor Micro-ATXDimension 9.6 inch x 9.6 inch (24.384cm x 24.384cm)ProcessorCPU AMD Ryzen 7000 series ProcessorsSingle Socket LGA-1718 (Socket AM5) supported, CPU TDP supports Up to 170W TDPCore Up to 16 cores, 32 threadsSystem MemoryMemory Capacity 4 DIMM slotsMemory Type 5200/4800/3600 MT/s Up to 192GB of memory with speeds of up to 5200MT/s (1DPC)/ 3600MT/s (2DPC)DIMM Sizes 8GB, 16GB, 24GB, 32GB, 48GBMemory Voltage 1

EAN: 0672042893737

Package Dimensions: 15.0 x 12.0 x 4.0 inches
