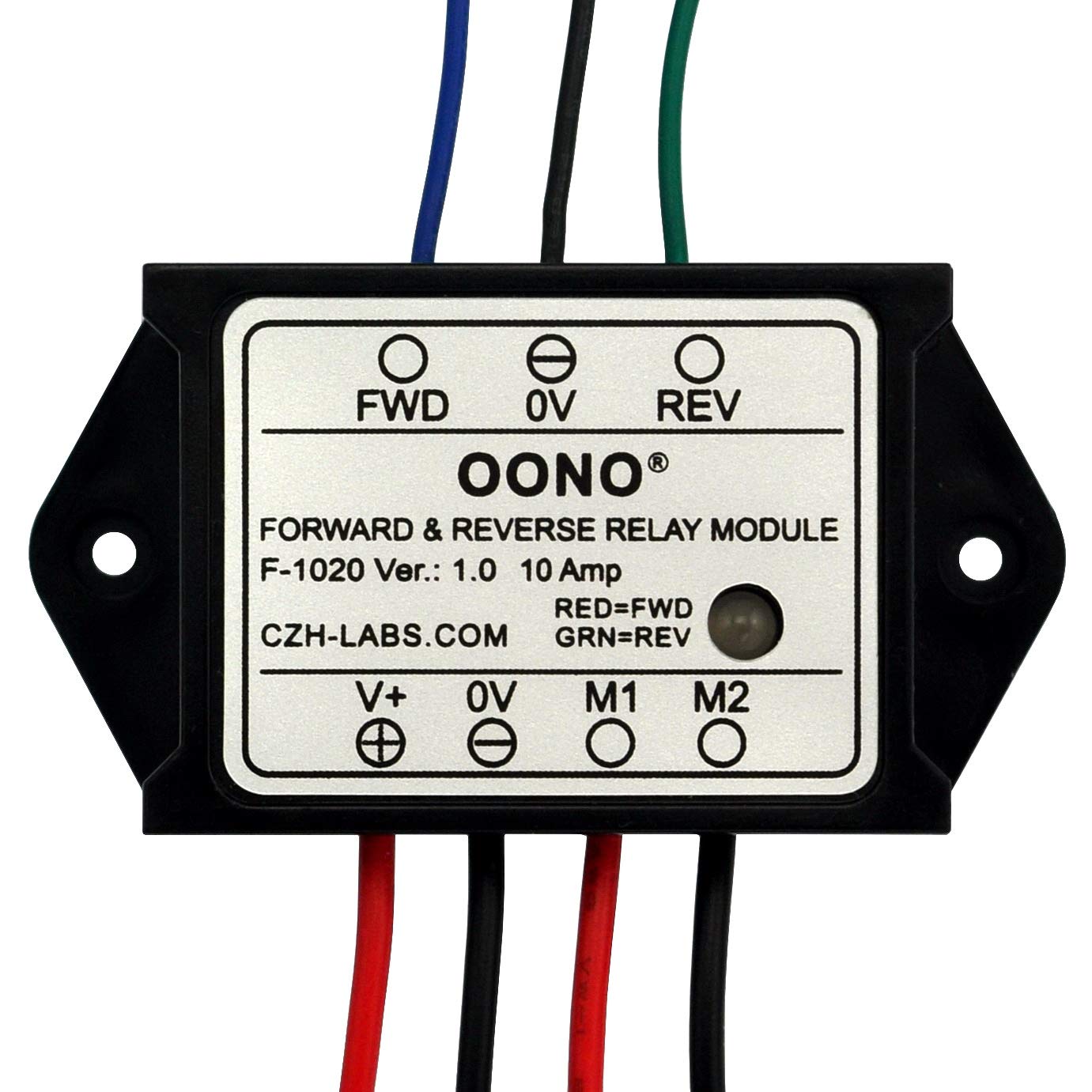

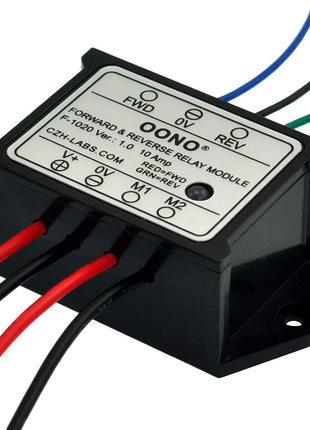

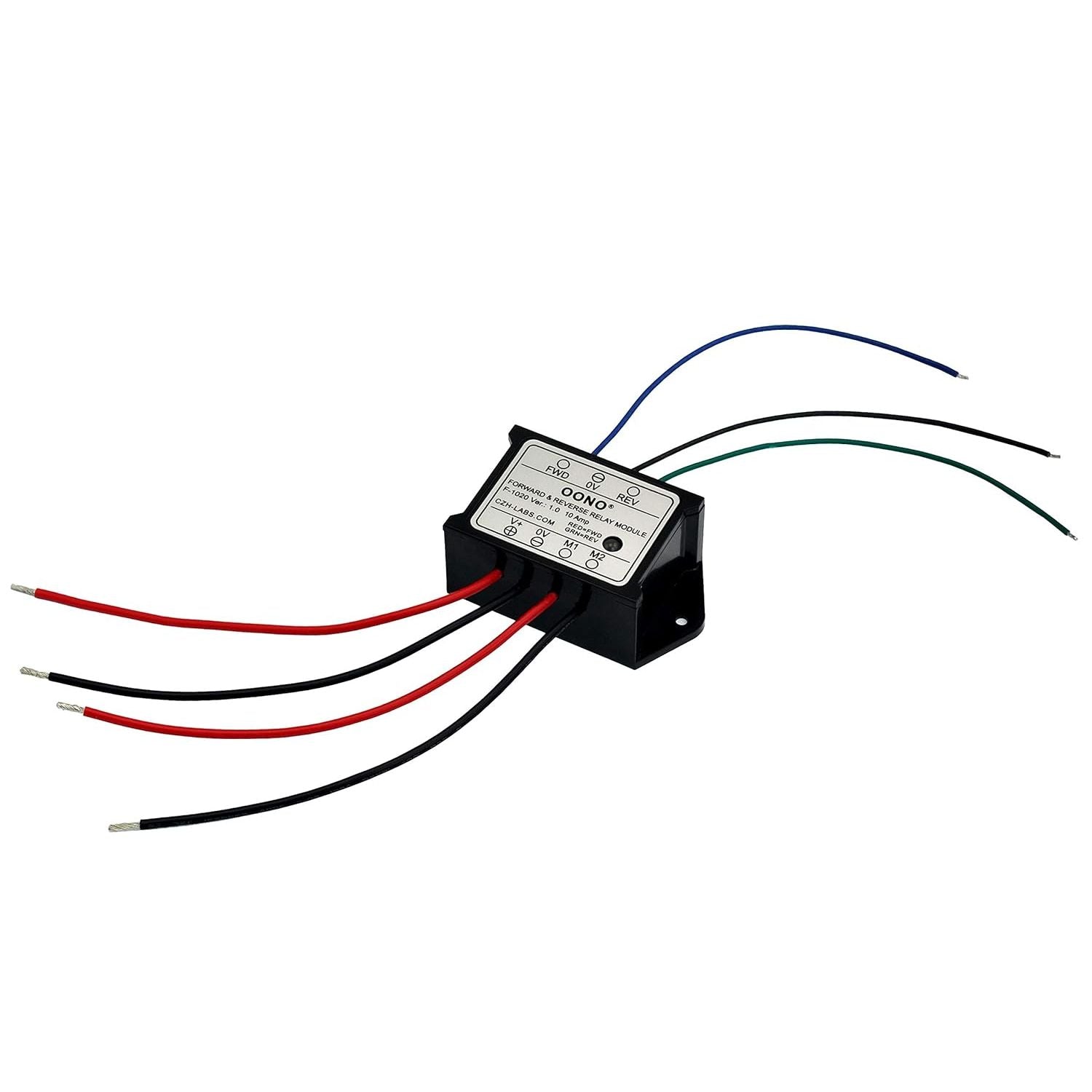

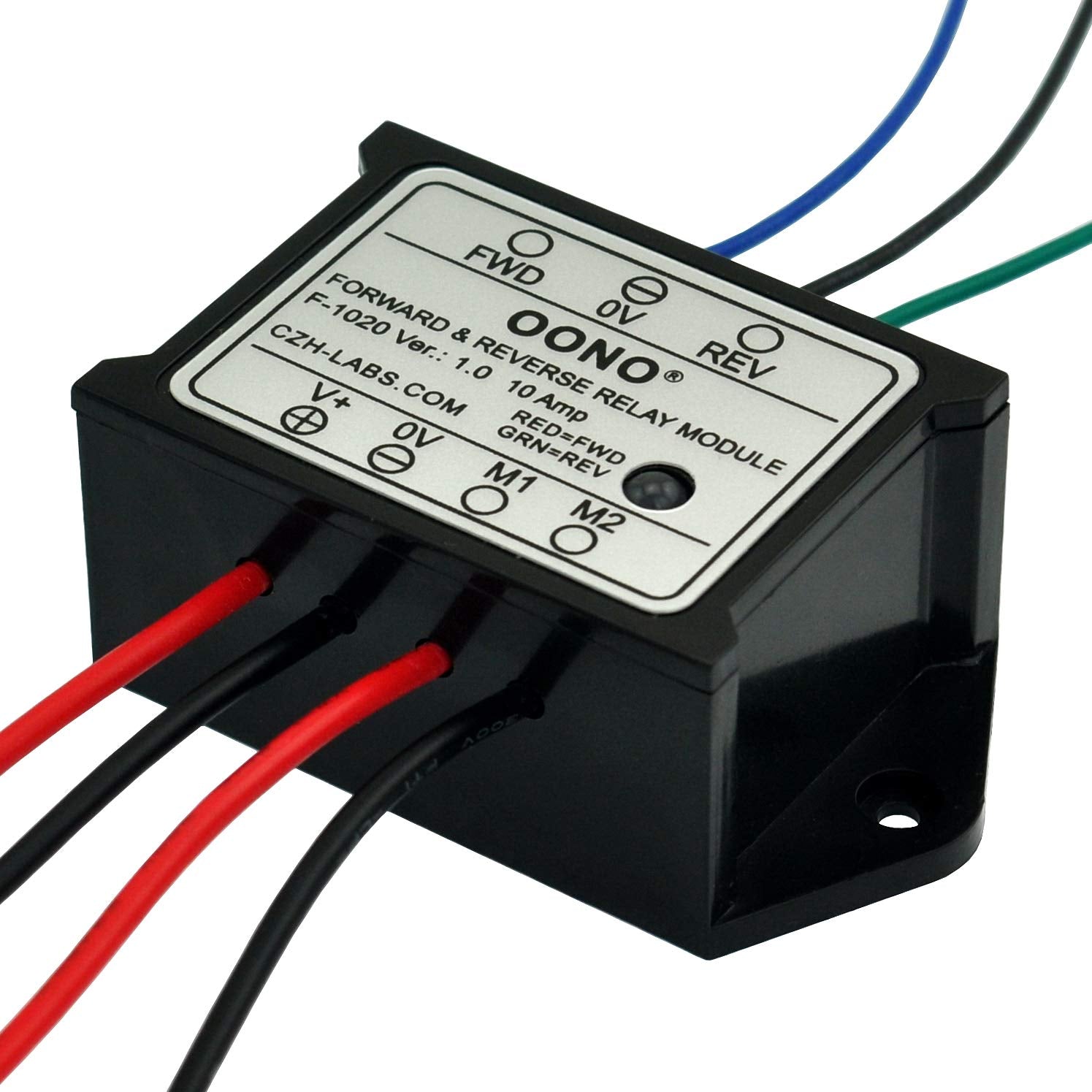

OONO Forward and Reverse Relay Module for Motor/Linear Actuator, Reversing Relay Module (DC 12V) ^Sale

Brand: OONO

Features:

• Reversing relay module. Powers any reversing motor equipment, can be used for any application that requires the ability to reverse motion

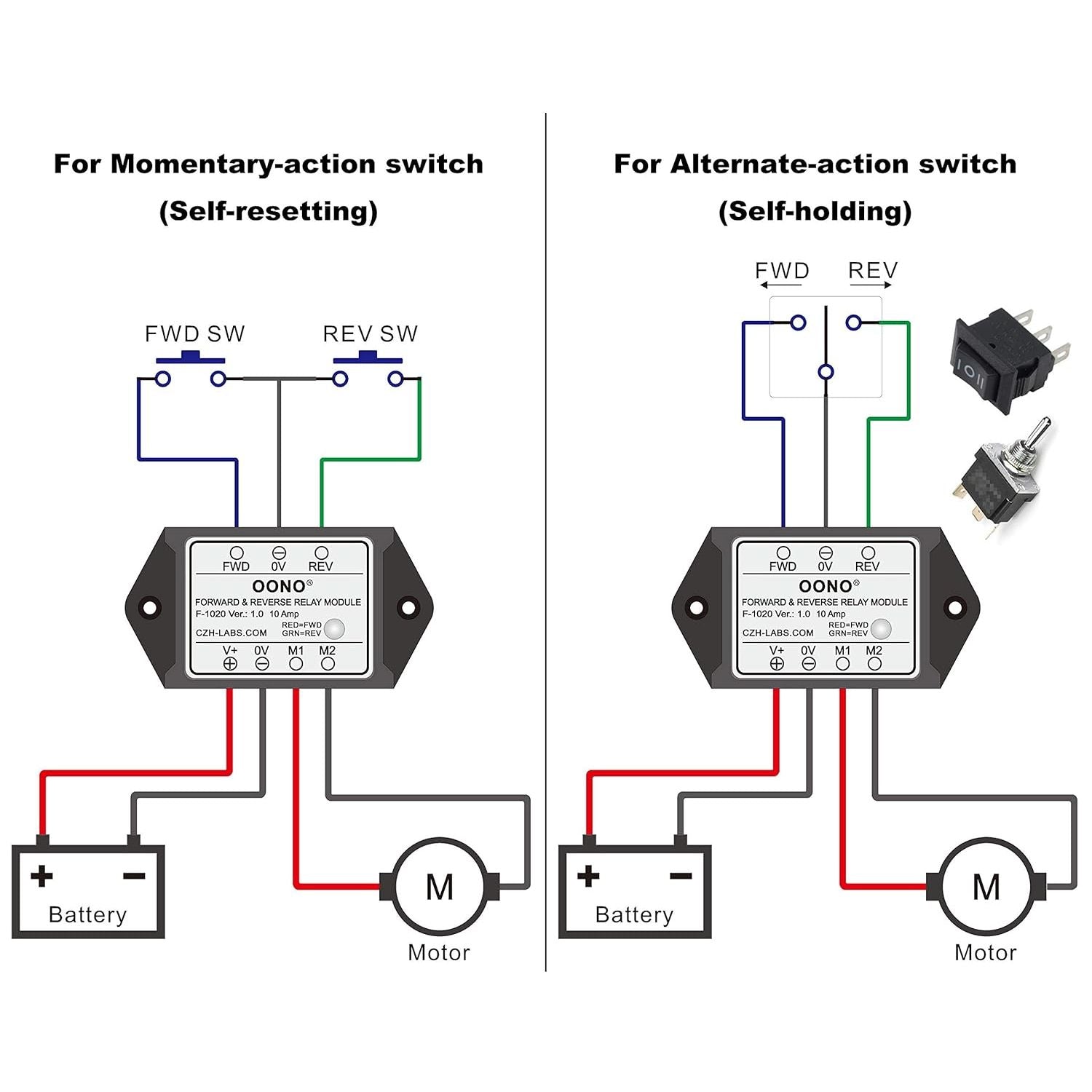

• Support Momentary-action(Self-resetting) switch and Alternate-action (Self-holding) switch. For Self-resetting switch, when the switch is pressed the motor operates, and when the switch is released the motor stops.
• Compact plastic case and wires connect for easy mount.

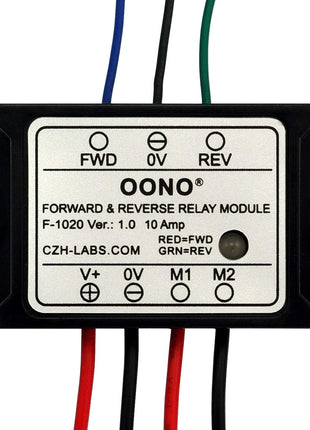

• Forward and Reverse status indicating LED, forward status lighting red, reverse lighting green. When the control switch is not turned on, the module does not consume electric energy.
• Rated current 10 Amp, Operating Voltage: 10 ~ 15V DC.

model number: F-1020

Part Number: F-1020

EAN: 6954525590918

Package Dimensions: 3.6 x 2.2 x 1.3 inches
