Brand: StarTech
Color: Black
Features:

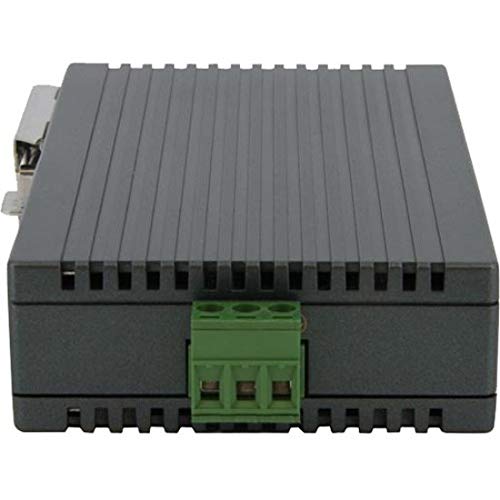

- INDUSTRIAL DESIGN: This 5-port 10/100Mbps switch is engineered to deliver fast, reliable connectivity in demanding industrial environments. It has a wide-range 12-48V DC terminal block input.
- INCREASED PRODUCTIVITY: Designed with a rugged IP30-rated housing, the industrial grade networking solution delivers has a surge protection of ESD: EN61000-4-2 and Surge: EN61000-4-5.

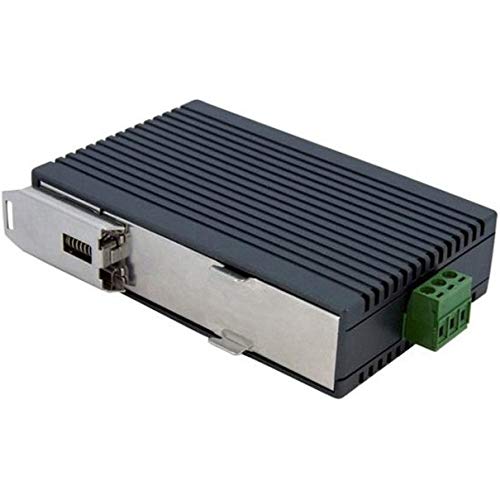

- SIMPLE INSTALLATION: This 5-port unmanaged fast ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on racks and cabinets. It requires little to no configuration.
- COST-EFFECTIVE SOLUTION: With lower overall power consumption, the DIN rail mount ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
Binding: Personal Computers
Release Date: 02-03-2015
model number: IES5102
Part Number: IES5102

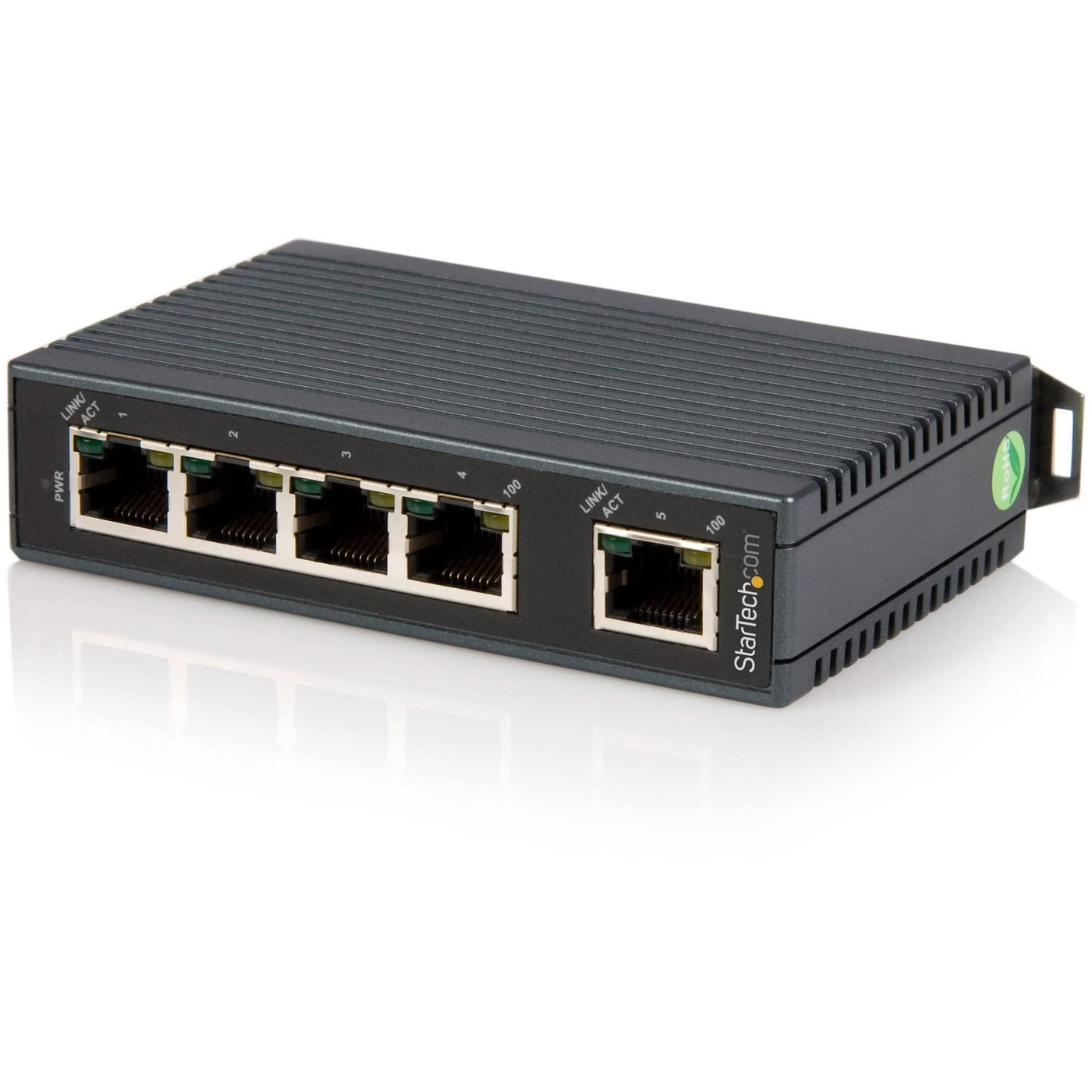

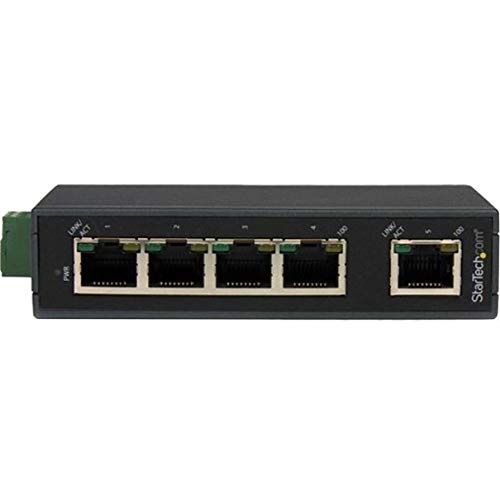

Details: Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch Wide-range 12-48V DC terminal block input Easy installation with an integrated DIN rail bracket Wider range of operating temperatures, ideal for industrial environments IEEE 802.3az Energy-Efficient Ethernet Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation Supports IEEE 802.3x flow control and back pressure Store-and-forward switching mechanism This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses. Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly. This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required. With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs. The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support. Well suited for networks in demanding industrial applications such as warehouses and factories A great way to enhance network connectivity, adding small workgroups to an existing network Install in a server rack or cabinet in a network room or test lab environment Specifications Warranty Information Warranty 2 Years Auto-Negotiation Yes Connector(s) 5 - External Ports RJ-45 1 - External Ports Terminal Block (3 Wire) Environmental Operating Temperature -10°C to 60°C (14°F to 140°F) Storage Temperature -25°C to 85°C (-13°F to 185°F) Humidity 5~95% RH (Non-Condensing) Hardware Ports 5 Interface RJ45 (10/100 Ethernet) Regulatory Approvals EN61000-6-2 EN61000-6-4 EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) IEC60068-2-6 Fc (Vibration) IEC60068-2-27 Ea (Shock) Industry Standards IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX) IEEE 802.3az (Energy-Efficient Ethernet) IEEE 802.1P Quality of Service (QoS) Indicators 1 - LED Indicators Power 5 - LED Indicators Link/Activity Activity (100 Mbps) Packaging Information Package Height 3,1 in [79 mm] Package Length 7,8 in [19,8 cm] Shipping (Package) Weight 11,0 oz [312 g] Package Width 7,0 in [17,8 cm] Performance Maximum Data Transfer Rate 200 Mbps (Full-Duplex) Maximum Cable Length 328,0 ft [100 m] Buffer Size 56 KB Flow Control IEEE 802.3x Full-Duplex Surge Protection ESD: EN61000-4-2 Surge: EN61000-4-5 Compatible Networks 10/100 Mbps Auto MDIX Yes Full Duplex Support Yes Jumbo Frame Support No Switching Architecture Store-and-Forward MTBF 1,179,133 Hours Physical Characteristics Weight of Product 5,3 oz [150 g] Color Black Material Plastic Product Length 2,8 in [70 mm] Product Width 1,0 in [25 mm] Product Height 4,3 in [11 cm] Power Power Source Terminal Block Input Voltage 12 ~ 48 DC Power Consumption (In Watts) 2.12W Max Software OS Compatibility OS Independent; No additional drivers or software required What's in the Box 1 - Included in Package 5 Port Ethernet Switch (w/ Attached DIN Rail Bracket) Terminal Block Instruction Manual CD
EAN: 0065030859745
Package Dimensions: 7.8 x 7.0 x 3.1 inches
Languages: English, French
