Brand: StarTech
Color: Black
Features:

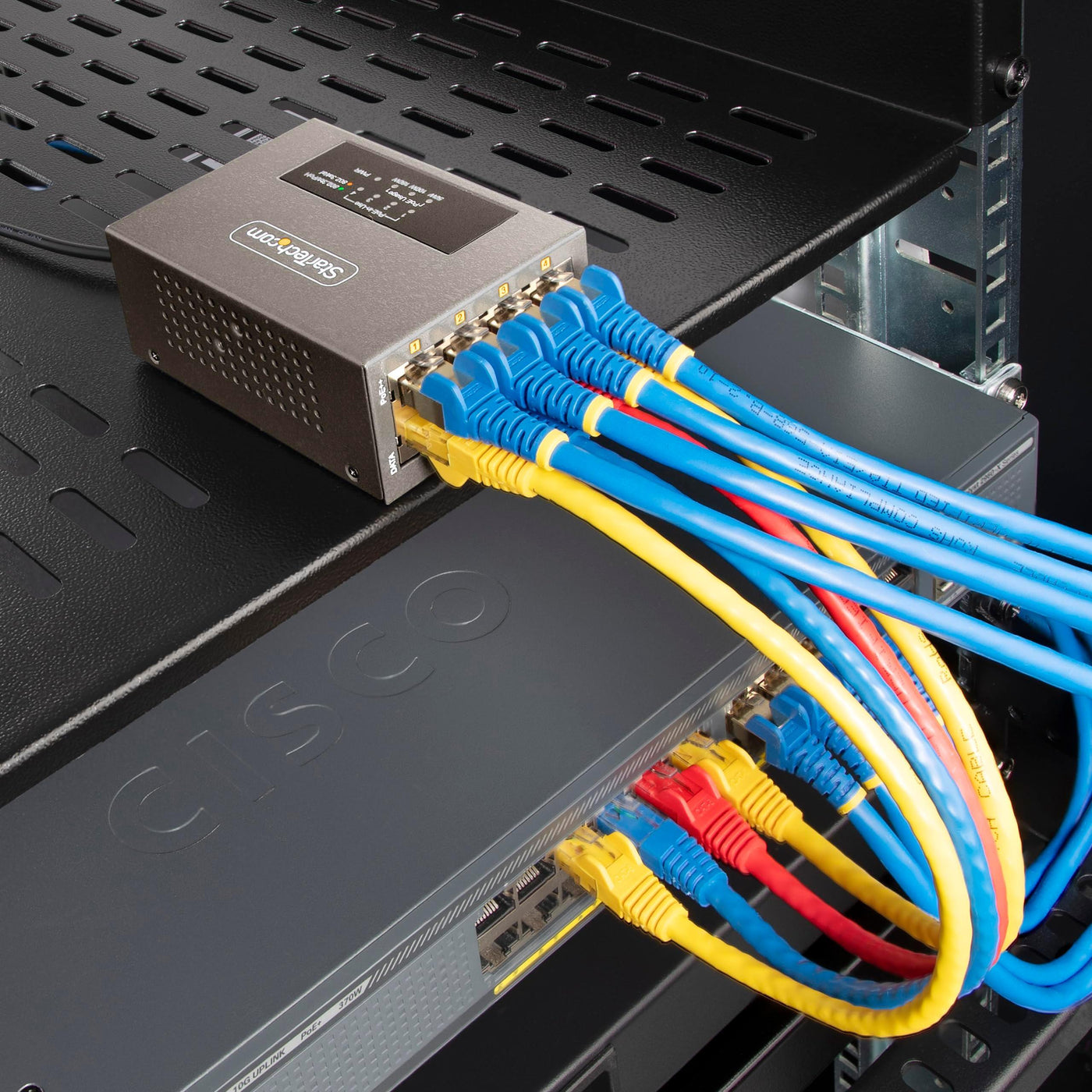

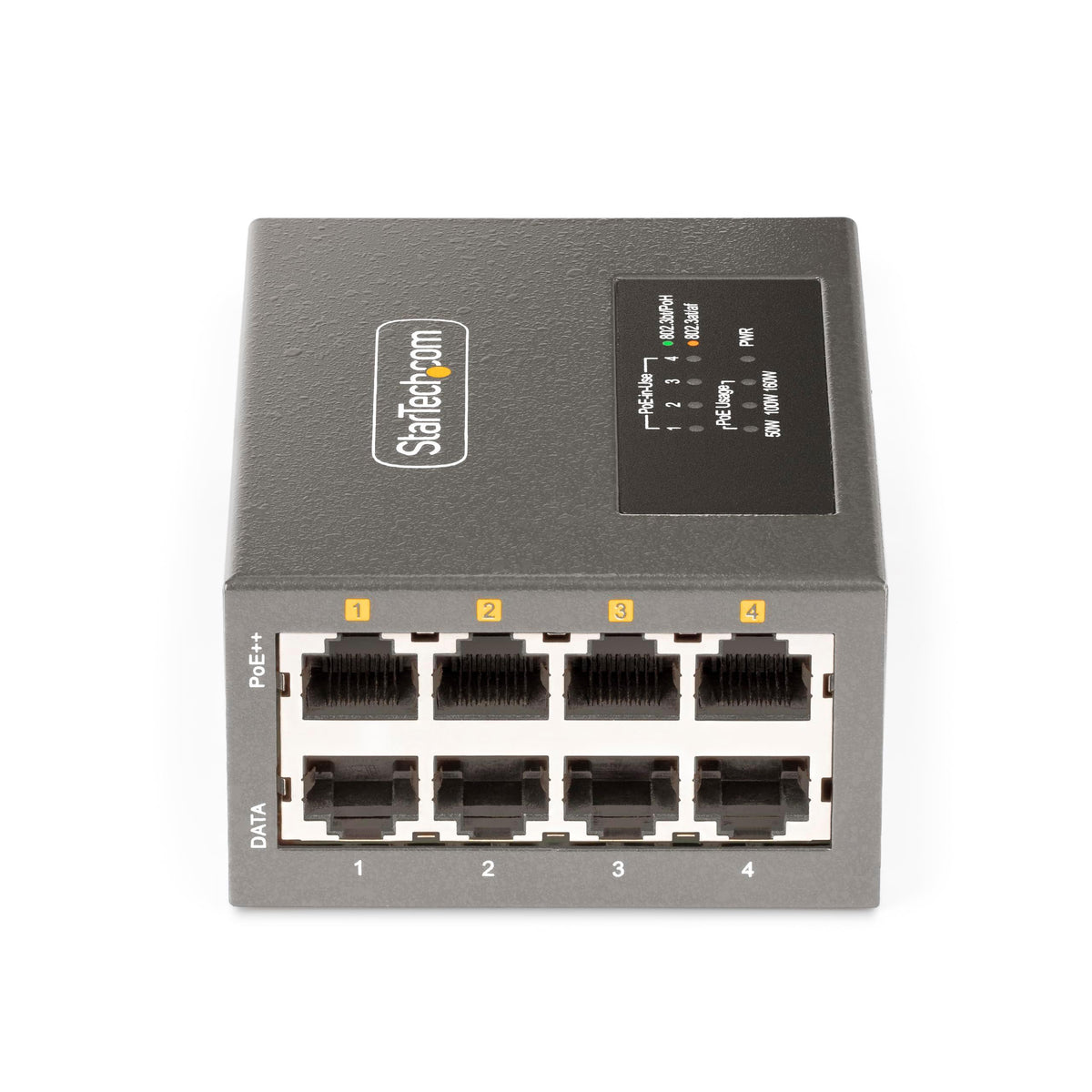

- 4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE++ injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE+/PoE++ 95W max; Level-4 ESD protection

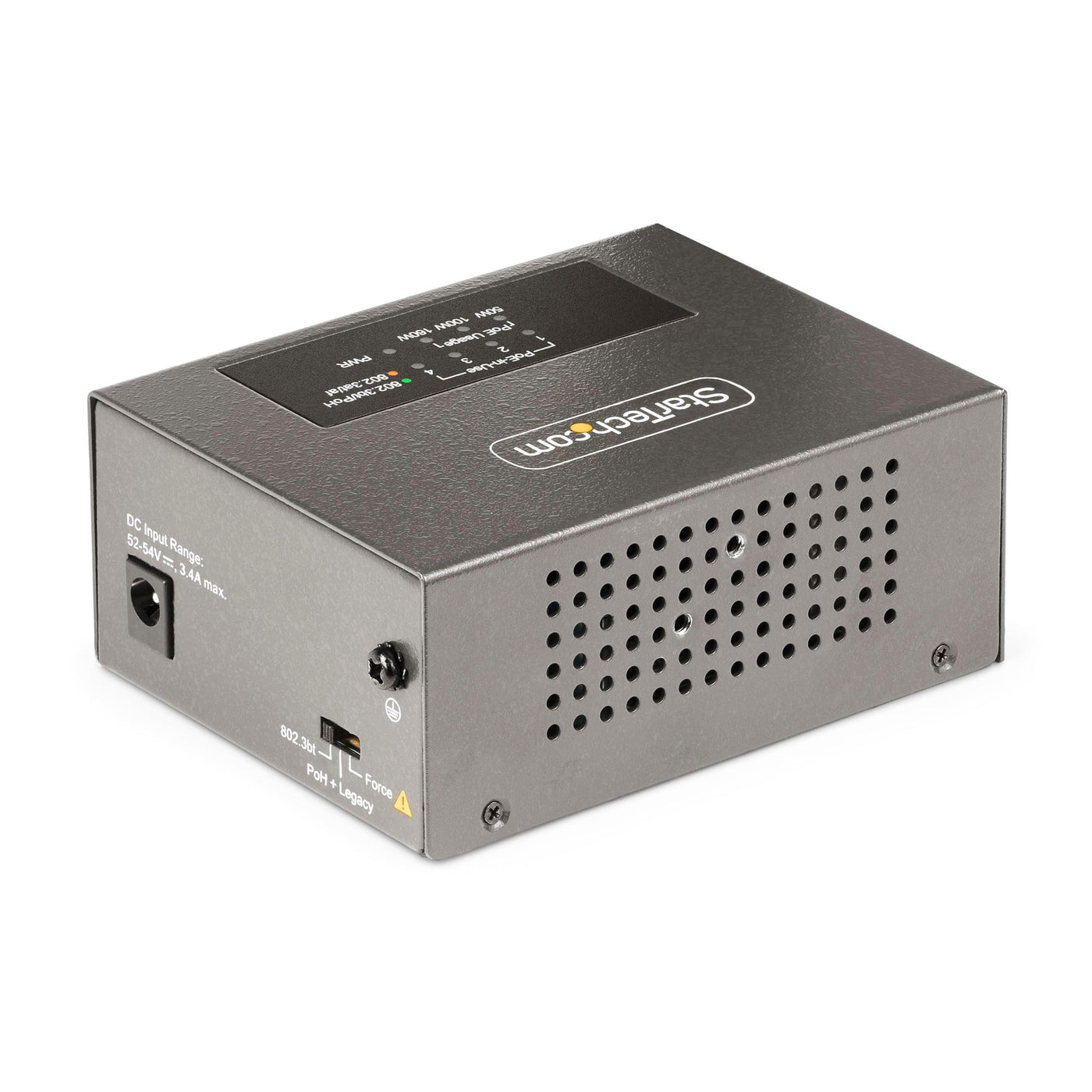

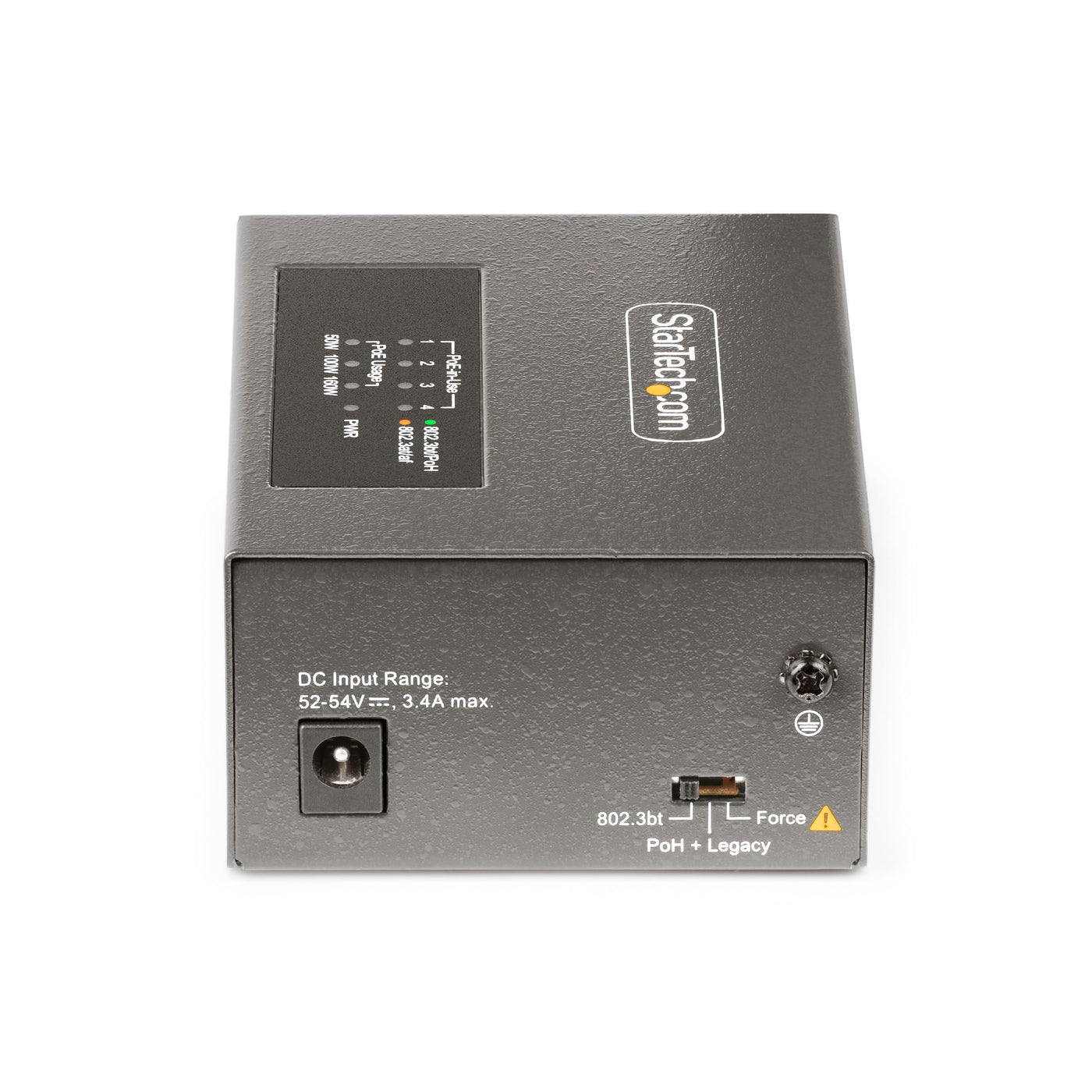

- SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power modes available on all ports; Total power budget of 160 Watts
- MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/2.5GBASE-T compatible; Provide data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment

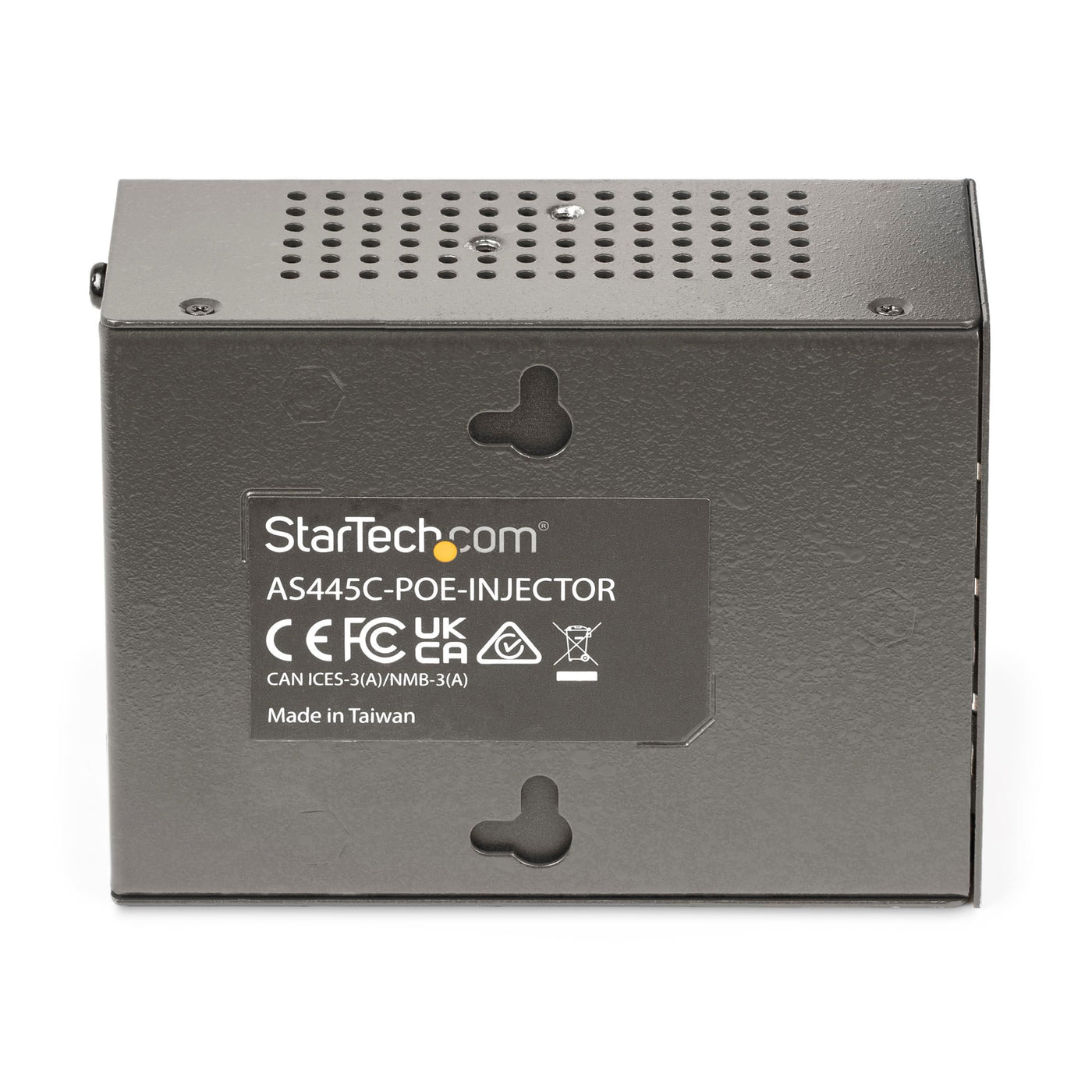

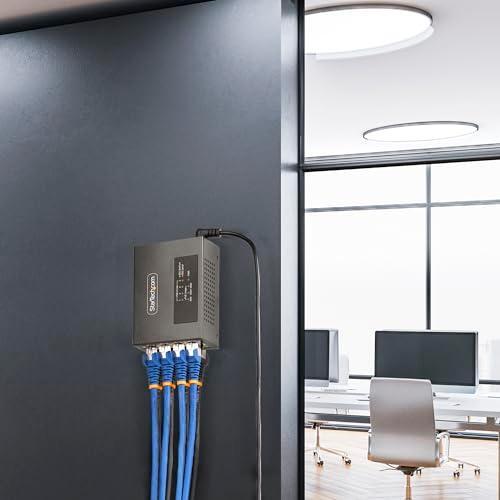

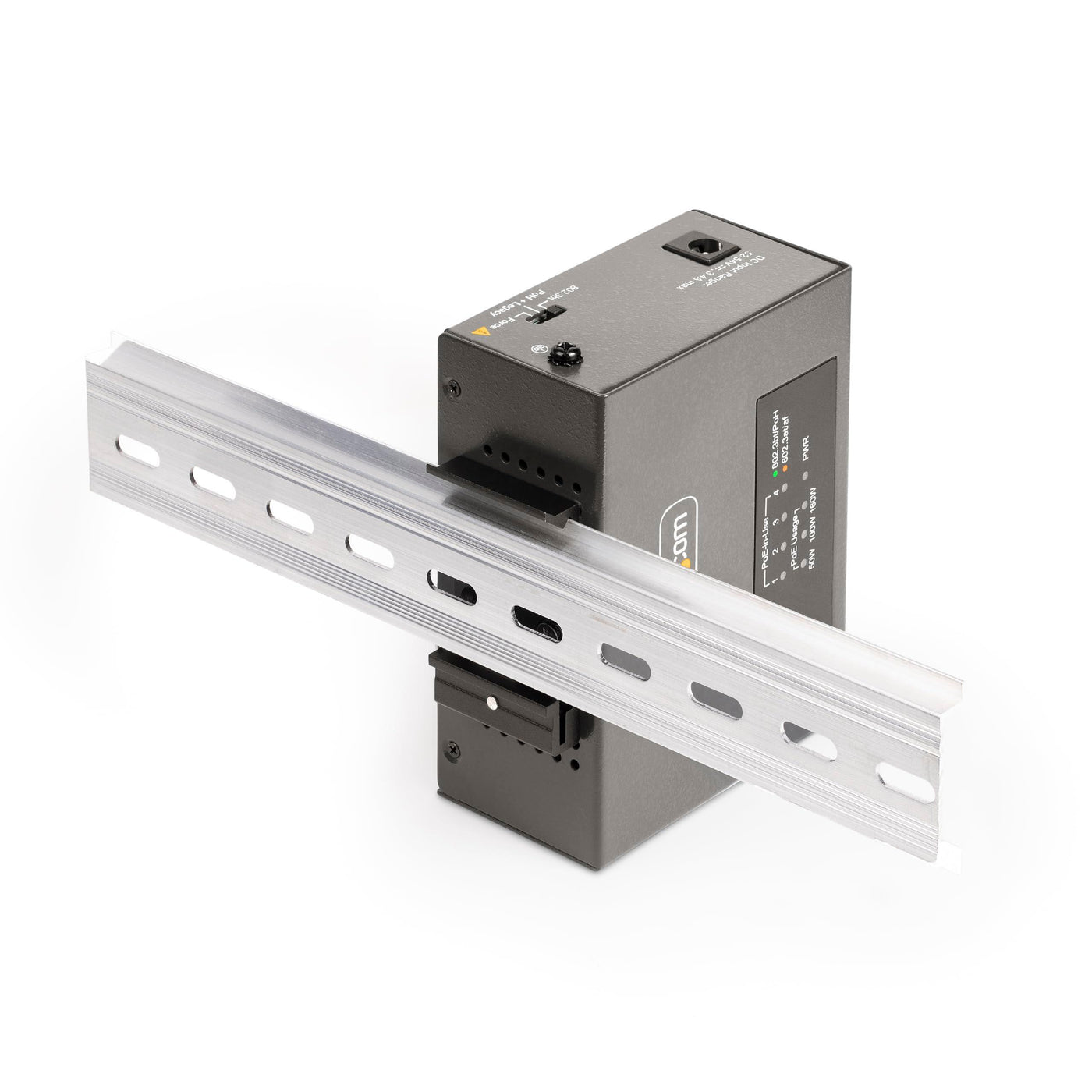

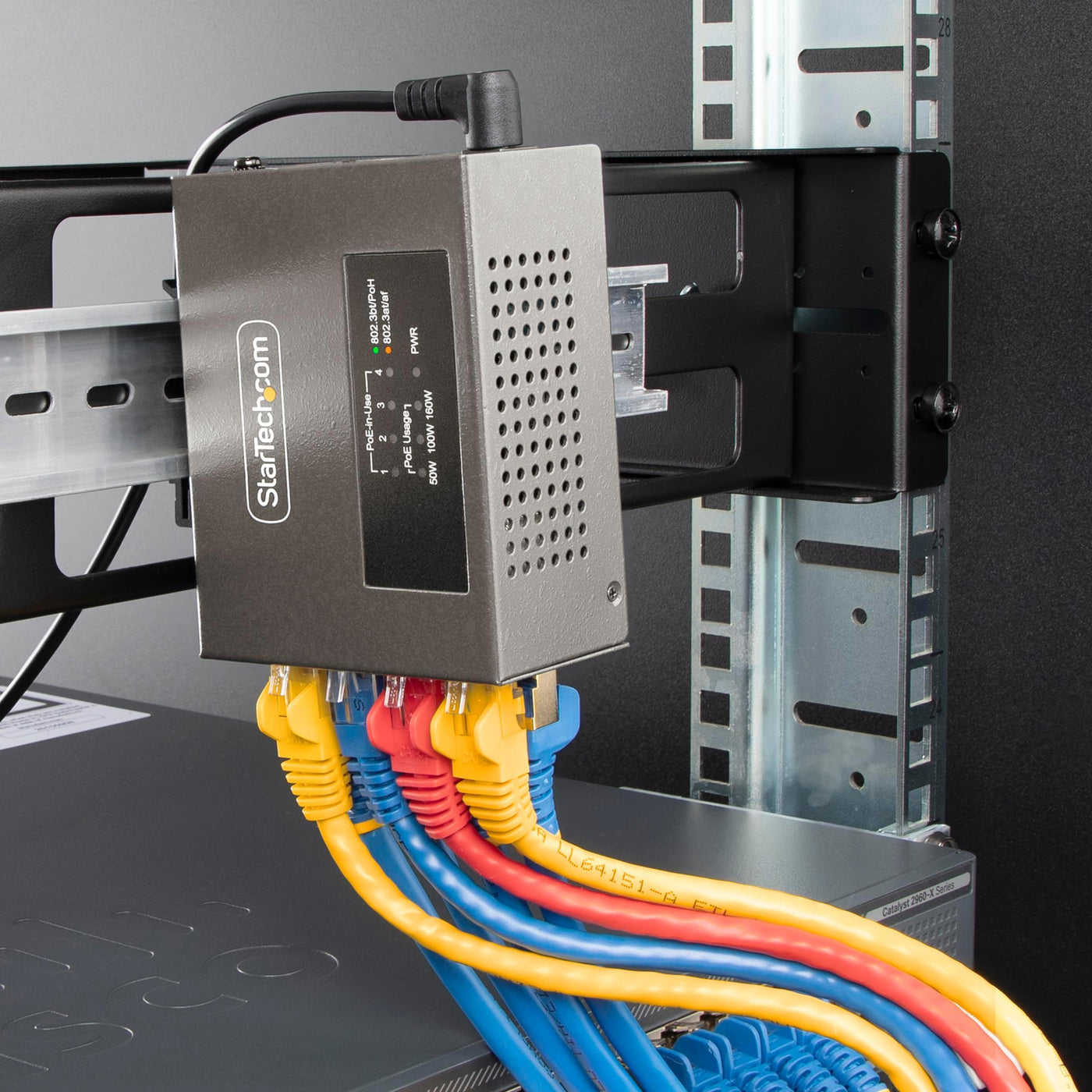

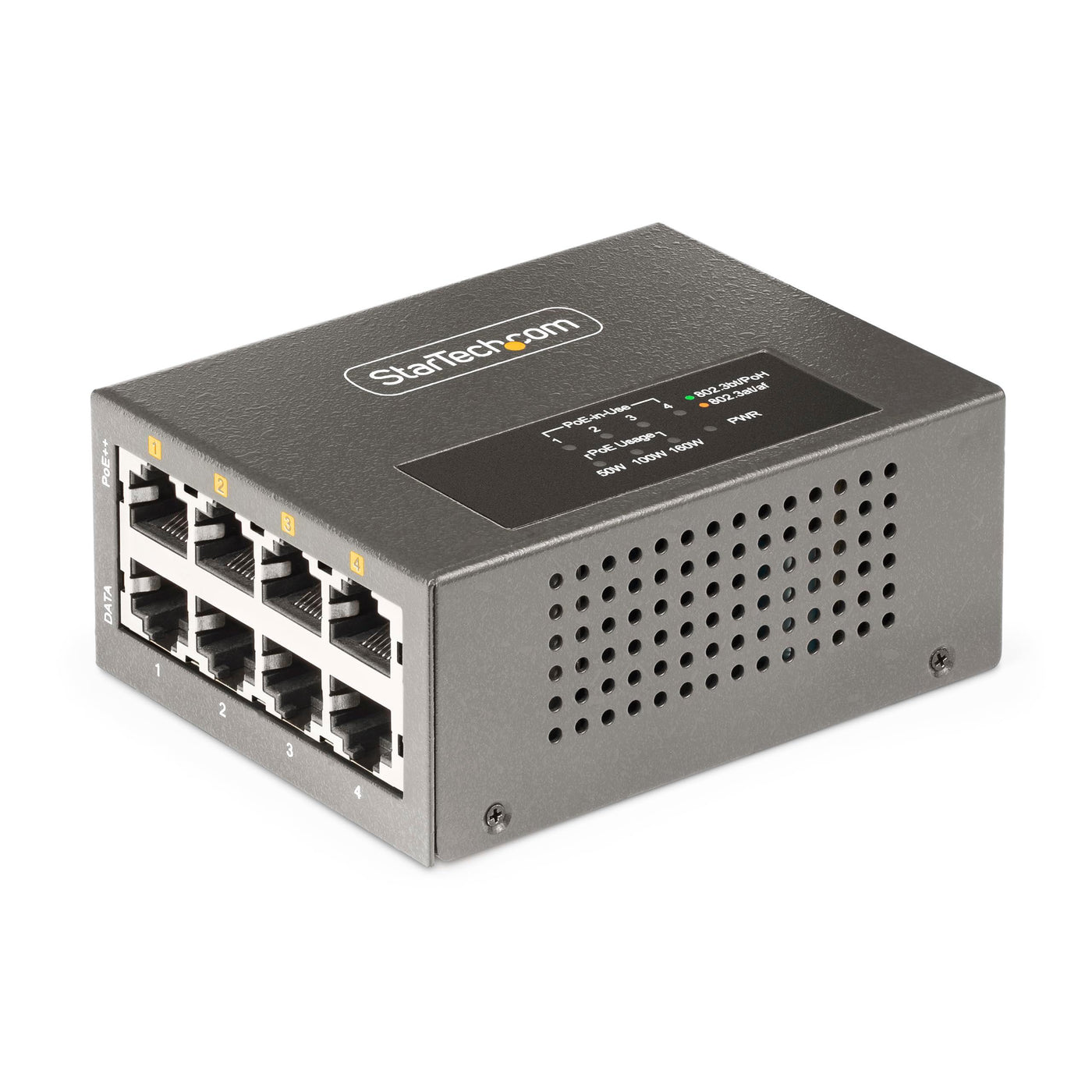

- RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers isolate the input/output data, and a power circuit prevents interference between ports

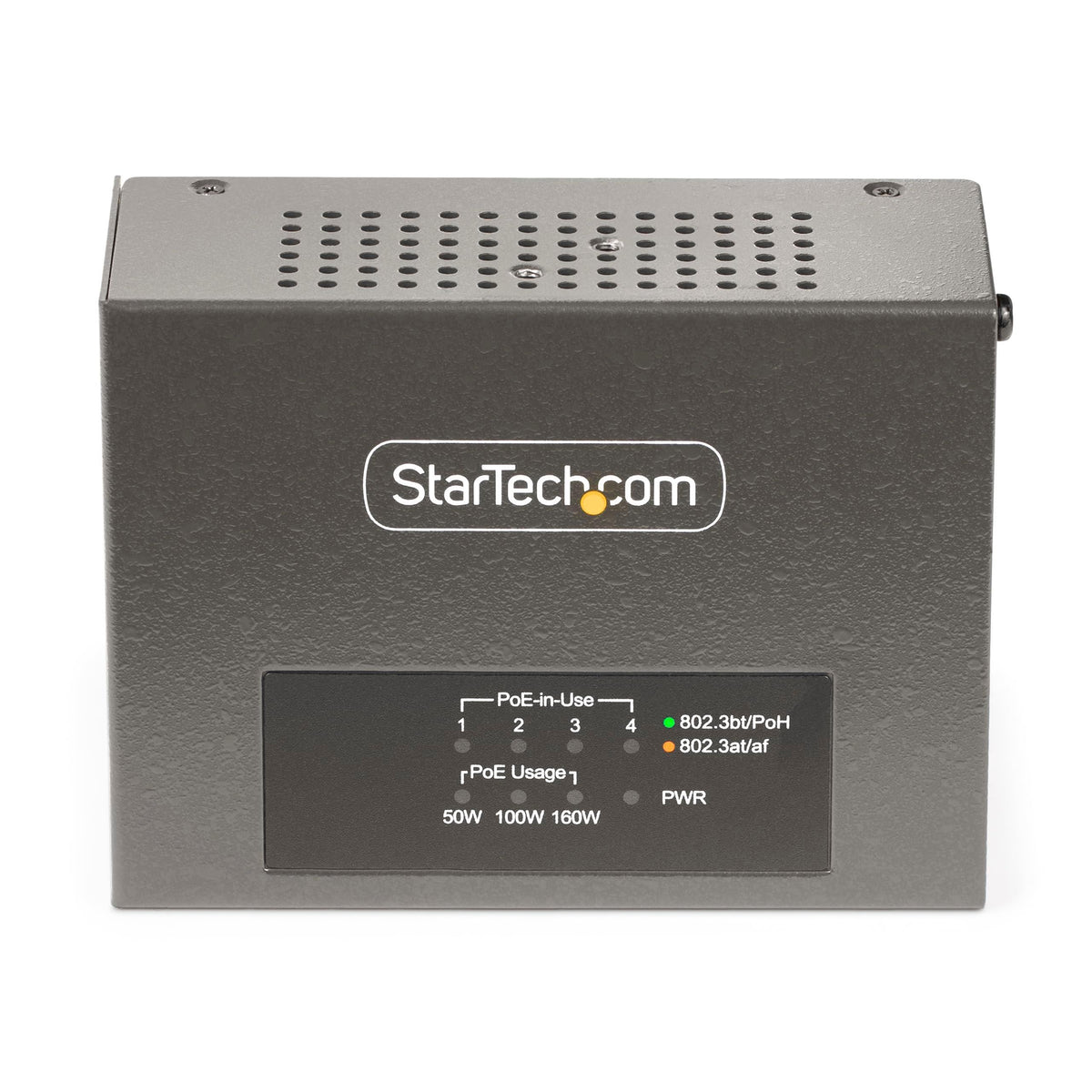

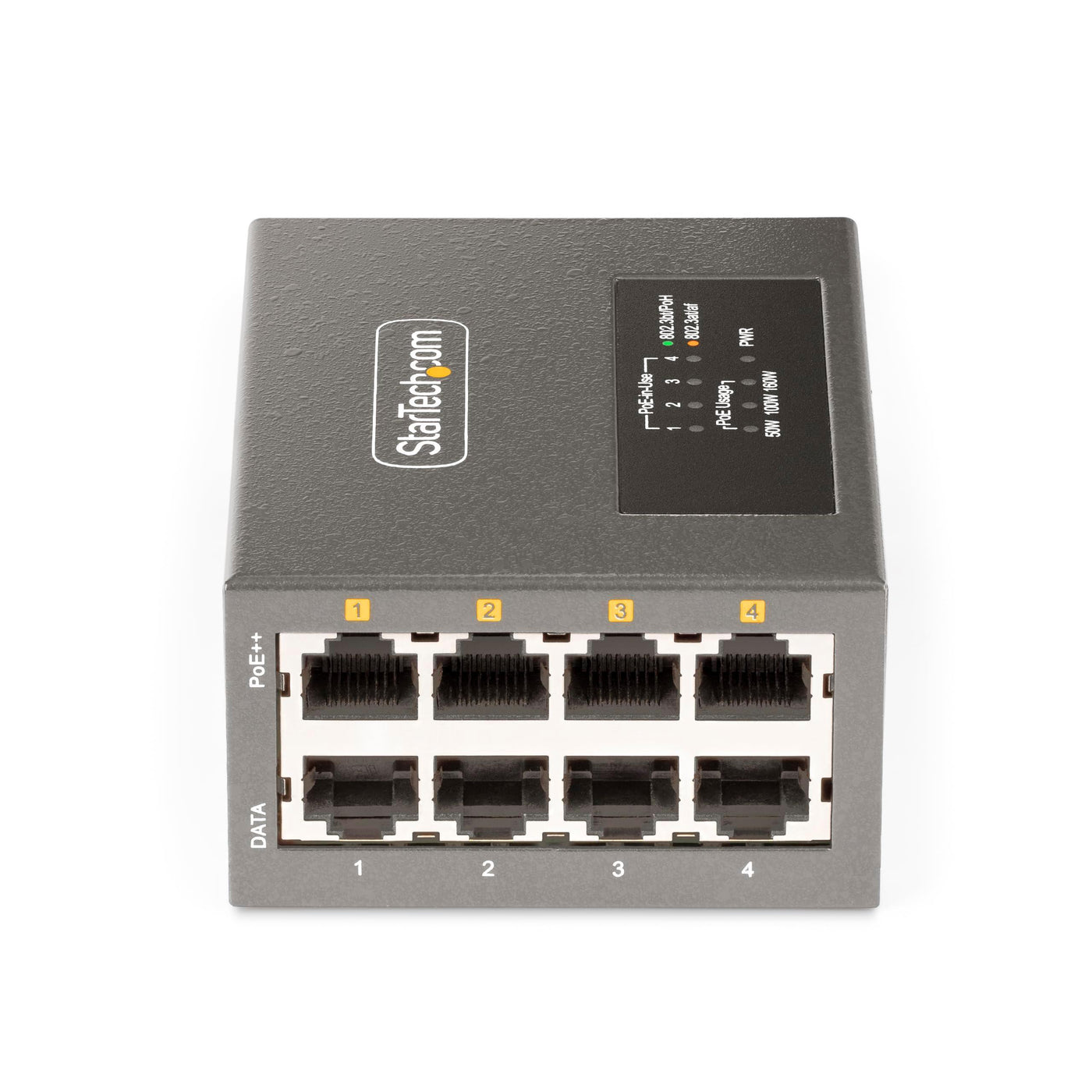

- STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE mode per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system
Binding: Electronics
Release Date: 03-01-2024
model number: AS445C-POE-INJECTOR
Part Number: AS445C-POE-INJECTOR
Details: The Power over Ethernet (PoE) Injector is designed for seamless integration into a network infrastructure, delivering multigigabit speeds of 5/2.5/1Gbps and 100/10Mbps across 4 Ethernet ports, utilizing a single Cat5e (or better) cable for network data and power transmission extending up to 328ft (100m) for remote installations. With PoE, PoE+, PoE++ compatibility, and a selectable power output switch (90W, 95W PoH, or legacy 60W), it ensures effortless connectivity with Powered Devices (PD) such as IP cameras, access control devices, POSs, wireless access points, and digital signage. This versatile PoE Injector adheres to IEEE 802.3af, 802.3at, and 802.3bt standards, delivering up to 52V DC and 95Watts, eliminating the need for a separate power source. The Level-4 ESD protection (15kV air and 8kV contact) enhances device safety and reduces EMI. The support for 2.5GBASE-T and 5GBASE-T technology reduces network slowdowns during data-intensive tasks such as high-quality video streaming, high-speed Internet access, online/local backups, and FTP transfers. This TAA-compliant PoE adapter is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
EAN: 0065030900928
Package Dimensions: 12.1 x 7.1 x 3.5 inches
