Brand: MTDELE
Features:
- Dual-axis XY Joystick Module：6Pcs Dual-axis XY Joystick Module
- Size：34*26*32mm
- Types：5 PIN
- Connector：+5Vcc - GND - VRx - VRy - SW
- Compatible with for Arduino Raspberry

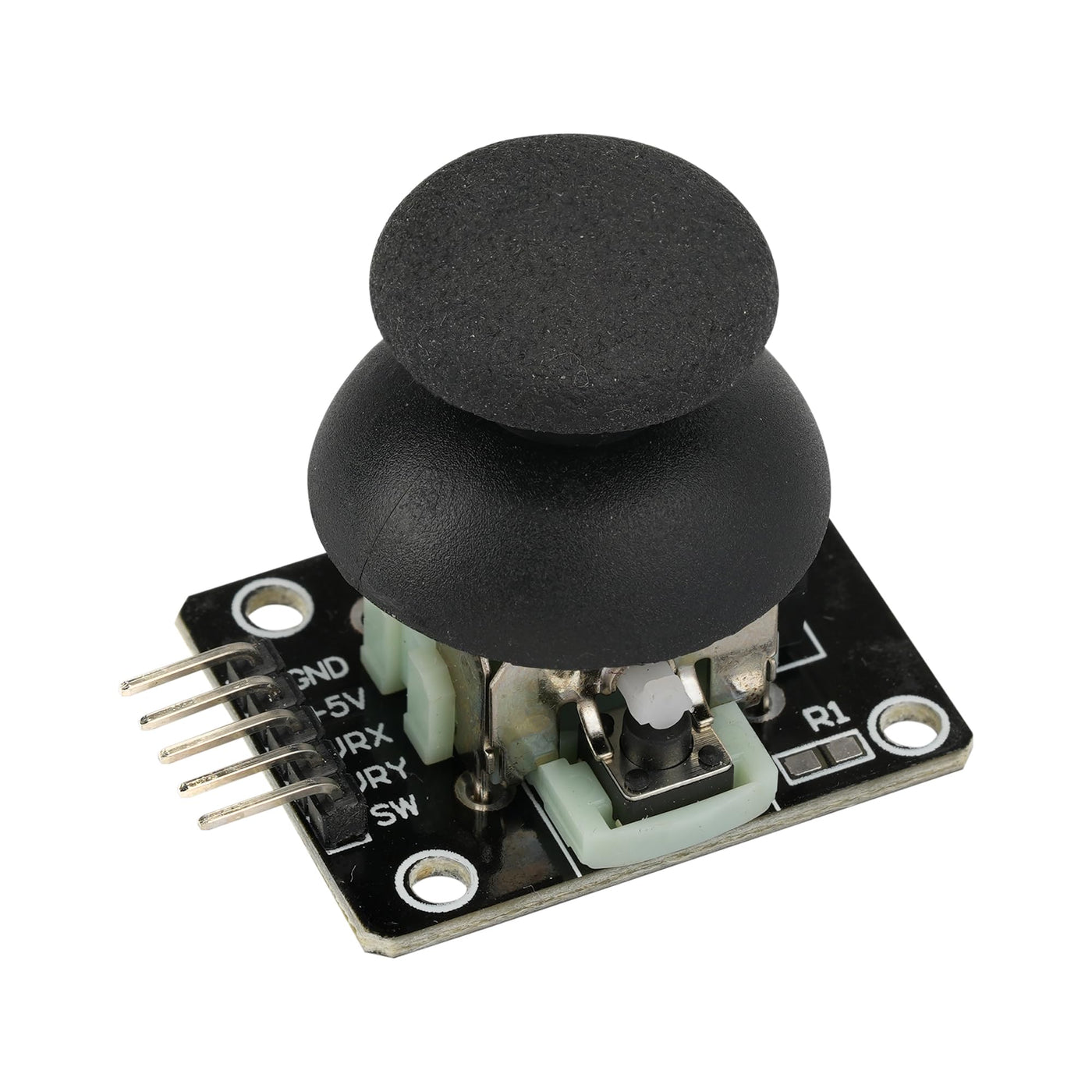

Details: Model: Dual-axis joystick sensor module KY-023

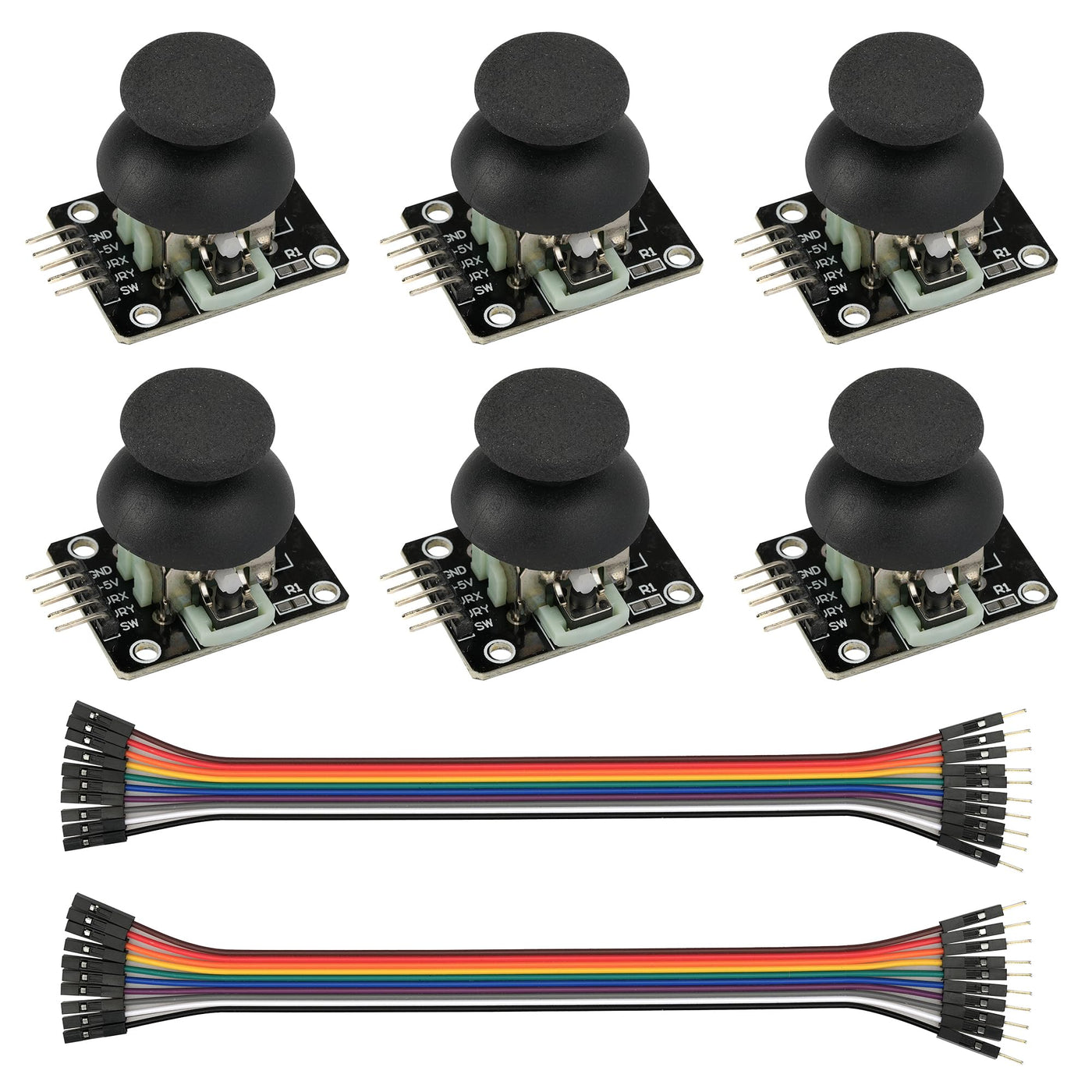

Dual-axis XY Joystick Module：6Pcs Dual-axis XY Joystick Module

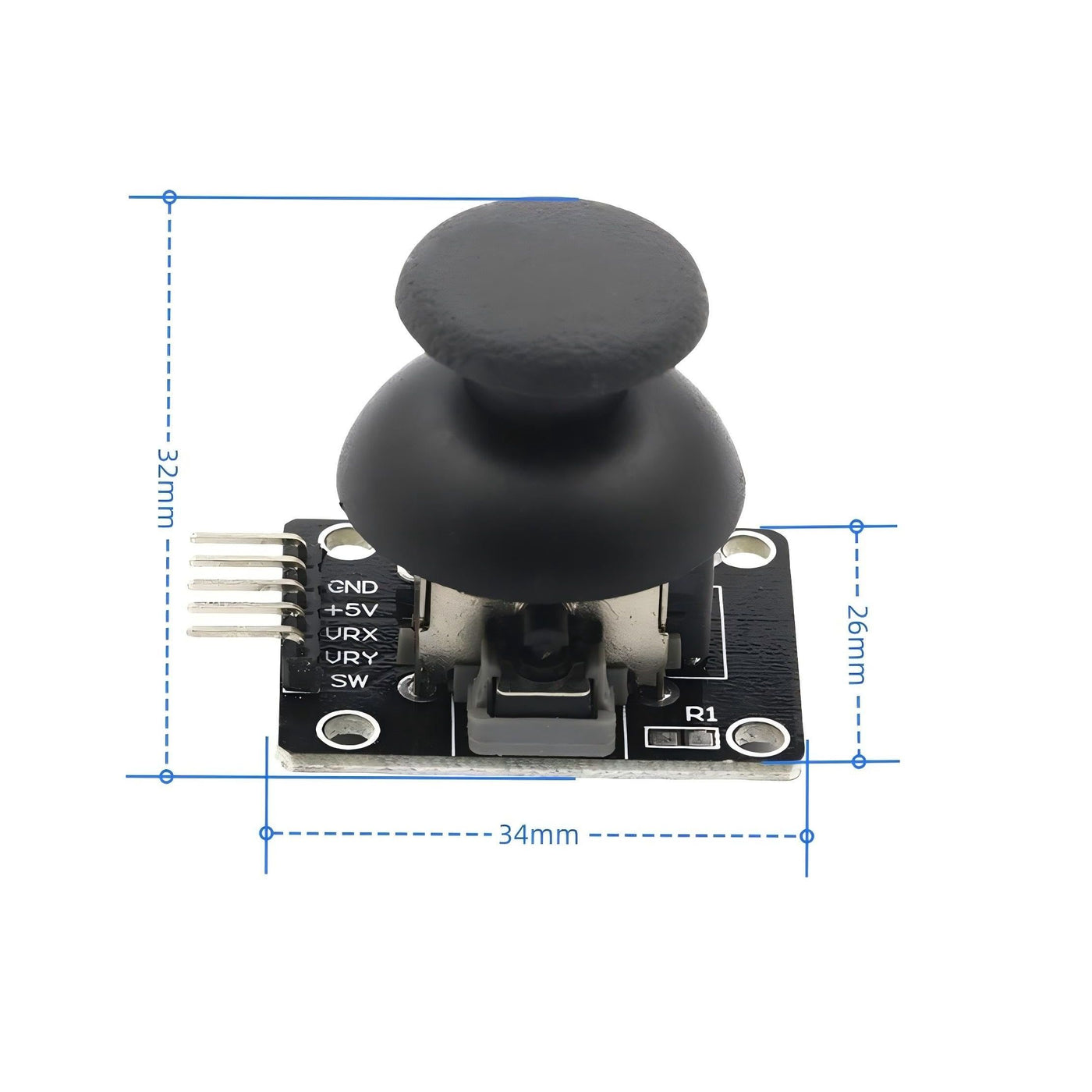

Size：34*26*32mm
Types：5 PIN
Connector：+5Vcc - GND - VRx - VRy - SW
Compatible with for Arduino Raspberry
Made of original high-quality metal joystick potentiometer, with (X, Y) 2-axis analog output, (Z) 1-way button digital output
Compatible with Arduino sensor expansion board, can make interactive works such as remote control
In order to be more conveniently compatible with interfaces such as A-rduino expansion board, the circuits of XYZ axes are separately led out in the design, so that the 3 pins can be connected to the expansion board with a connecting wire for use
Parameters:
1. Input voltage range: DC 3.3V to 5V
2. Output signal: The module has two analog outputs and one digital output interface. The output values correspond to the (X, Y) dual-axis offsets, and the type is analog; the button indicates whether the user presses on the Z axis, and the type isdigital switch
3. Compatible with Arduino controller for programming, sensor expansion board plug-in, more convenient to complete creative remote control interactive works
4. The cross joystick is a bidirectional 10K resistor. As the joystick direction changes, the tap resistance changes
The module uses 5V power supply. In the initial state, the X, Y read voltage is about 2.5V. When pressed in the direction of the arrow, the read voltage value increases, and Z is as large as 5V; when pressed in the opposite direction of the arrow, the read voltage value decreases, and Z is as small as 0V
EAN: 0705252437719
Package Dimensions: 5.5 x 2.8 x 1.4 inches
