Brand: Thermaltake
Color: Snow
Features:
- [4mm THICK TEMPERED GLASS PANEL] - Tool free door lock design which s durability and style
- [BUILT-IN WINDOWED POWER COVER] - Equipped with a PSU cover with a ventilated design to improve airflow and hide those unsightly cables
- [GPU PLACEMENT SUPPORTS] - Specially designed for dual GPU placement options integrated riser GPU support bracket not only prevents the graphic card from sagging but also helps to reduce the weight on the motherboard PCI-E slots
- [PATENTED ROTATIONAL PCI-E 8 SLOTS DESIGN] - With Patented Rotational PCI-E slots you can choose the way you want to display graphic cards vertically or horizontally
- [DRIVE BAY] - 2 x 2 5"/3 5" with HDD Rack + 2 x 3 5" without HDD Bracket + 2 x 2 5" with HDD Bracket behind MB Tray

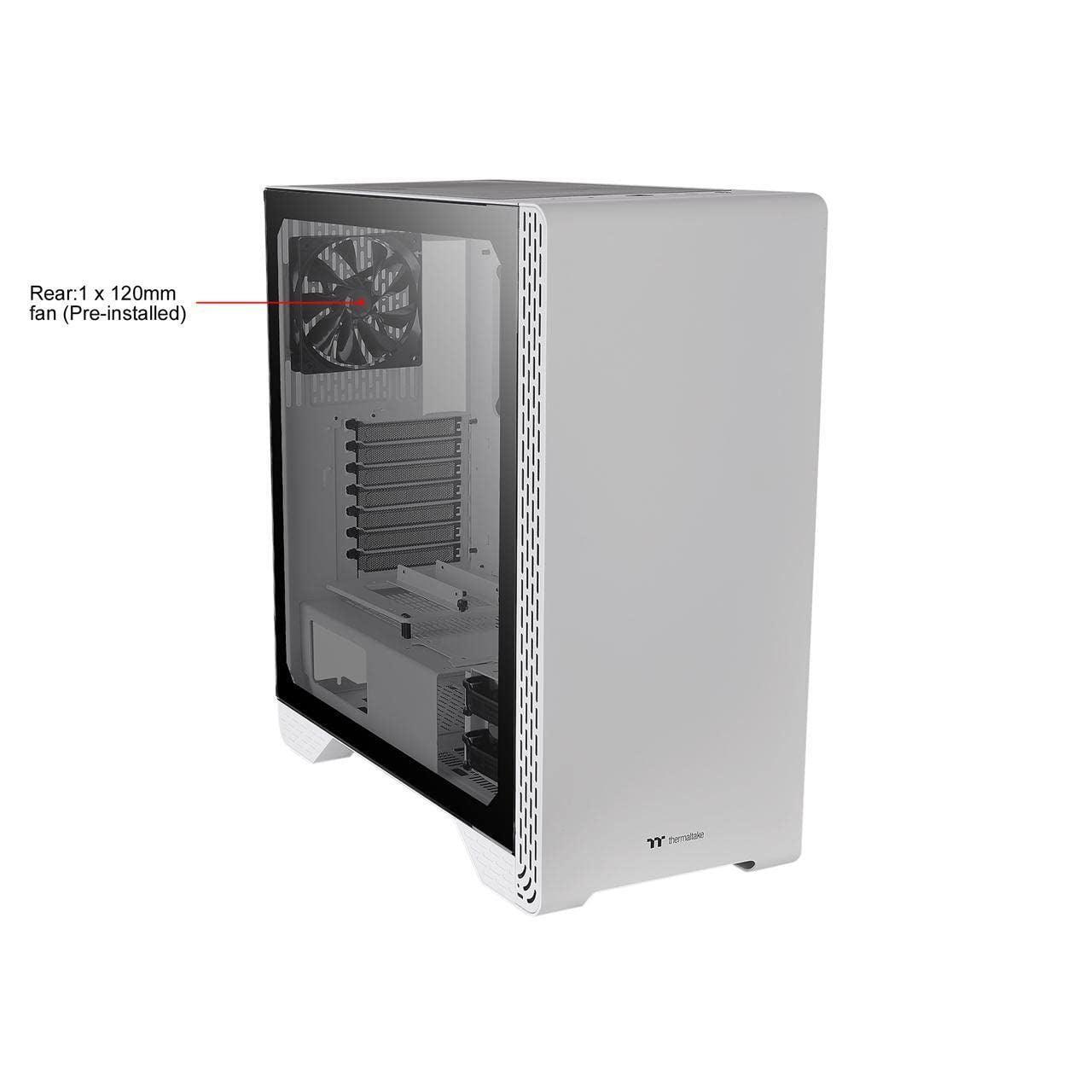

- One 120mm Rear Fan Pre-installed
- Supports Mini ITX Micro ATX ATX Motherboards
- I/O PORT - USB 3 0 x 1 USB 2 0 x 2 HD Audio x 1 Reset Button x 1
- Max CPU Cooler Height 170mm / Max VGA Length 280mm (with Reservoir) 360mm (without Reservoir) / Max PSU Length 200mm
- Dimension – 19 4" x 9 05" x 20" / 24 36 lbs
Binding: Personal Computers
Release Date: 26-12-2019
model number: S300
Part Number: S300

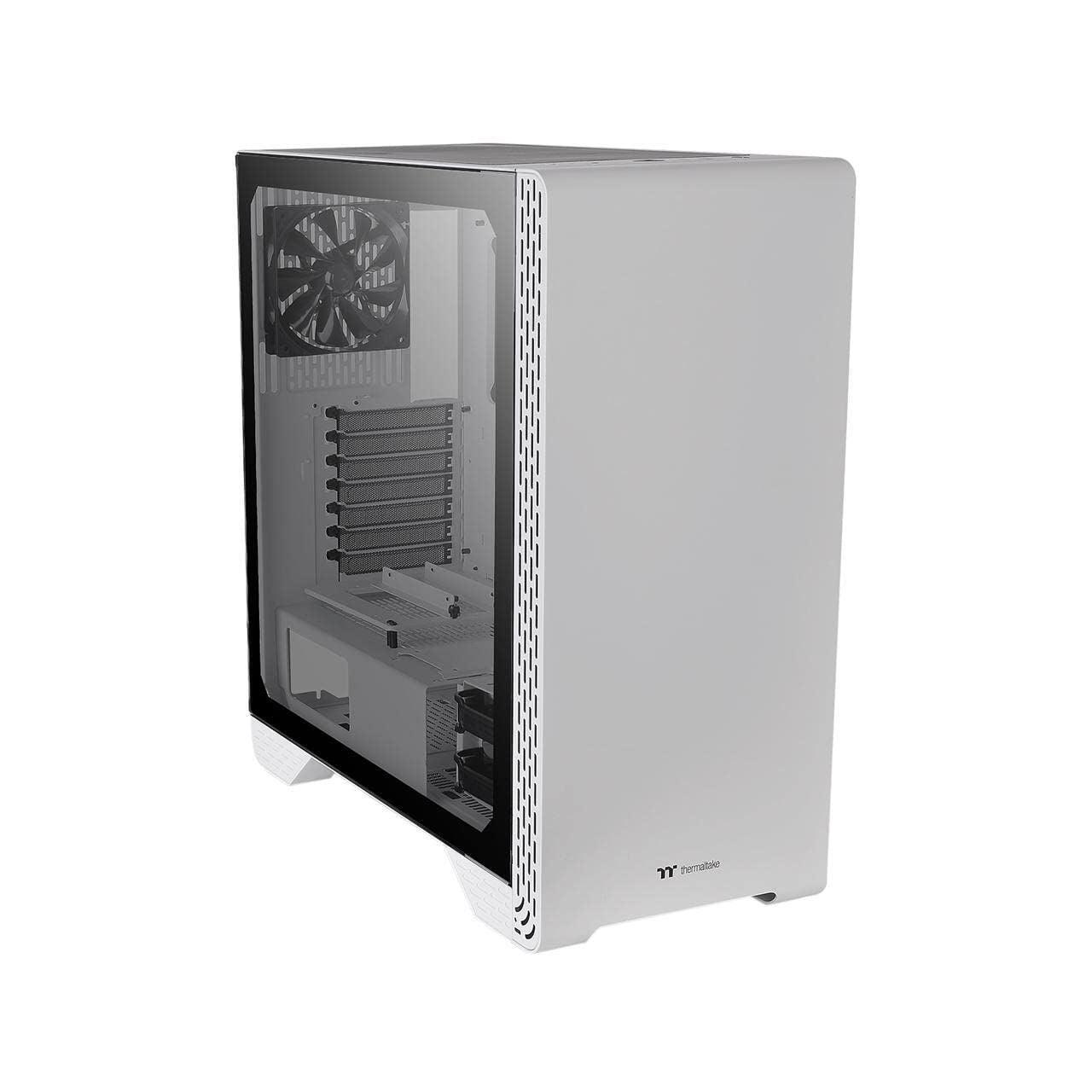

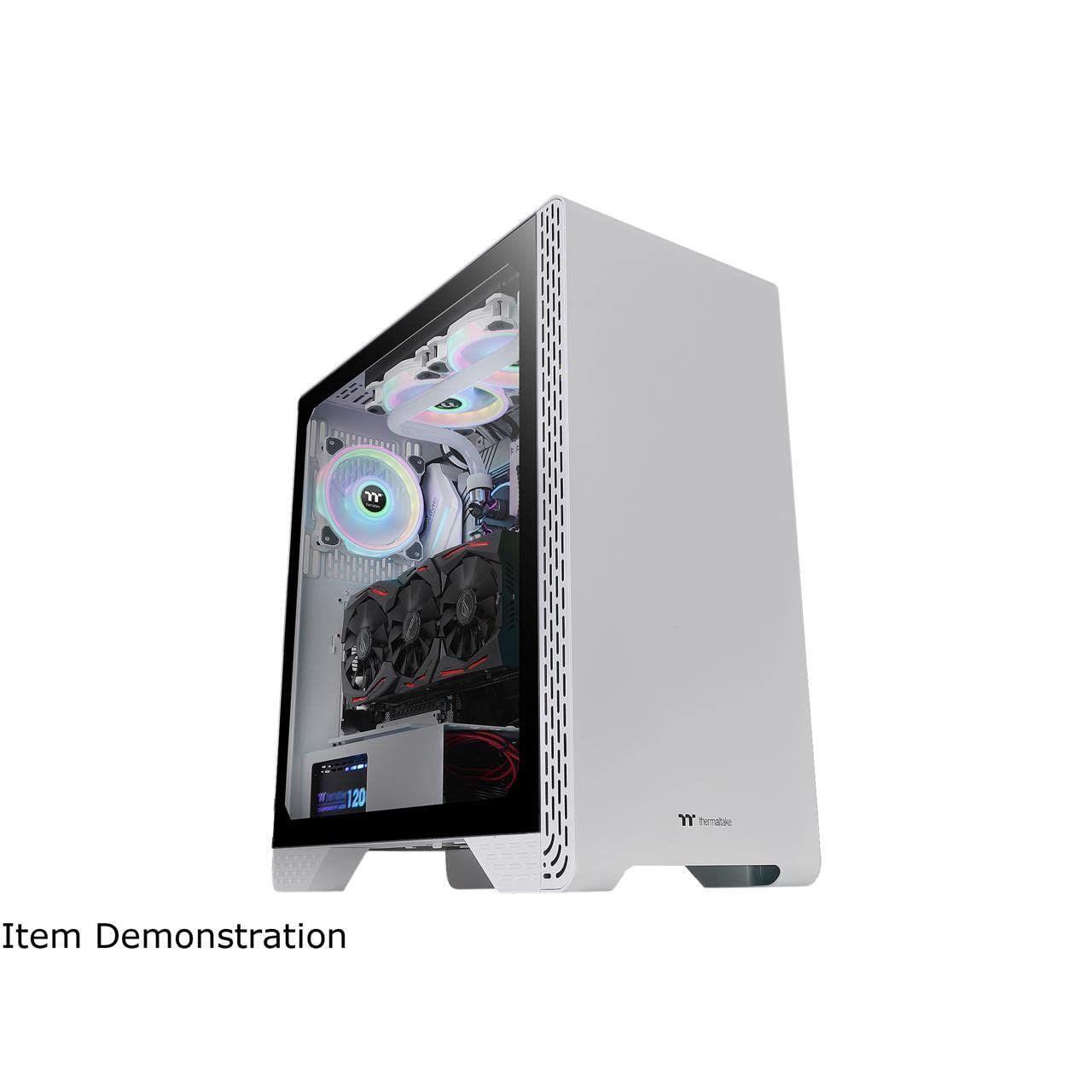

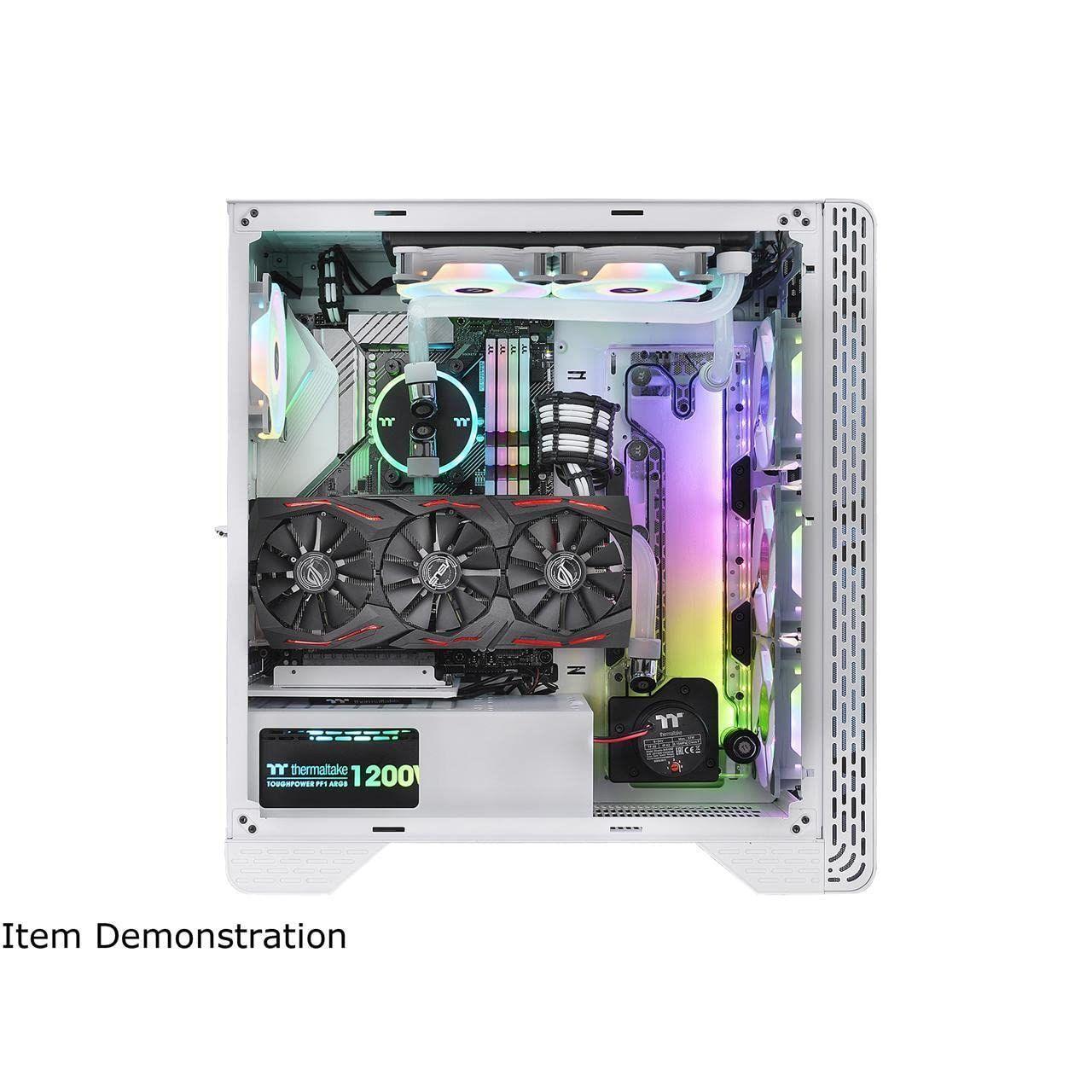

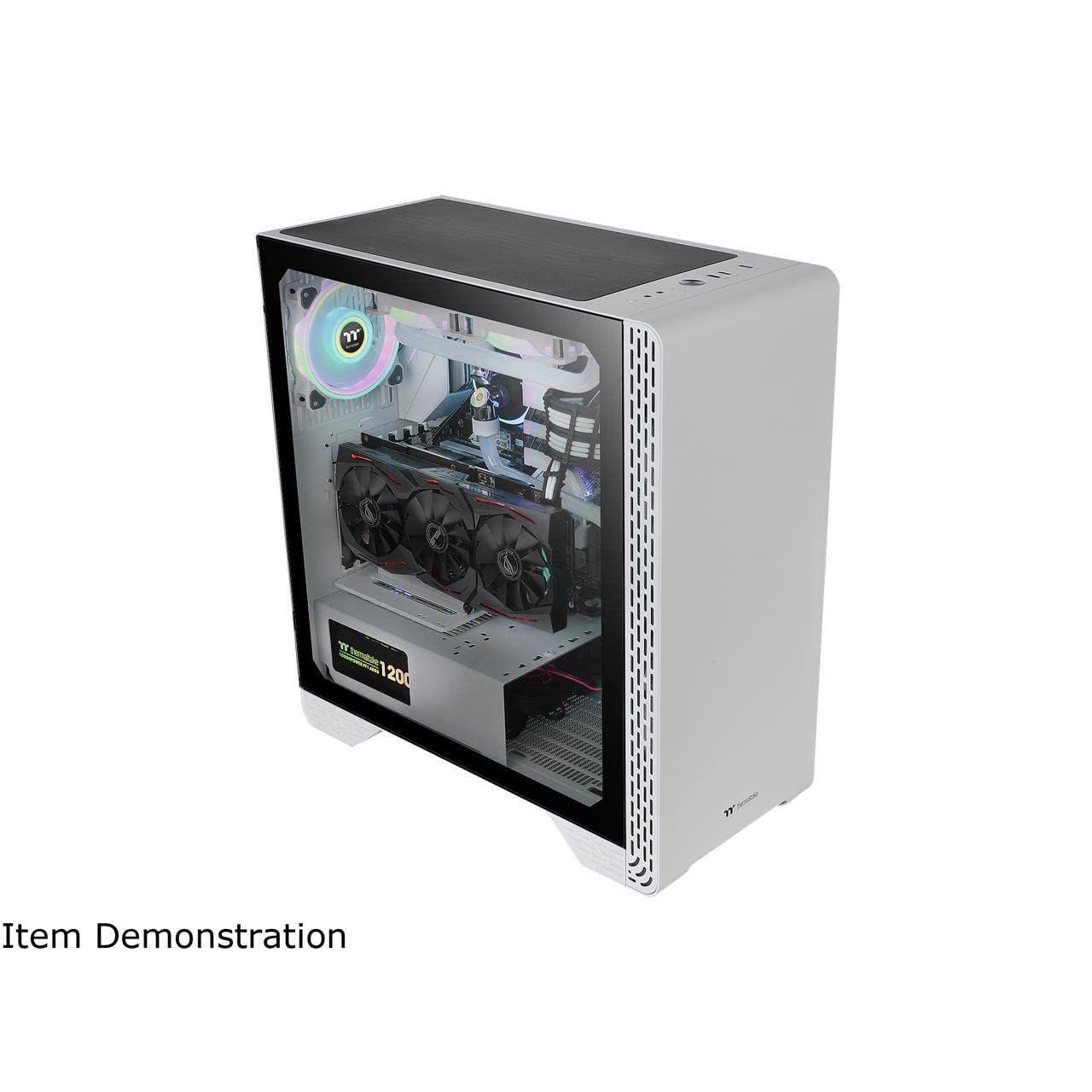

Details: S300 Tempered Glass Snow Edition mid-tower chassis combines sophistication and elegance and is built with modern steel construction. Like the S500 TG, the S300 TG is designed to be compact and is manufactured with one tempered glass window on the left for a stunning view and one preinstalled 120mm standard fan at the rear for fundamental ventilation. Furthermore, it incorporates a full modular design, vertical radiator & GPU mount, Patented Rotational PCI-E slots, and the support for 200mm fans. The flexibility is limitless for high-end components. The S300 TG Mid Tower Chassis is a great fit for users who are looking for a modern and stylish chassis.
P/N: CA-1P5-00M6WN-00
SERIES: S Series
MODEL: S300 TG Snow
CASE TYPE: Middle Tower
DIMENSION (H X W X D): 493 x 230 x 508 mm (19.4 x 9.05 x 20 inch)
NET WEIGHT: 11.05 kg / 24.36 lbs.
SIDE PANEL: 4mm Tempered Glass x 1
COLOR: Exterior & Interior: White
MATERIAL: SPCC
COOLING SYSTEM: Rear (exhaust): 120 x 120 x 25 mm fan (1000rpm, 16 dBA)
DRIVE BAYS
ACCESSIBLE: 2 x 3.5“ or 2.5” (HDD Rack); 2 x 3.5“(Without HDD Rack)
HIDDEN: 2 x 2.5” (HDD Bracket)
EXPANSION SLOTS: 7
MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O PORT: 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio
PSU: Standard PS2 PSU (optional)
FAN SUPPORT
Front: 3 x 120mm, 3 x 140mm, 2 x 200mm
Top: 3 x 120mm, 2 x 140mm, 1 x 200mm
Rear: 1 x 120mm, 1 x 140mm
RADIATOR SUPPORT
Front: 1x 280mm, 1 x 360mm
Top: 1 x 240mm, 1x 280mm
Rear: 1 x 120mm, 1 x 140mm
Right: 1 x 360mm, (Without HDD Rack)
CLEARANCE
CPU cooler height limitation: 170mm
PSU length limitation: 200mm
VGA length limitation: 280mm (With reservoir) 360mm (Without reservoir)
EAN: 0841163074022
Package Dimensions: 25.0 x 23.5 x 14.0 inches
