Brand: Phanteks
Color: WHITE
Features:

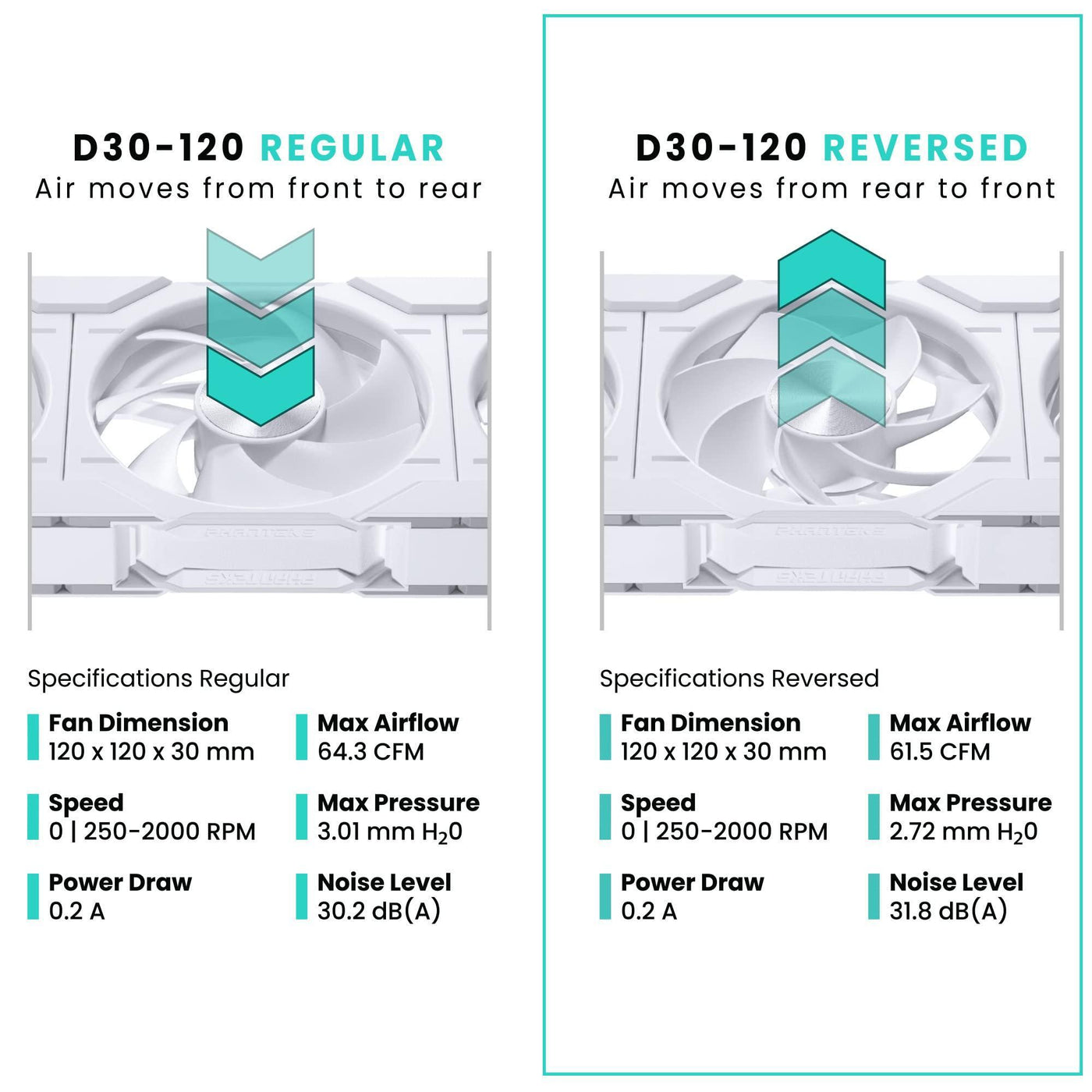

- Regular & Reverse airflow models available: With regular and reverse airflow models available, the D30 fan allows for the perfect configuration without obstructing the fan blade lighting effect.

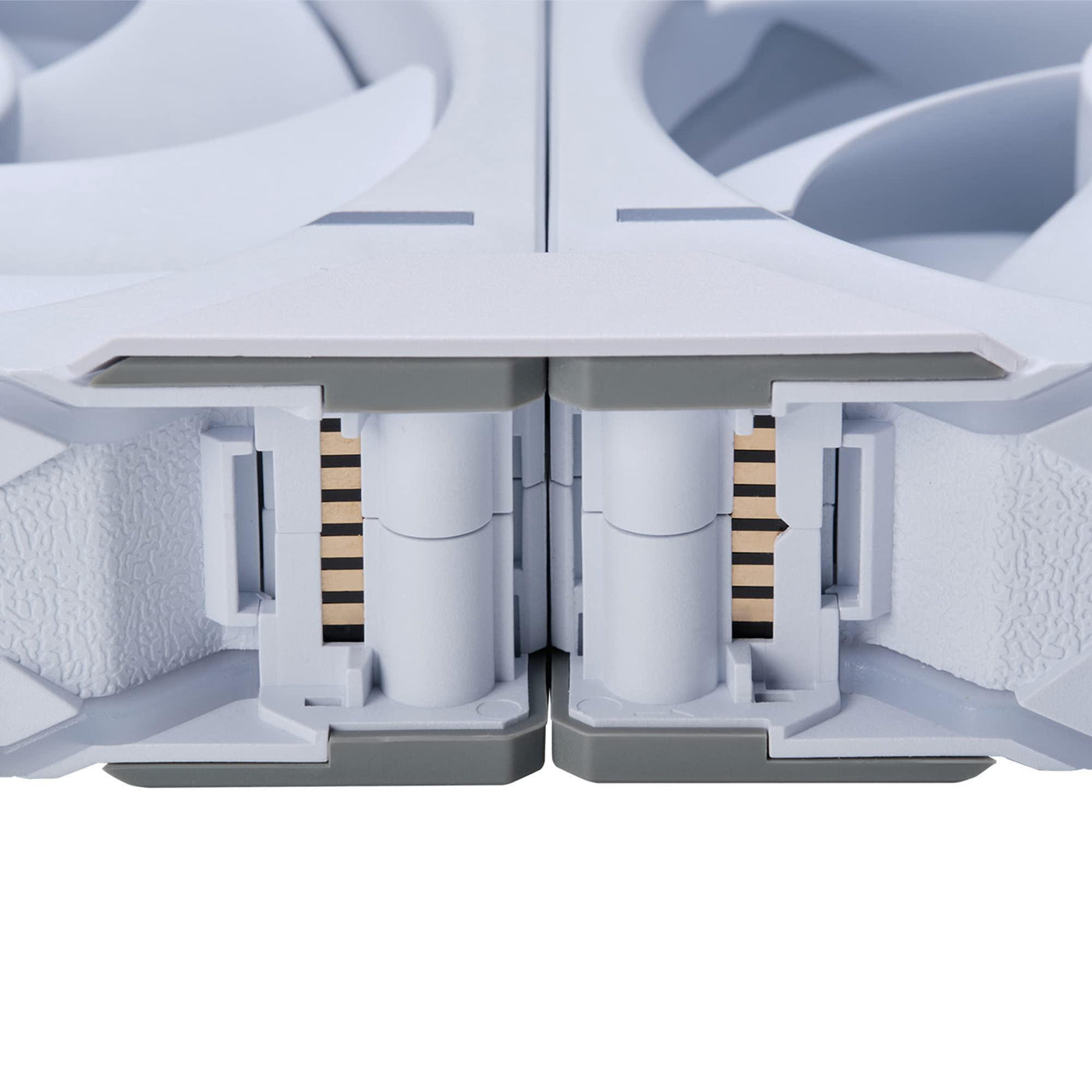

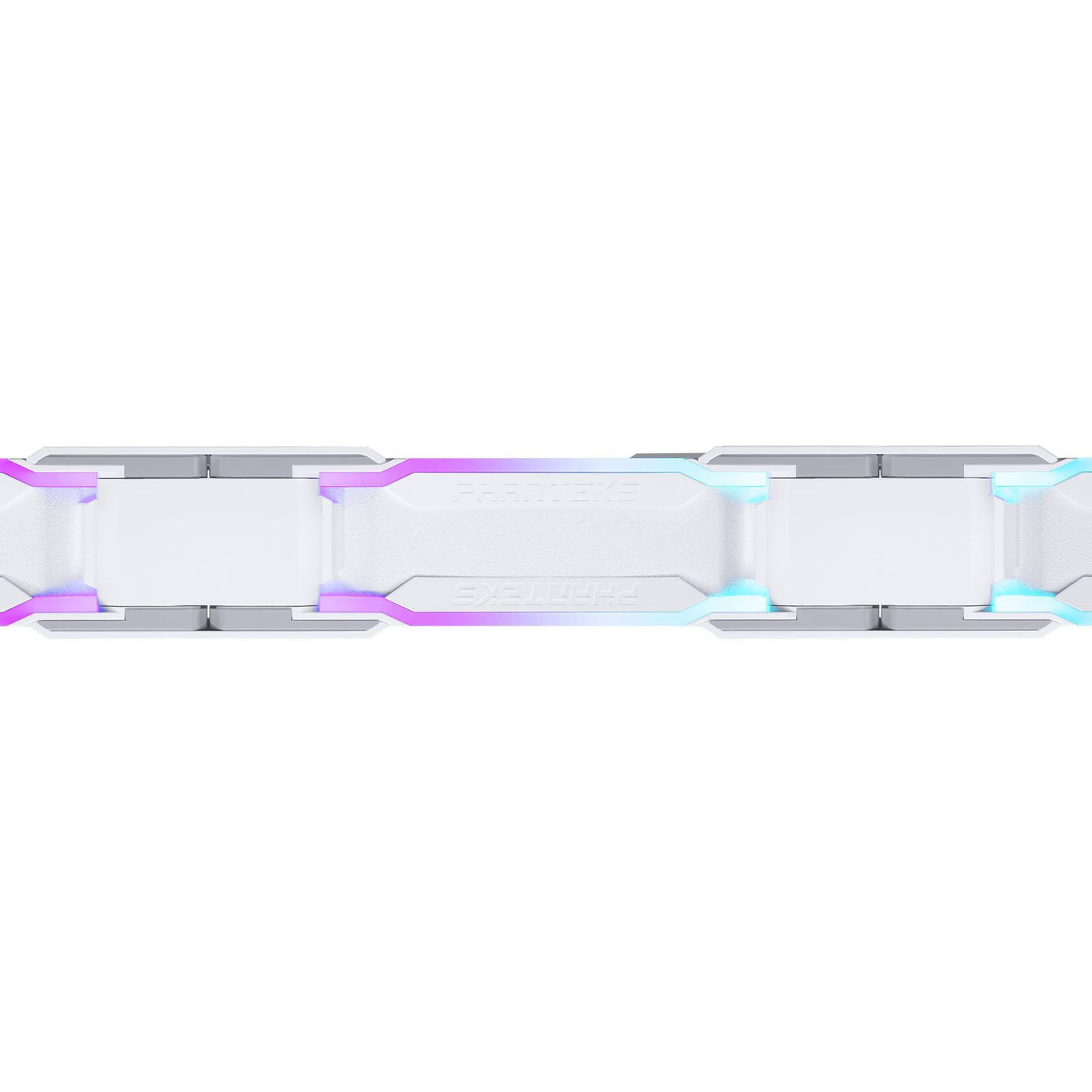

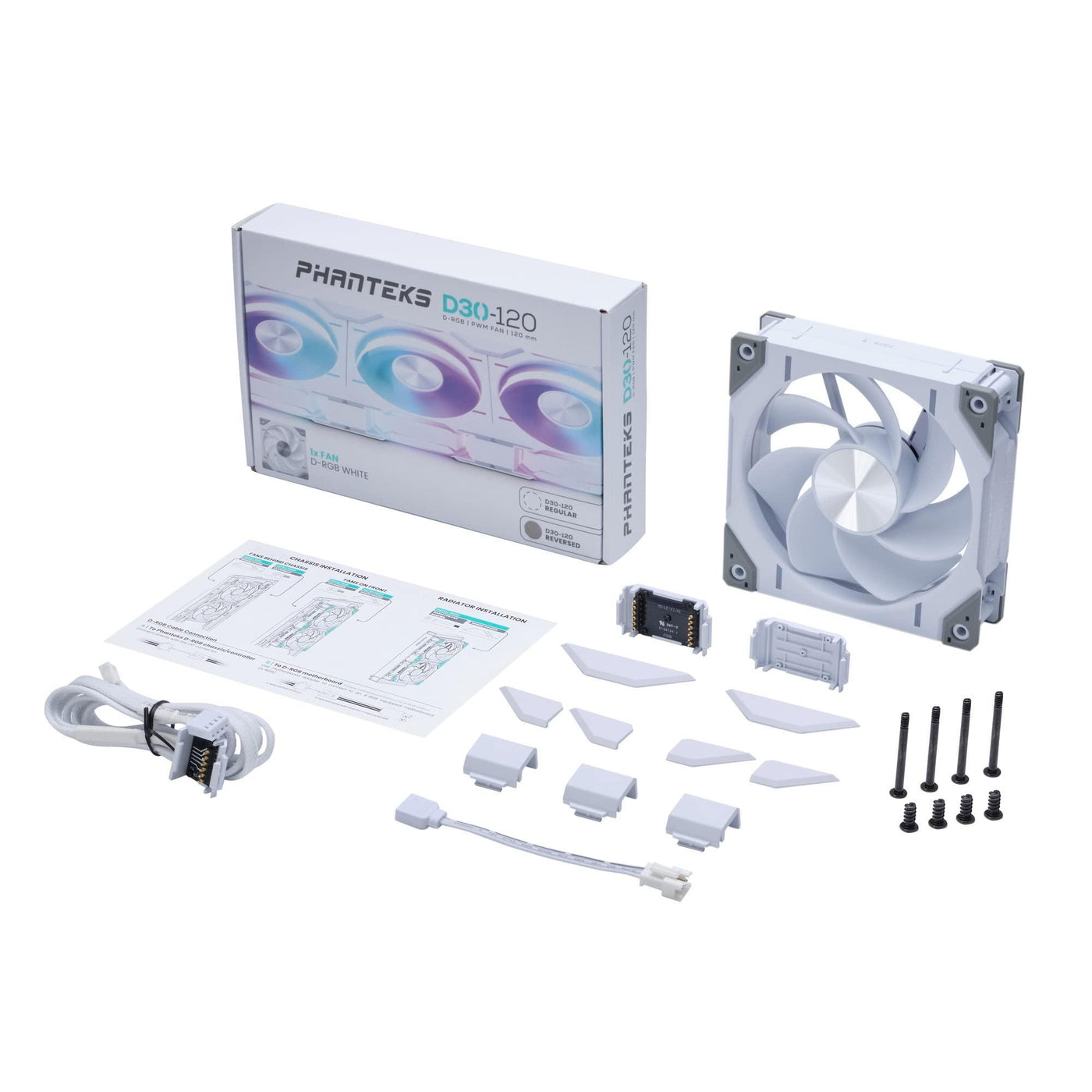

- Easy and clean fan linking system: Linking multiple fans together reduces cable clutter considerably while the screw cover plates, and bridge connectors make multiple D30 fans work as one clean unit.

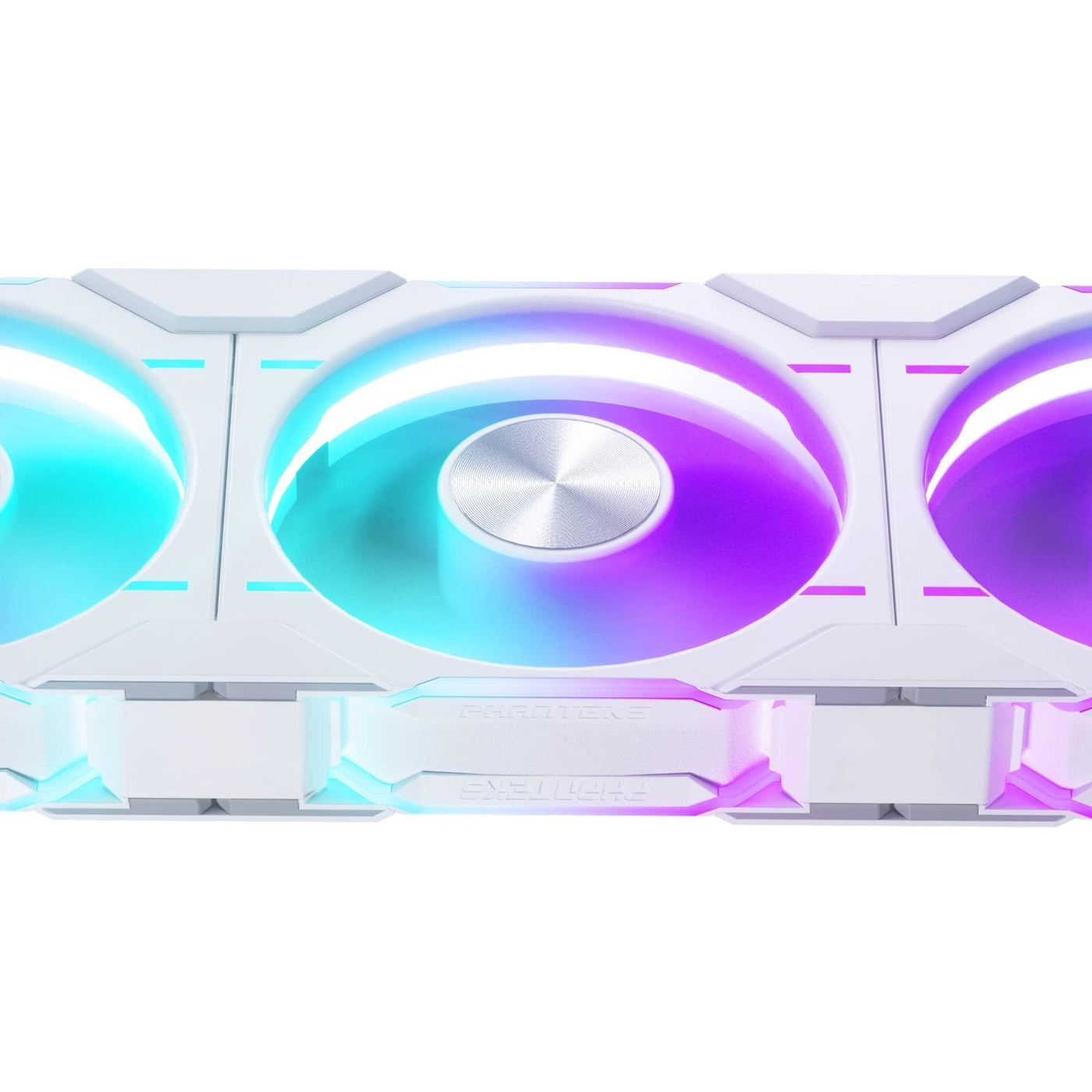

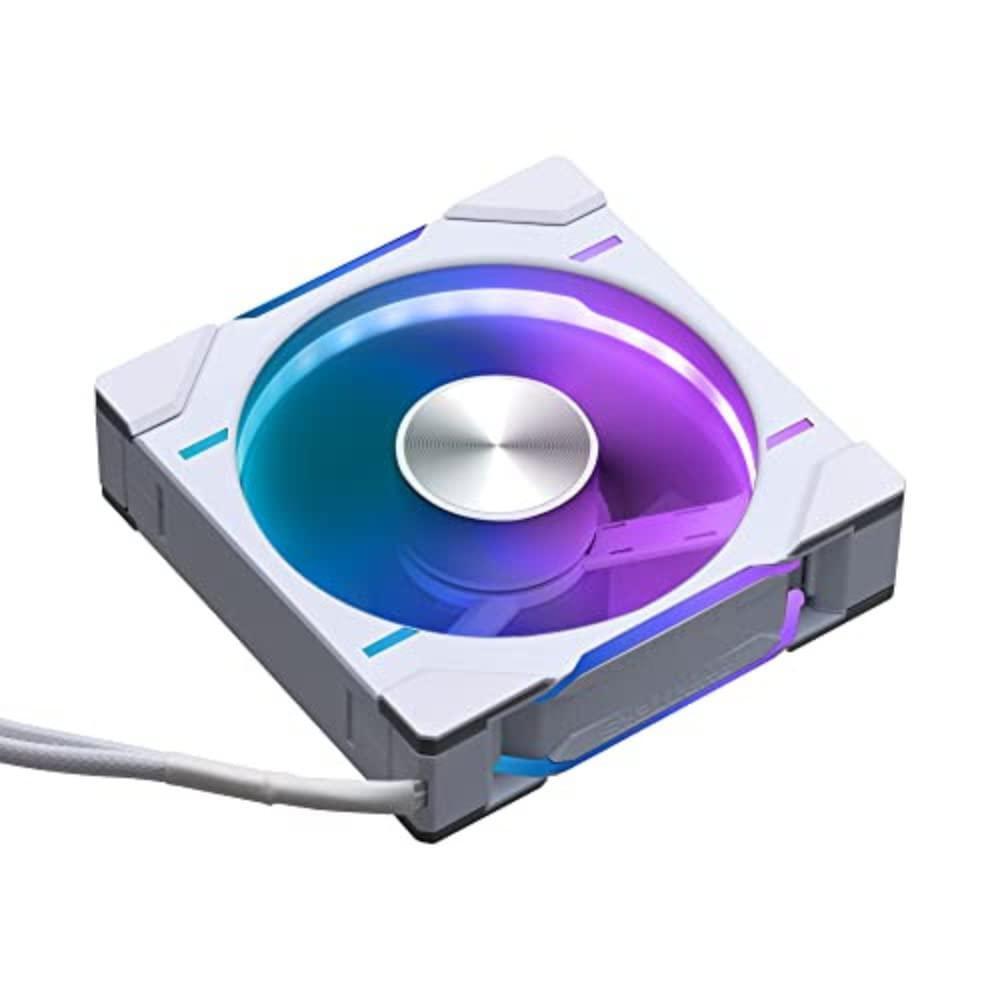

- The D-RGB lighting is integrated and visible from all sides of the D30-120 fan. The blades reflect the light coming from the Halos lighting ring inside the frame. Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.
- 30 mm of performance: On a radiator or behind restrictive mesh/dust filters, the 30 mm thick frame and blades provide plenty of air pressure to keep things cool.
Binding: Personal Computers
model number: LUPH-084
Part Number: LUPH-084

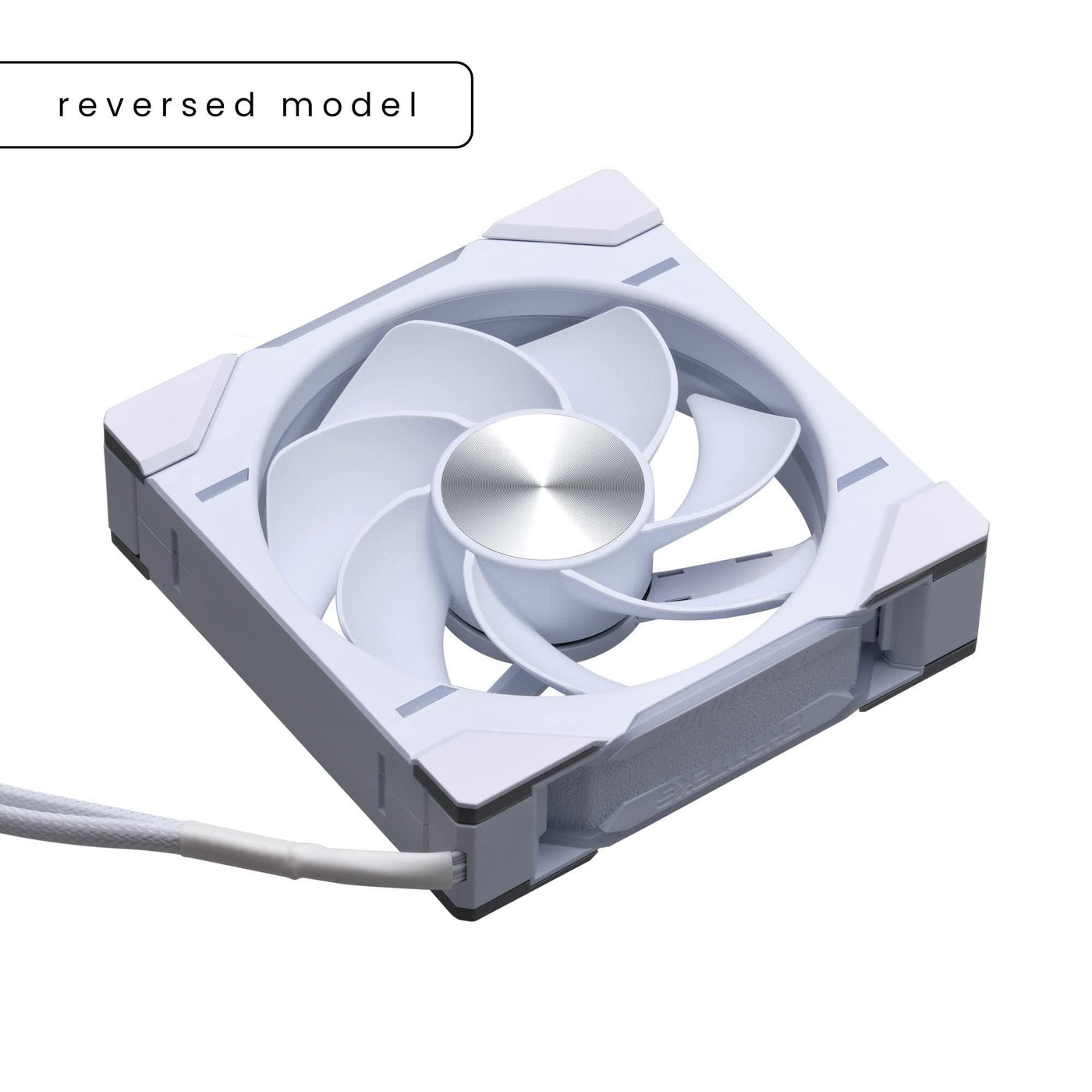

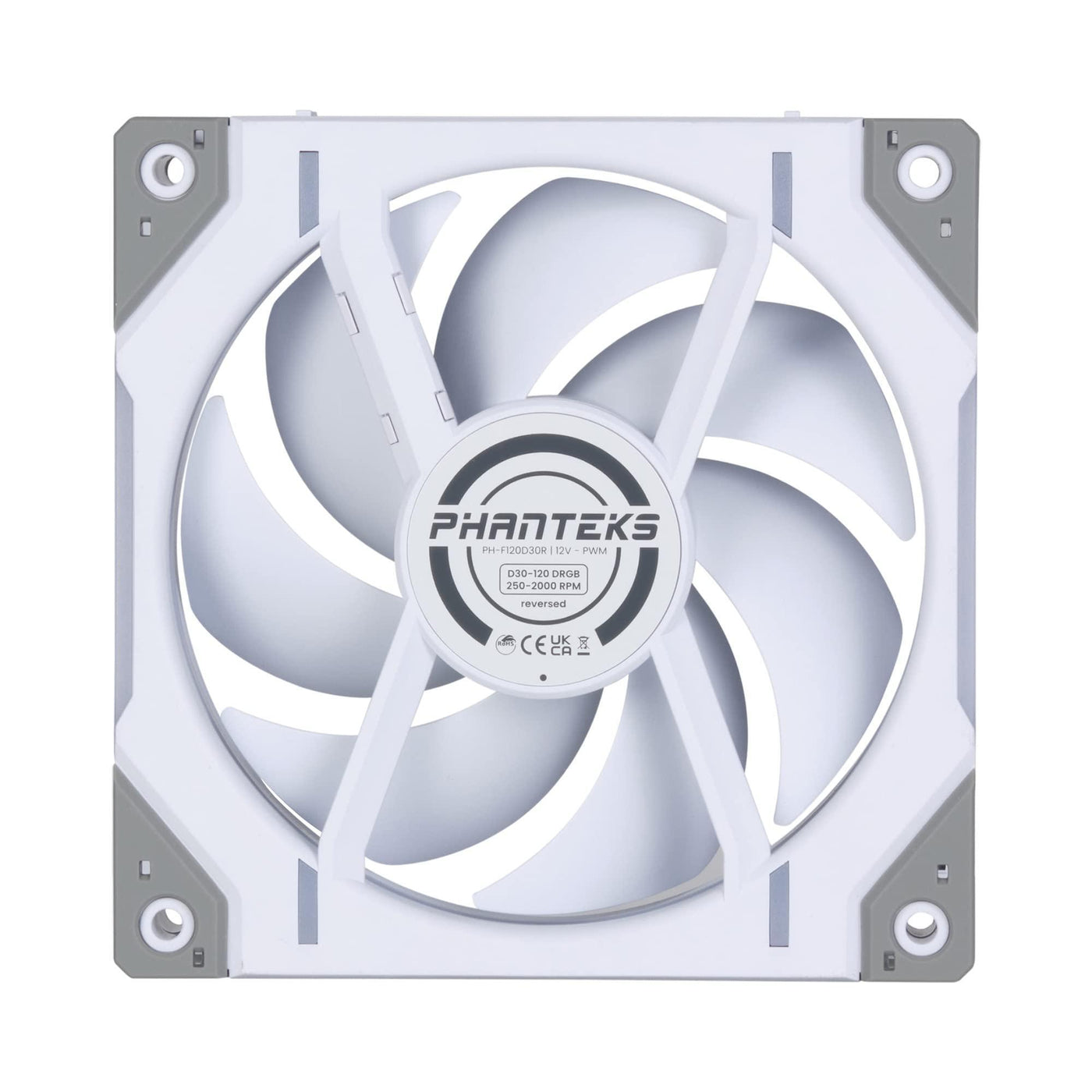

Details: The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds. The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system. Type: Case Fan. Wind Direction: Reversed. Color: White Matte blade / Black Fan Frame or White Matte blade / White Fan Frame. Materials: PBT (Polybutylene terephthalate). Fan Size: 120 x 120 x 30 mm. Bearing Type: FDB (Fluid Dynamic Bearing). Blade Geometry: Seven Blades Design- White Matte. Rated Voltage: FAN: 12V LED: 5V.Operating Voltage Range: 5~13.2V. PWM: Yes. Rated Current (Ampere): 0.15A LED:0.45A(Max). Locked Current: Polarity Protection. Power Consumption: Less than or equal 1.8W. Speed: 250-2000±10% RPM. Max. Airflow: 61.5 CFM. Max. Air Pressure: 2.72 mm H2O. Noise Level: 31.8 dB(A). Fan Connector: 4-Pin PWN . Fan Cable Length: 700 mm / 27.56 in . D-RGB Connector: 3-Pin JST Daisy-chain. D-RGB Cable Length: 600+100 mm / 23.62+3.94 in. LED Number: 30 (D-RGB). LED Rated Voltage: DC 5V (+5V/D/GND). LED Rated Current: Max:0.45A. MTBF (Life Expectance): 50,000hrs at 40 degree C. Weight: 300 g / 0.66 lbs.
EAN: 0886523003045
Package Dimensions: 10.0 x 5.0 x 2.0 inches
