Brand: Phanteks
Color: BLACK
Features:

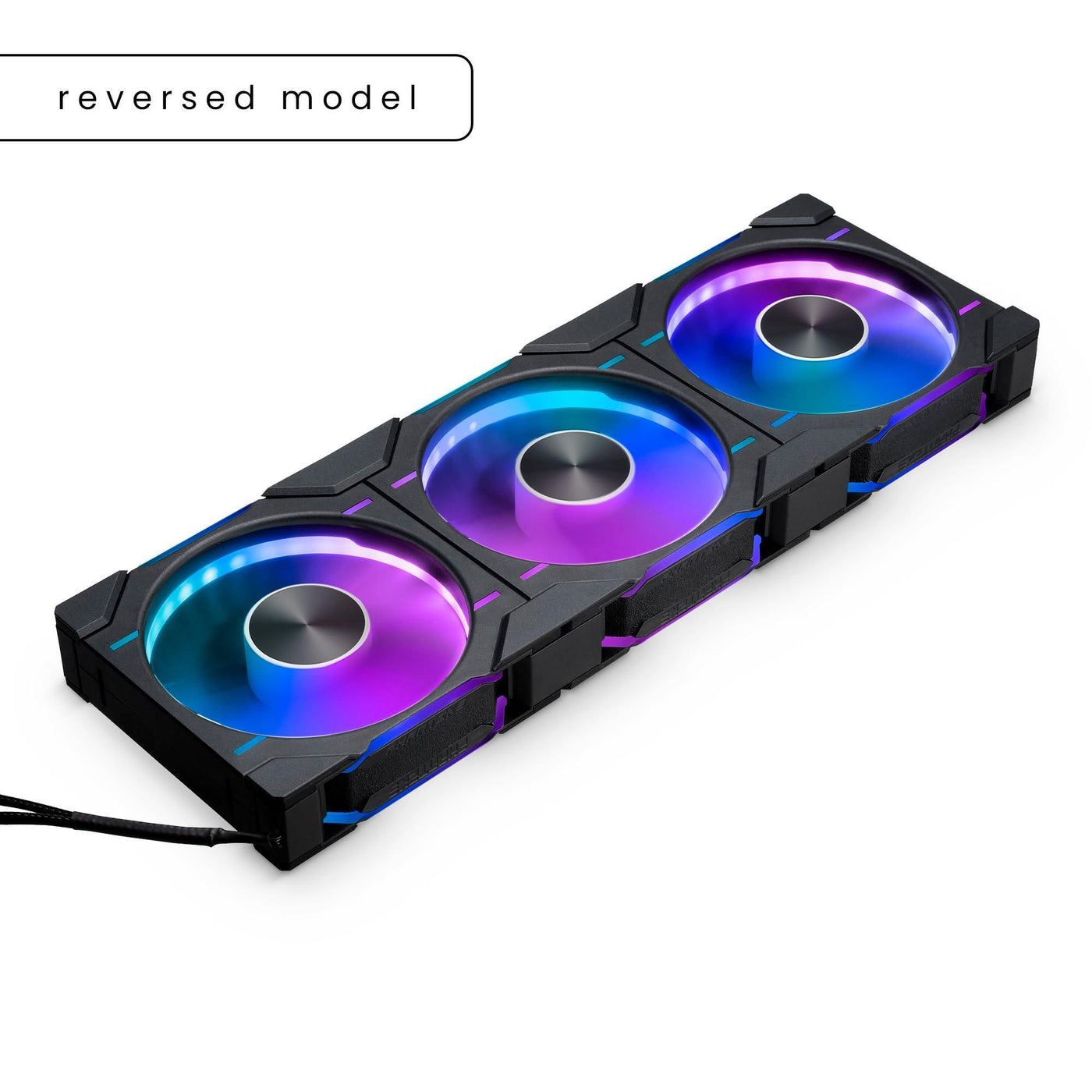

- Regular & Reverse airflow models available: With regular and reverse airflow models available, the D30 fan allows for the perfect configuration without obstructing the fan blade lighting effect.

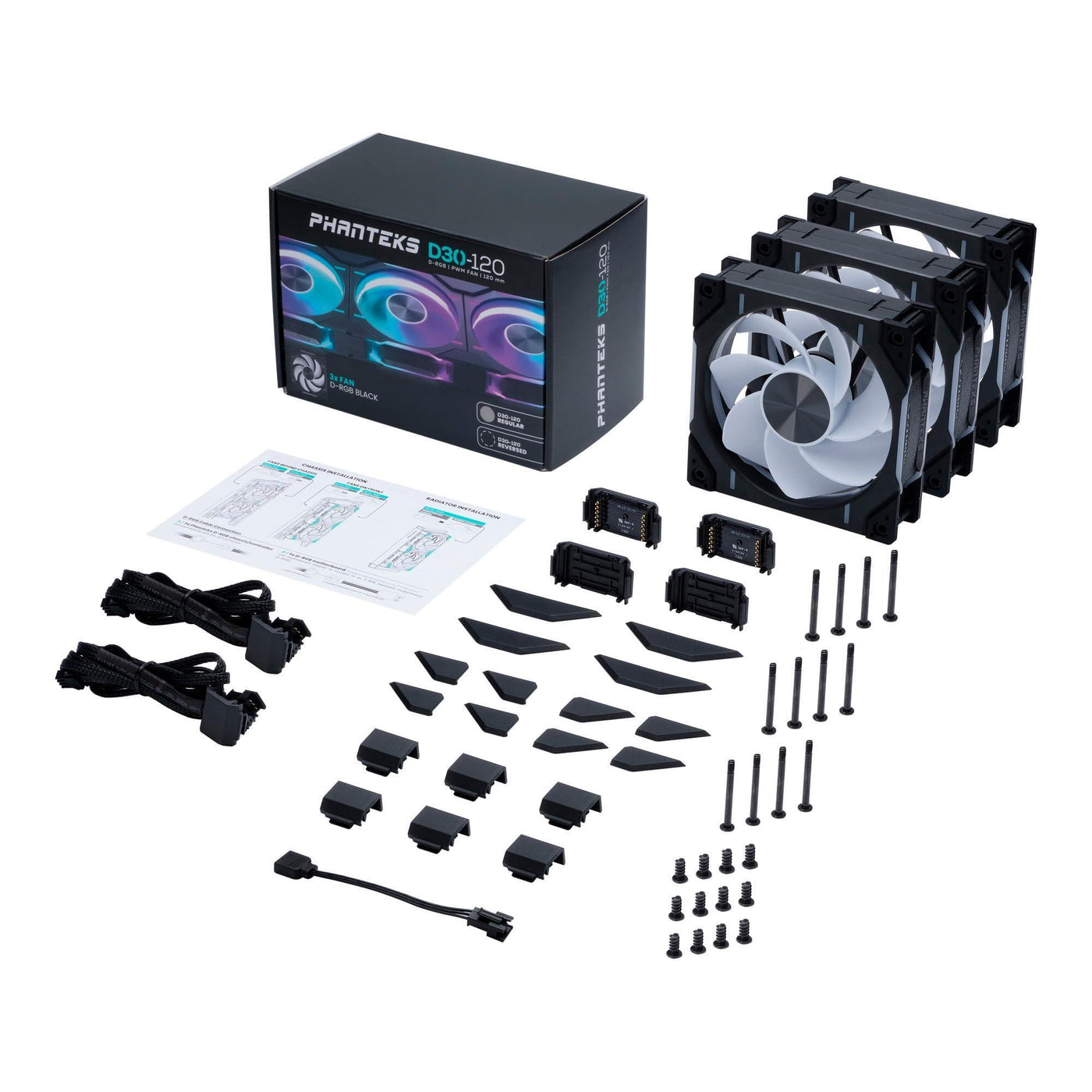

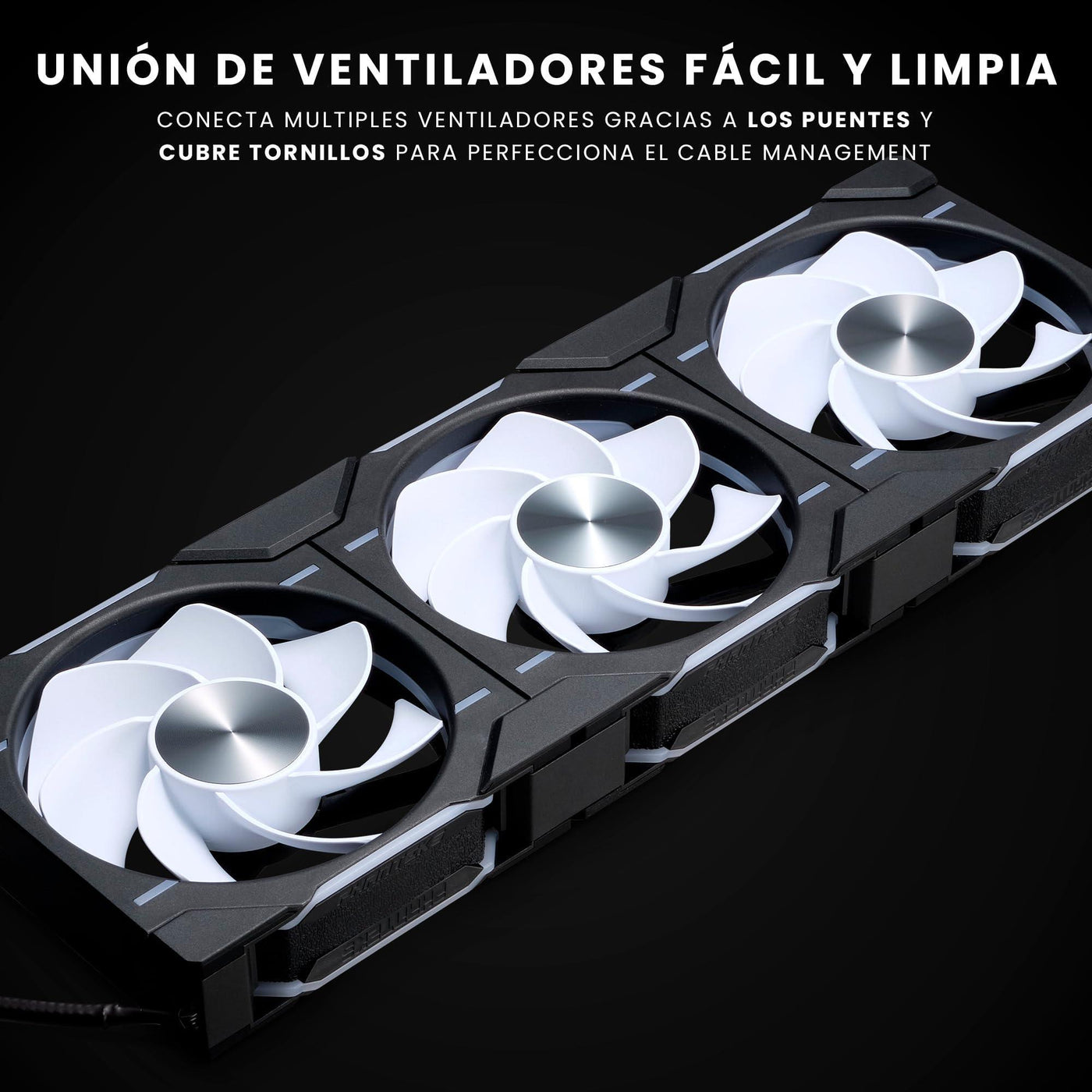

- Easy and clean fan linking system: Linking multiple fans together reduces cable clutter considerably while the screw cover plates, and bridge connectors make multiple D30 fans work as one clean unit.

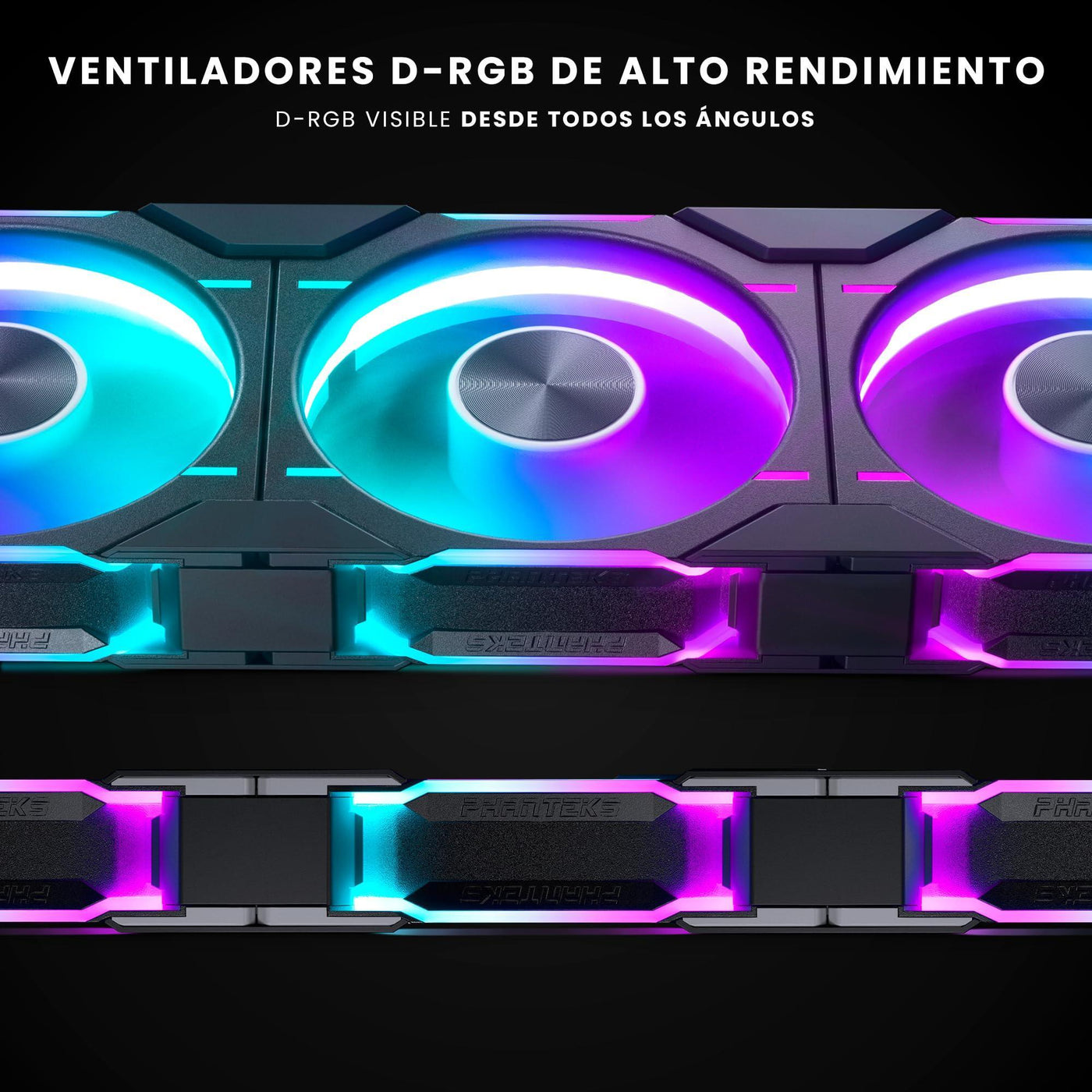

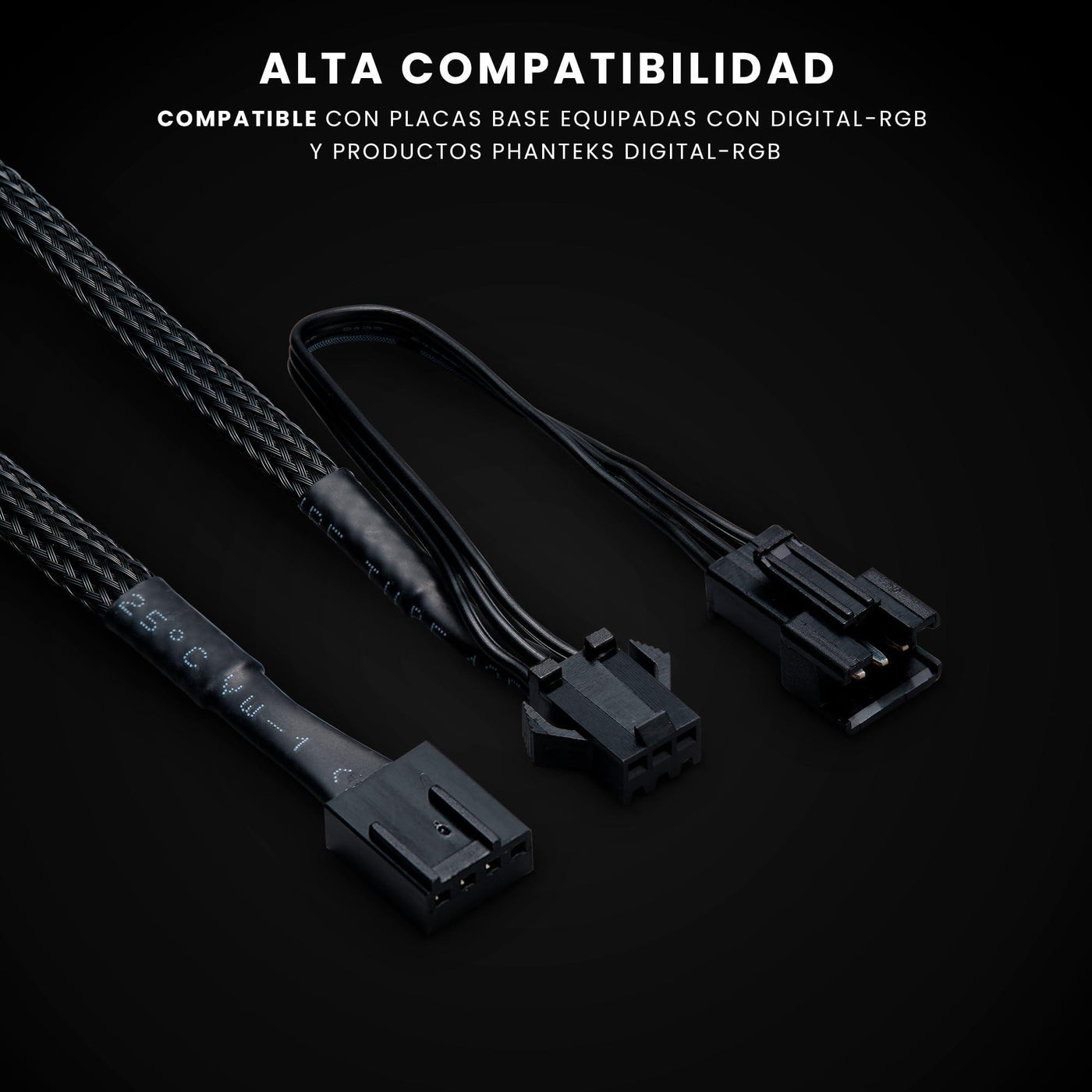

- The D-RGB lighting is integrated and visible from all sides of the D30-120 fan. The blades reflect the light coming from the Halos lighting ring inside the frame. Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.

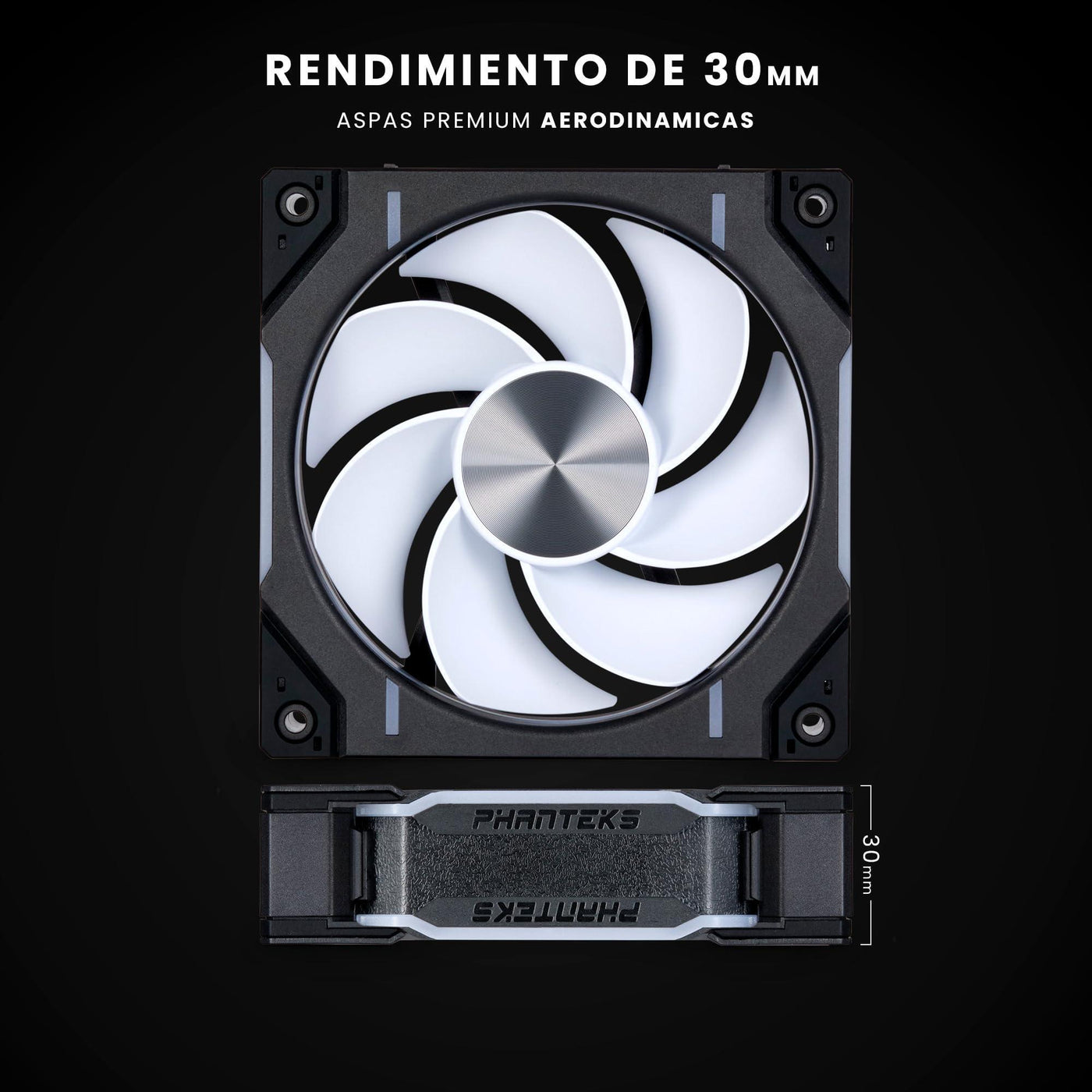

- 30 mm of performance: On a radiator or behind restrictive mesh/dust filters, the 30 mm thick frame and blades provide plenty of air pressure to keep things cool.
Binding: Personal Computers
Release Date: 28-03-2023
model number: PH-F120D30R_DRGB_PWM_BK01_3P
Part Number: PH-F120D30R_DRGB_PWM_BK01_3P

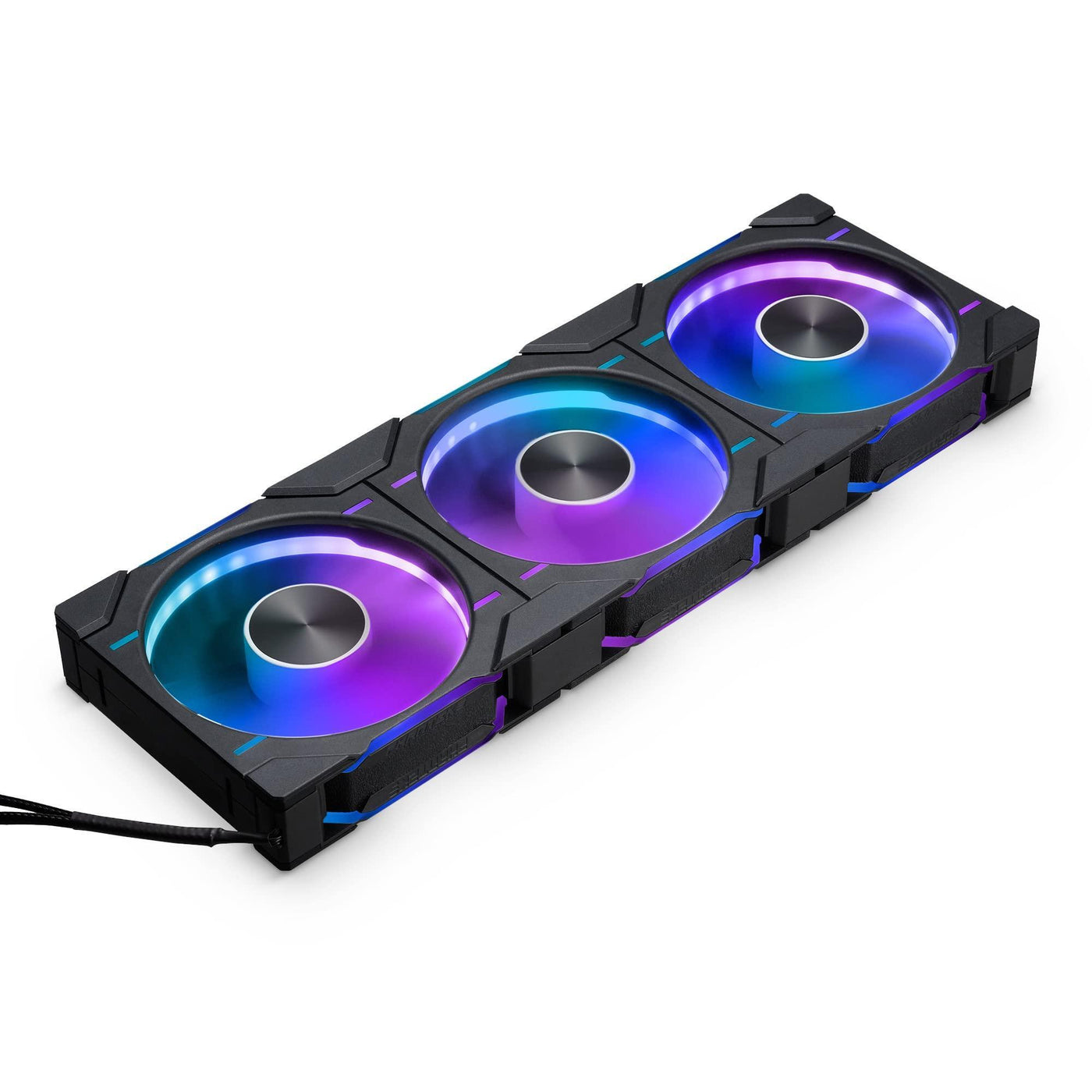

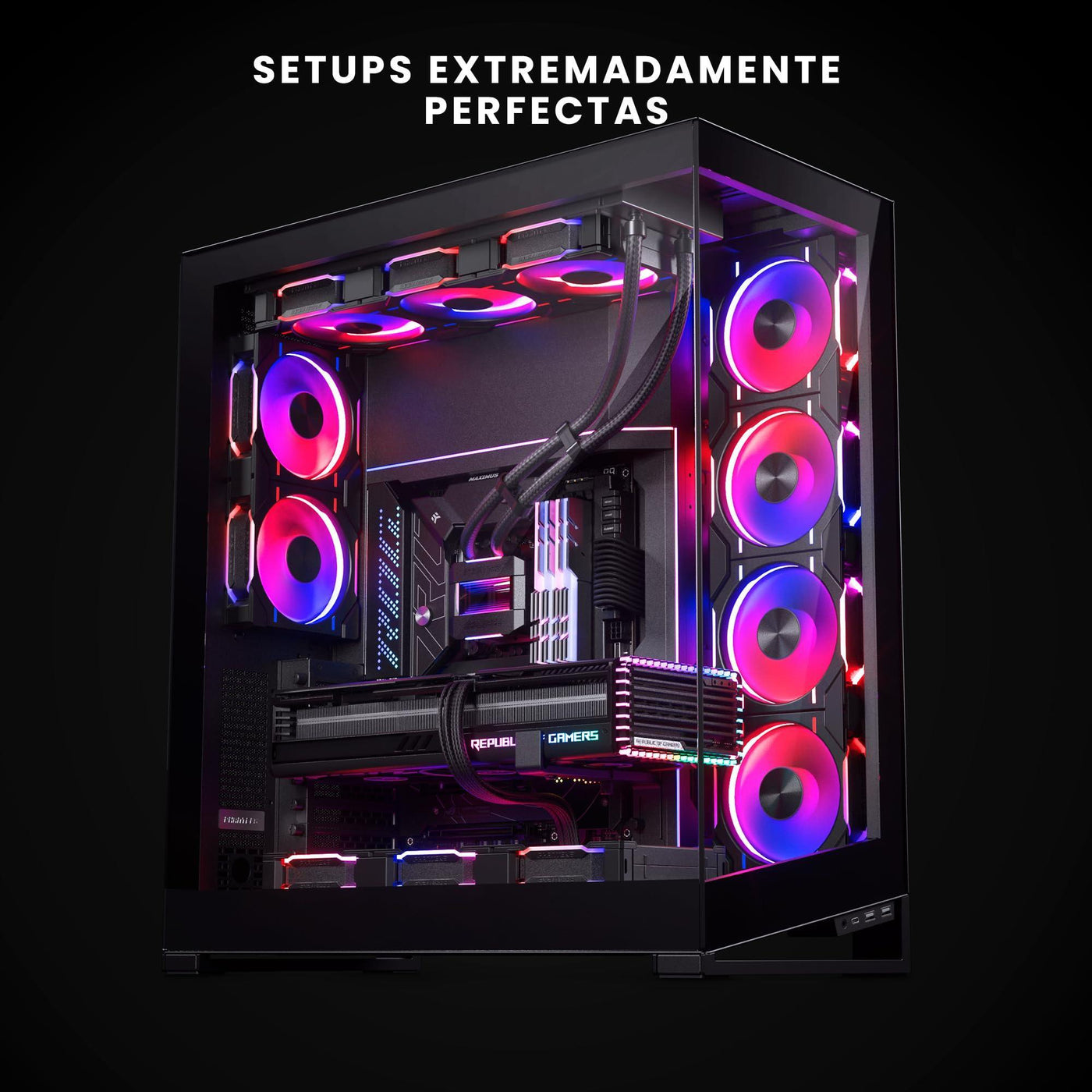

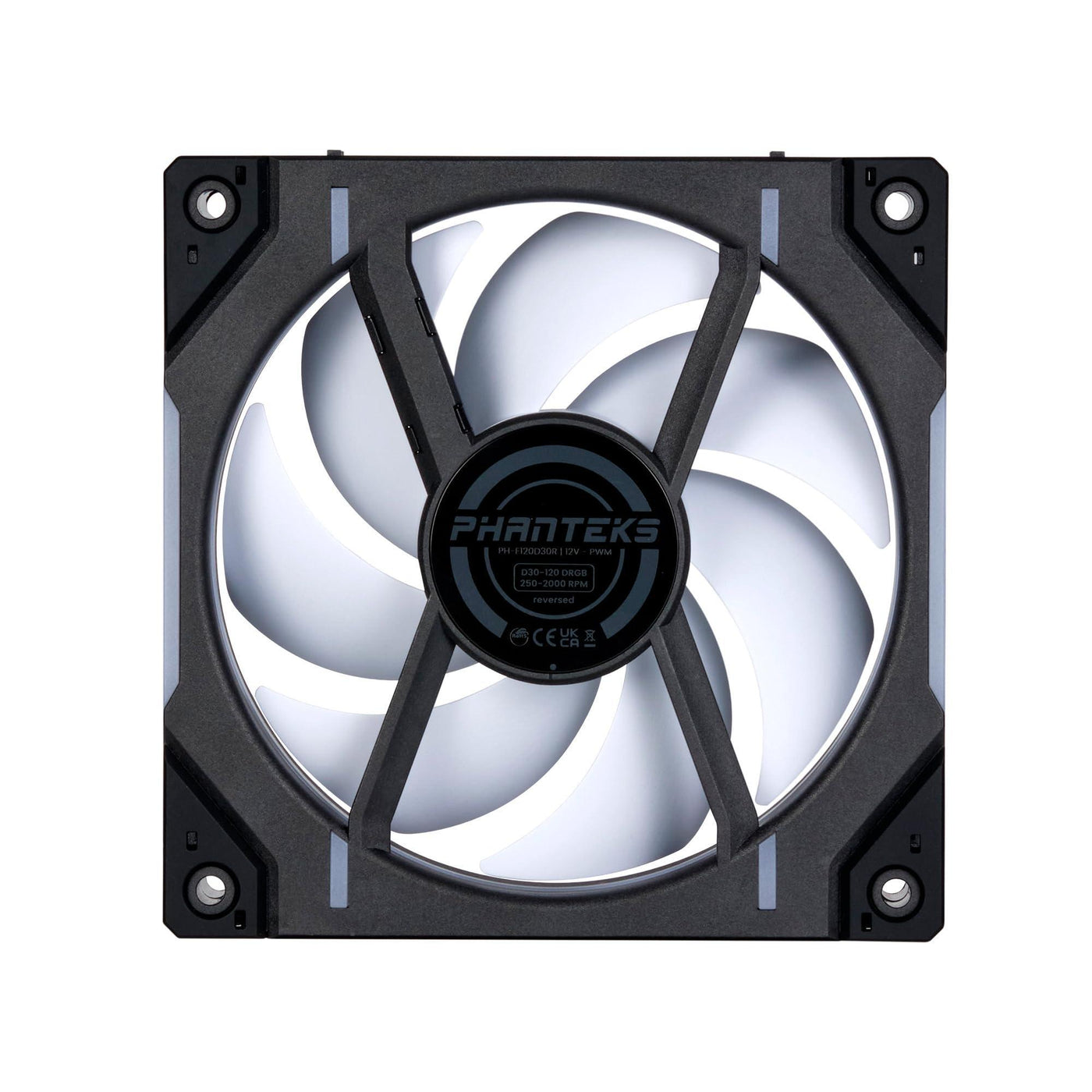

Details: The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds. The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system. Type:Case Fan. Wind Direction:Reversed. Color:White Matte blade / Black Fan Frame. Materials: PBT (Polybutylene terephthalate). Fan Size:120 x 120 x 30 mm. Bearing Type:FDB (Fluid Dynamic Bearing). Blade Geometry: Seven Blades Design- White Matte. Rated Voltage FAN: 12V LED: 5V. Operating Voltage Range:5~13.2V. PWM: Yes. Rated Current (Ampere): 0.15A LED:0.45A(Max). Locked Current: Polarity Protection. Power Consumption: less or equal 1.8W. Speed:250-2000 plus-minus 10% RPM. Max. Airflow:61.5 CFM. Max. Air Pressure:2.72 mm H2O. Noise Level:31.8 dB(A). Fan Connector:4-Pin PWN. Fan Cable Length:700 mm / 27.56 in. D-RGB Connector:3-Pin JST Daisy-chain. D-RGB Cable Length:600+100 mm / 23.62+3.94 in. LED Number:32 (D-RGB). LED Rated Voltage DC:5V (+5V/D/GND). LED Rated Current Max:0.45A. MTBF (Life Expectance):50,000hrs at 40 degree Celsius. Weight: 850 g (3pcs) / 1.87 lb.
EAN: 0886523003052
Package Dimensions: 7.2 x 5.0 x 4.0 inches
