Brand: HighPoint
Features:
- Truly Platform Independent Dedicated PCIe 4.0 x16 direct to CPU NVMe RAID Solutions

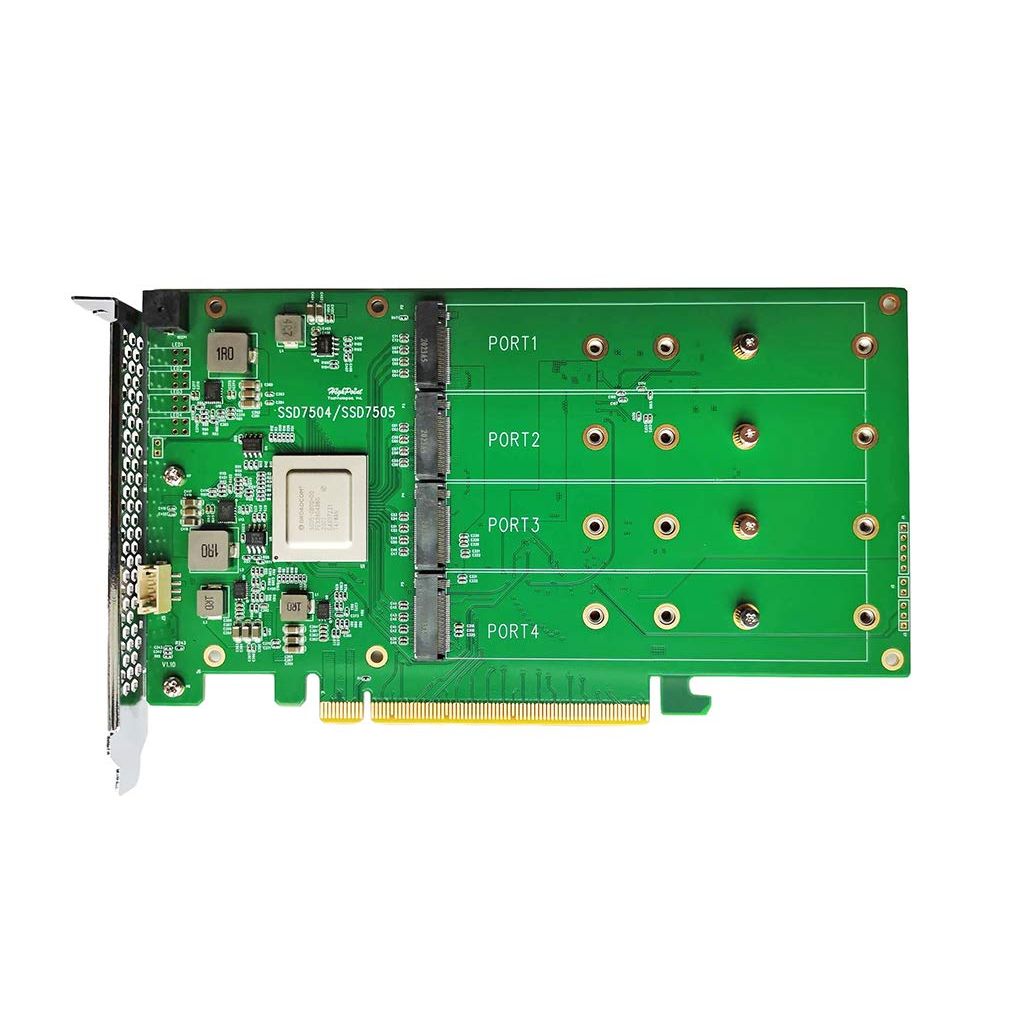

- 4x M.2 NVMe (2242/2260/2280/22110) PCIe 4.0 devices / PCIe Gen 3 Backwards Compatible
- Truly Platform Independent: No Motherboard Bifurcation Required.

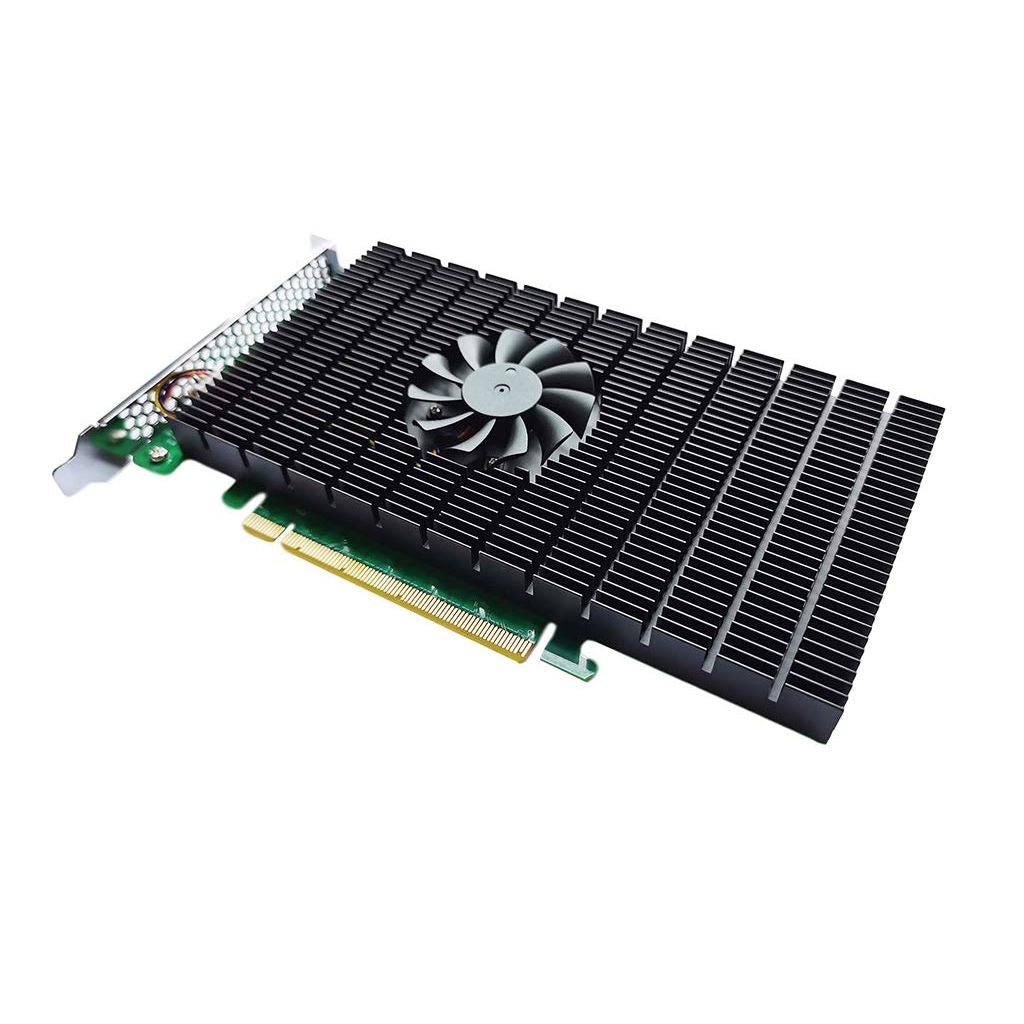

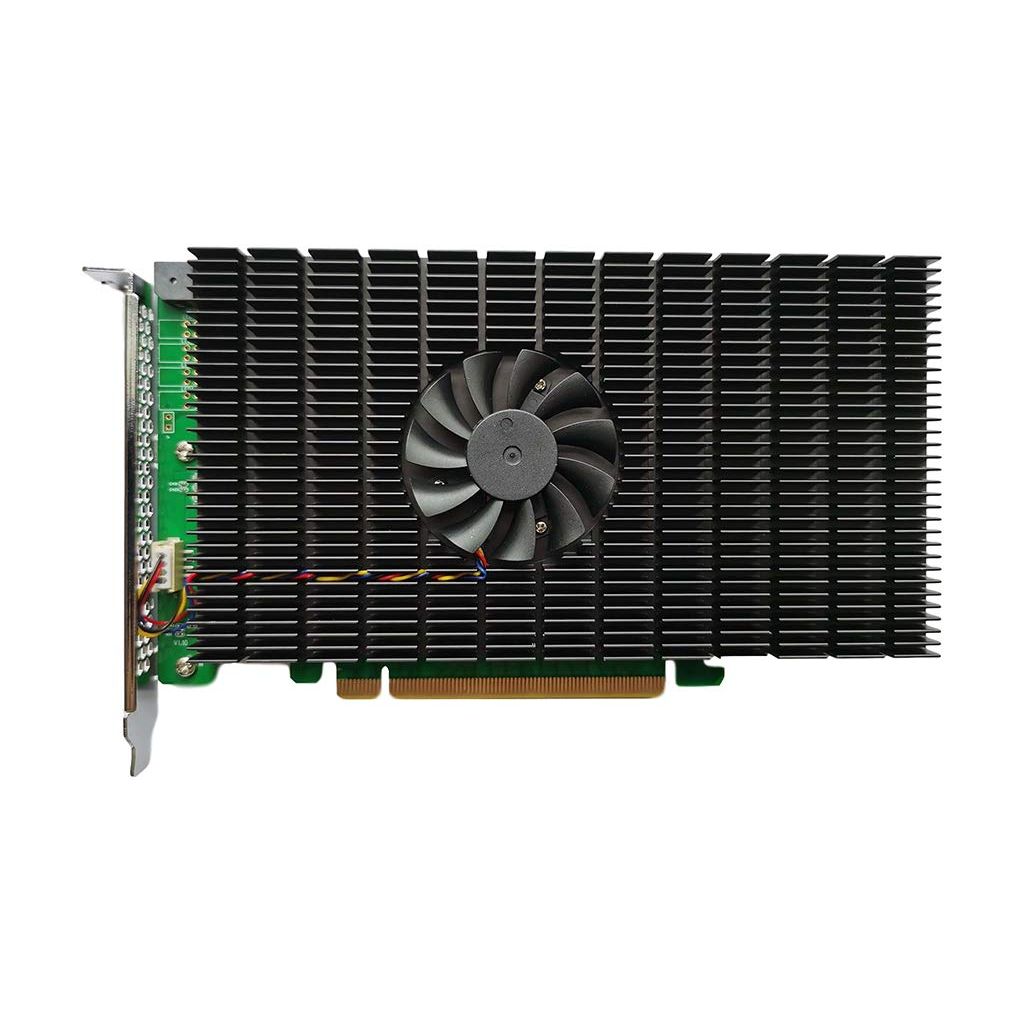

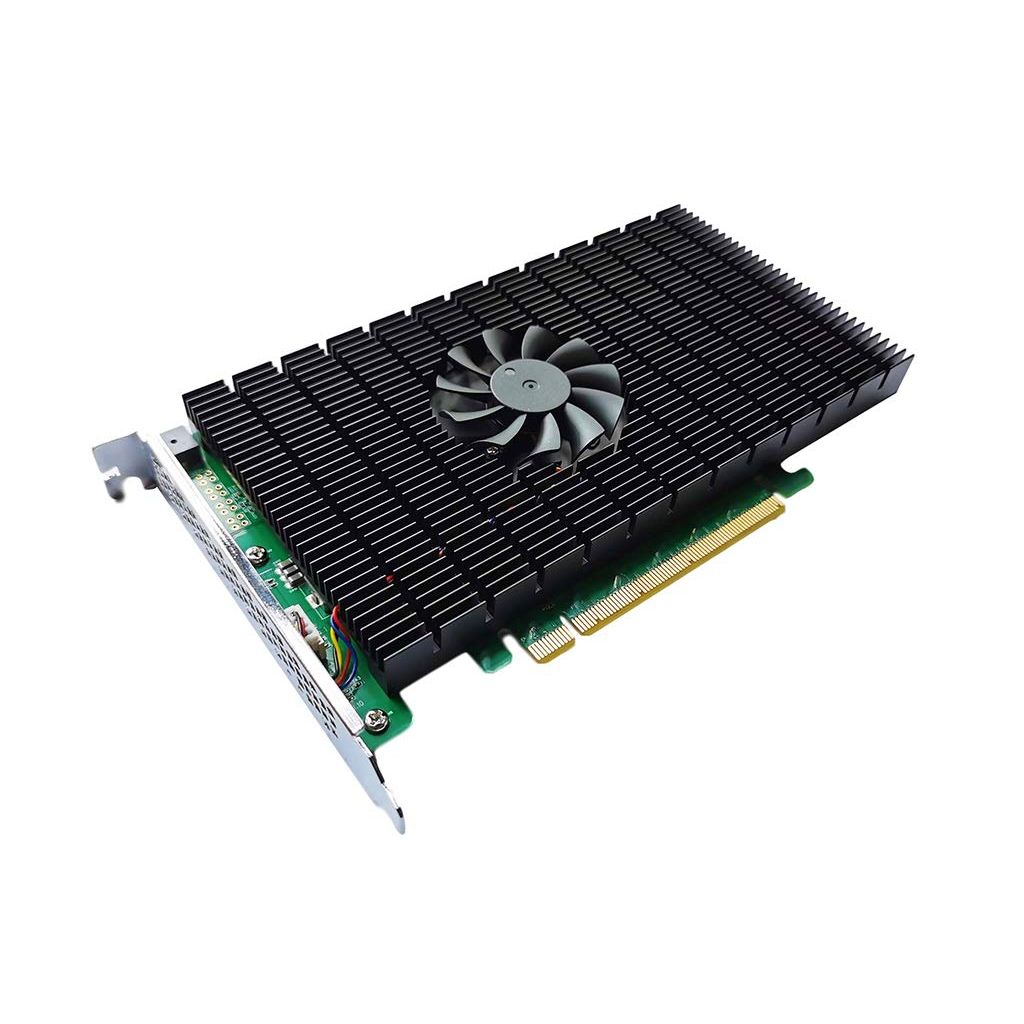

- Low-Noise Hyper-Cooling Solution & Integrated SSD TBW and temperature monitoring capability
- RAID 0, 1, 10 Support for Windows, Linux and Mac
- Compatible with HP and Dell Systems
Binding: Personal Computers
Release Date: 31-08-2020
model number: SSD7505
Part Number: SSD7505

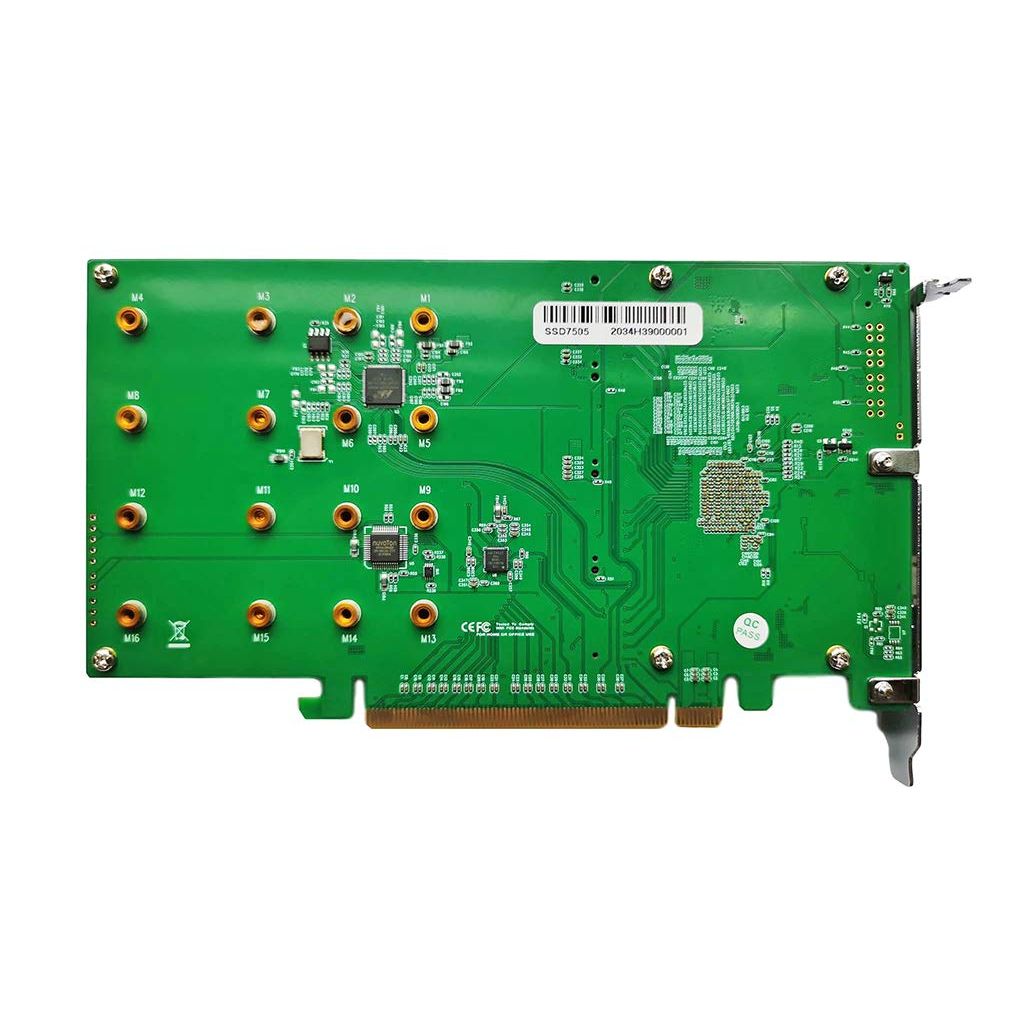

Details: HighPoint’s 7500 Series combine dedicated, cutting edge PCIe Gen 4 x16 host connectivity with our industry proven RAID technology to deliver unbeatable storage performance. HighPoint SSD7500 series controllers are truly independent NVMe RAID solutions. SSD7500 series controllers do not require motherboard platforms with Bifurcation support, or any specialized software released by SSD manufactures; any AMD-based system with a dedicated PCIe 4.0 x16 slot can now take full advantage of the industry’s fastest storage solution. In addition, SSD7500 series controllers are fully backwards compatible with Intel PCIe 3.0 platforms, enabling customers to take full advantage of advanced Gen 4 storage media without migrating to a new computing environment. Bootable RAID Support for Windows and Linux: SSD7500 series NVME RAID controllers can be used to configure bootable RAID or single NVMe SSD configurations for Windows and Linux systems. RAID 1/0 (Security & Speed)-Unique to HighPoint NVMe RAID solutions, RAID 1/0 (also known as RAID 10) requires a minimum of 4 NVMe SSD’s – it will mirror the data of one stripe array to a second, hidden stripe array for security. RAID 1/0 is capable of delivering read performance on par with RAID 0, and is superior to RAID 5 for NVMe applications. Unlike RAID 5, RAID 1/0 doesn’t necessitate additional parity related write operations, which reduce the TBW life span of NVMe SSD’s. RAID 0 (Speed)-Also known as a “stripe” array, this mode delivers Maximum Performance, and requires a minimum of 2 NVMe SSD’s. RAID 1 (Security)-This mode creates a hidden duplicate of the target SSD, and requires 2 NVMe SSD’s to configure. RAID 1 is ideal for bootable volumes. New for Gen 4! Ultra-Efficient, Low-Noise Hyper-Cooling Solution: SSD7500 series RAID controllers benefit from a completely new, ground-up redesign of our proven NVMe cooling system. HighPoint’s Low-Noise Hyper-Cooling solution ensures your NVMe SSD’s consistently operate within their recommended temperature thresholds, even under sustained heavy I/O, by combining a full length anodized aluminum heat sink with an ultra-durable, near-silent fan, and high-conductivity thermal pad. This innovative, ultra- efficient cooling system rapidly transfers waste heat away from critical NVMe and controller componentry, without introducing unwanted distraction into your work environment.
EAN: 0643653750511
Package Dimensions: 7.7 x 4.4 x 0.7 inches
