Brand: Tripp Lite
Color: Black
Features:

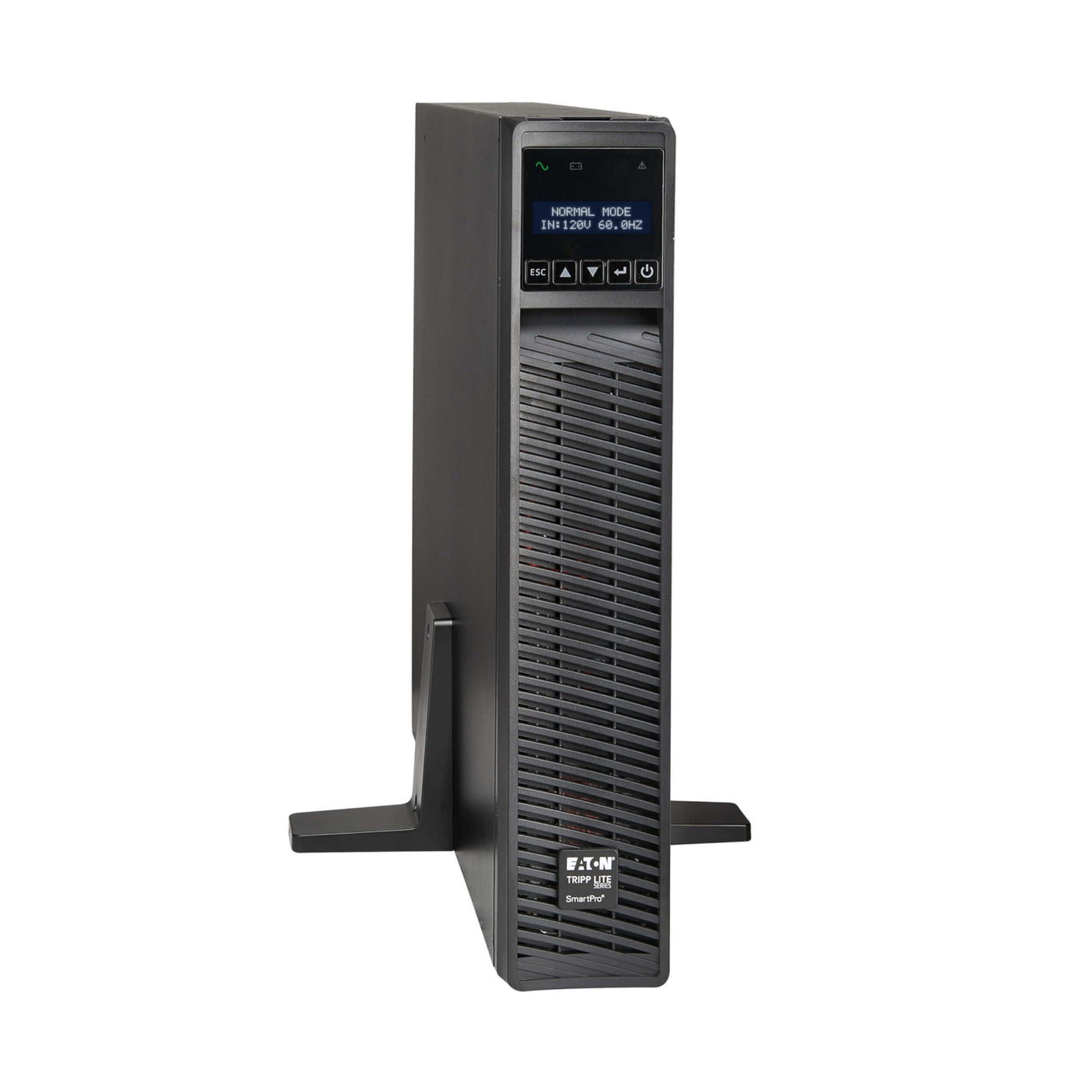

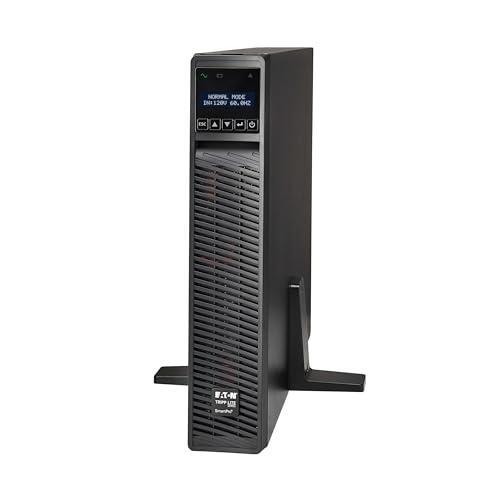

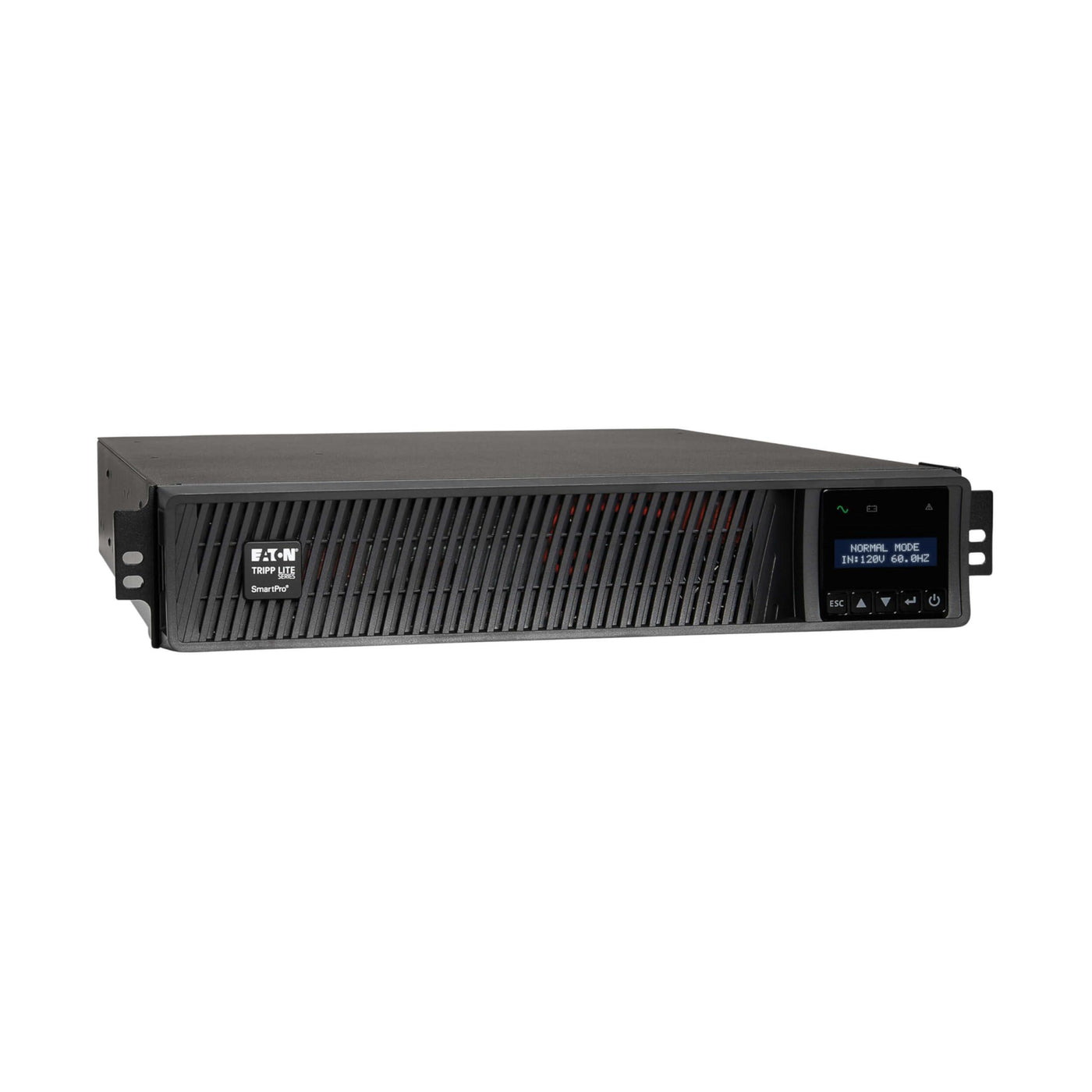

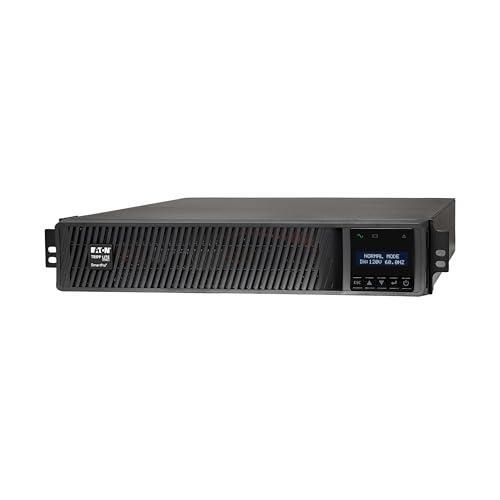

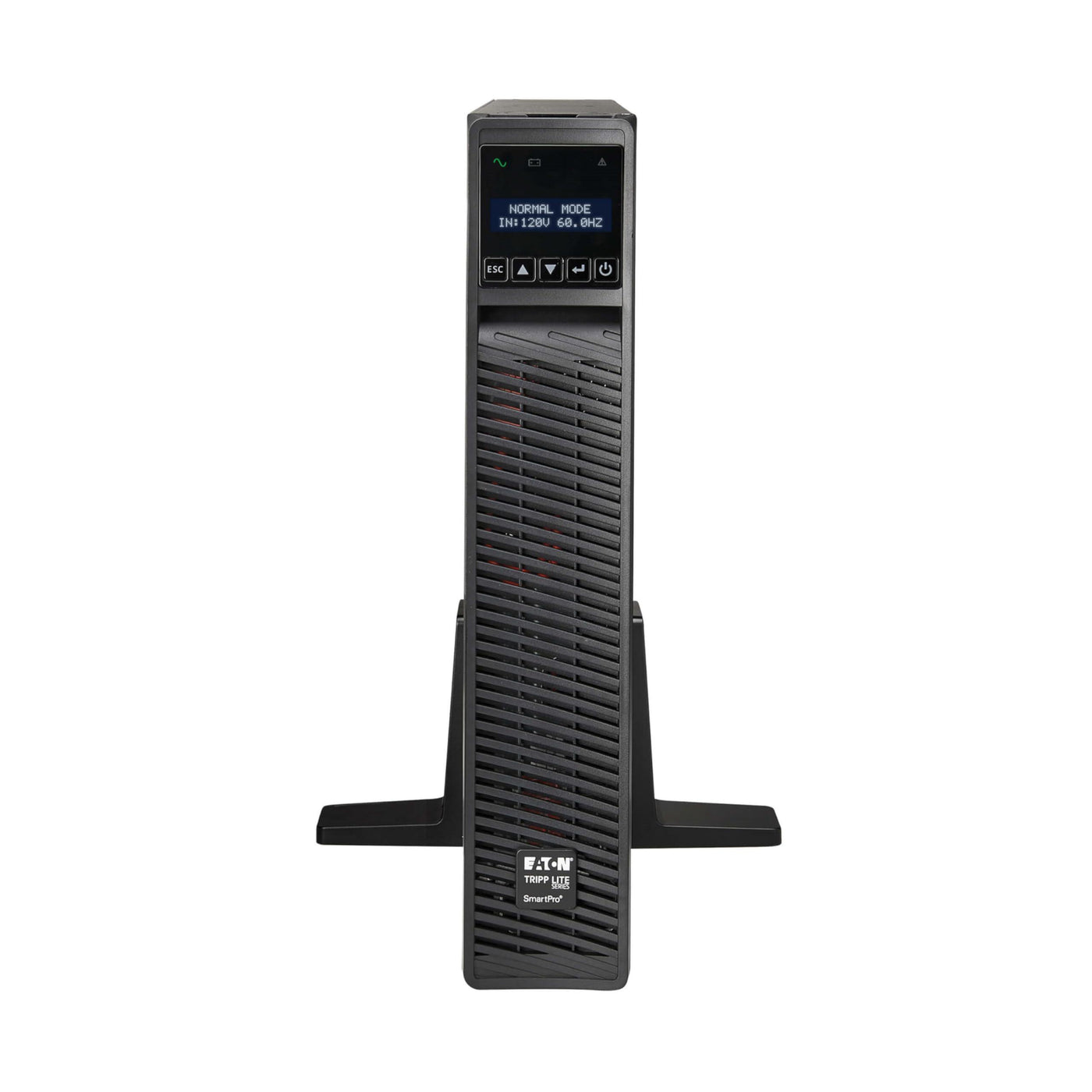

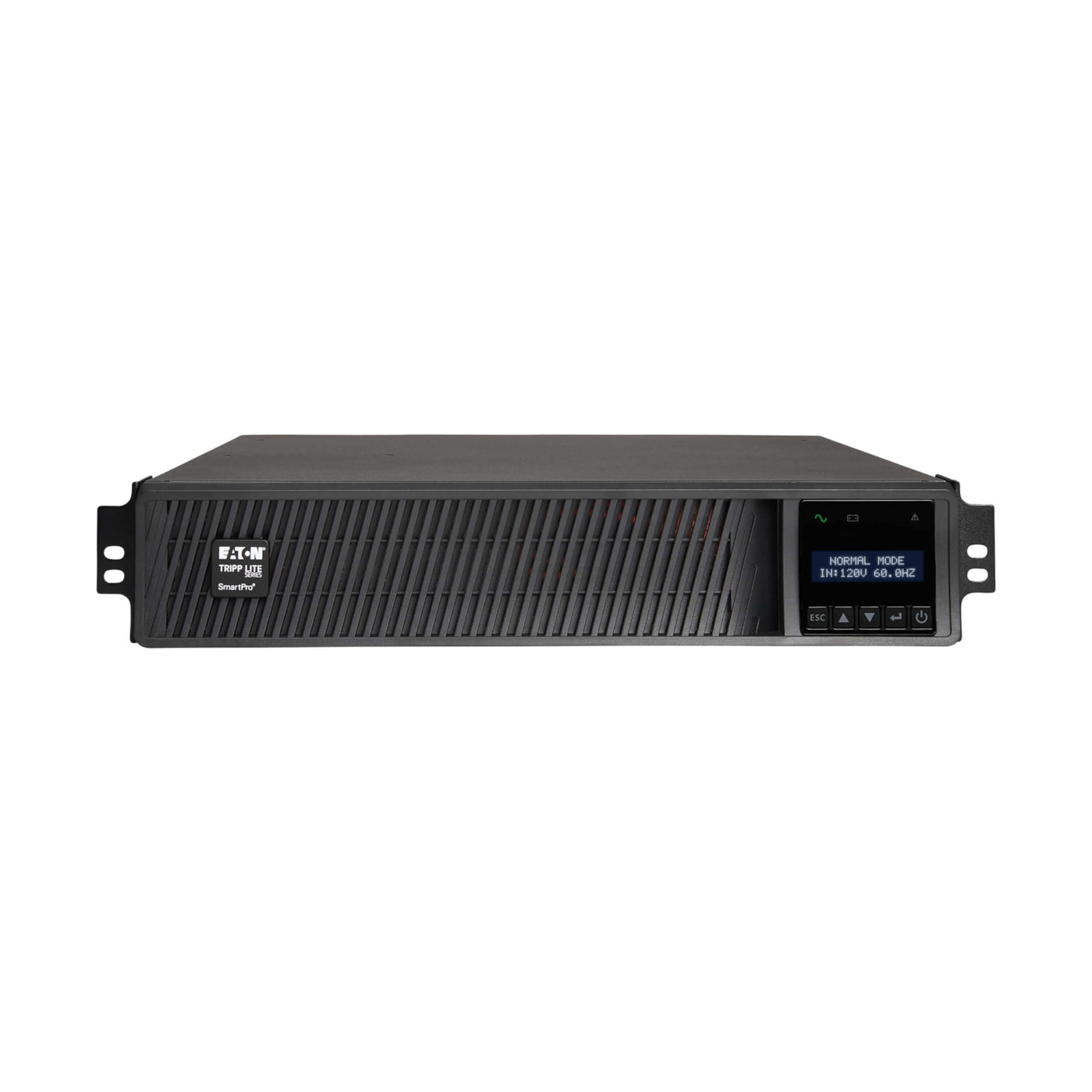

- 2200VA/1920W line interactive 2U rack / tower UPS, Sine wave output
- 120V output, Corrects brownouts and overvoltages from 83V to 145V

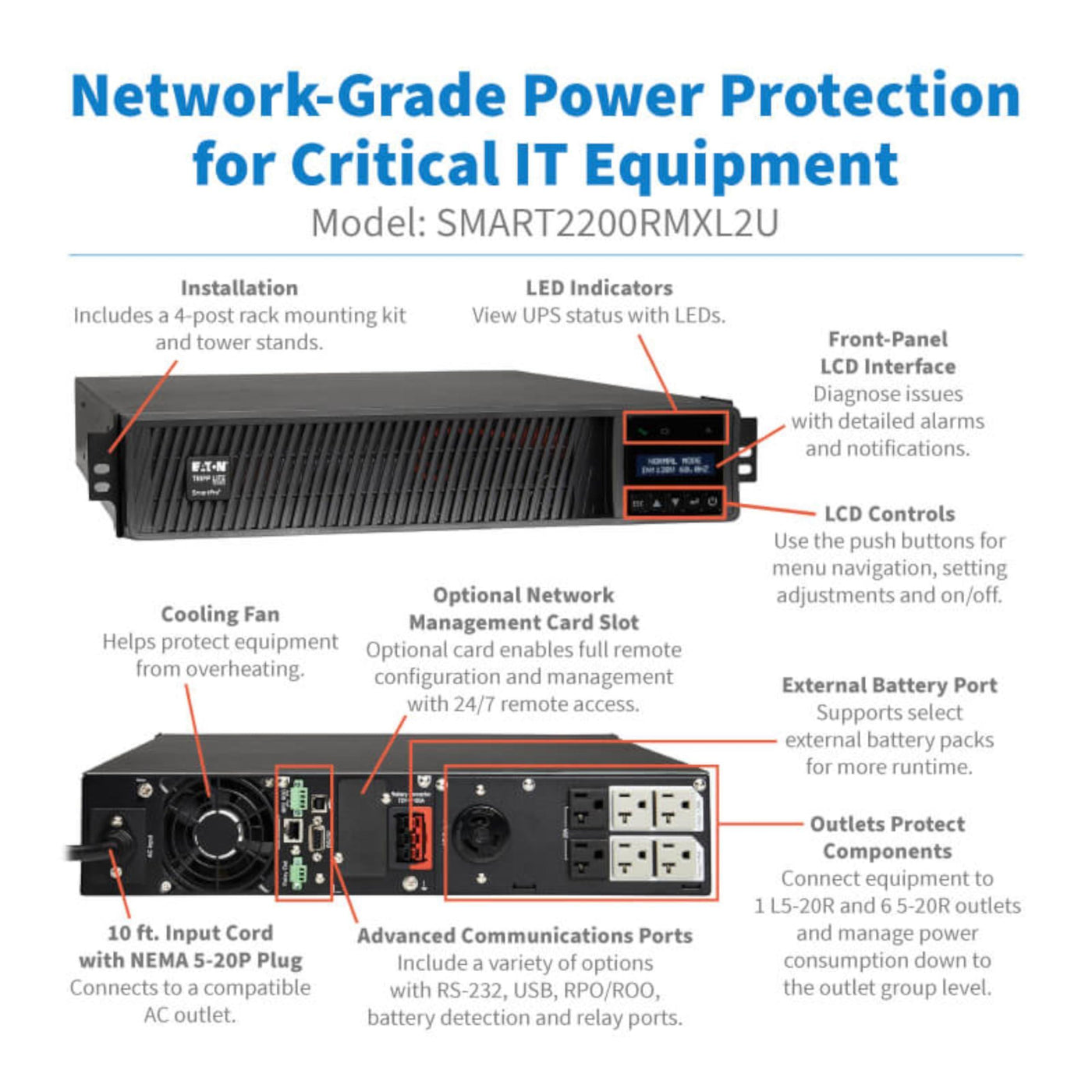

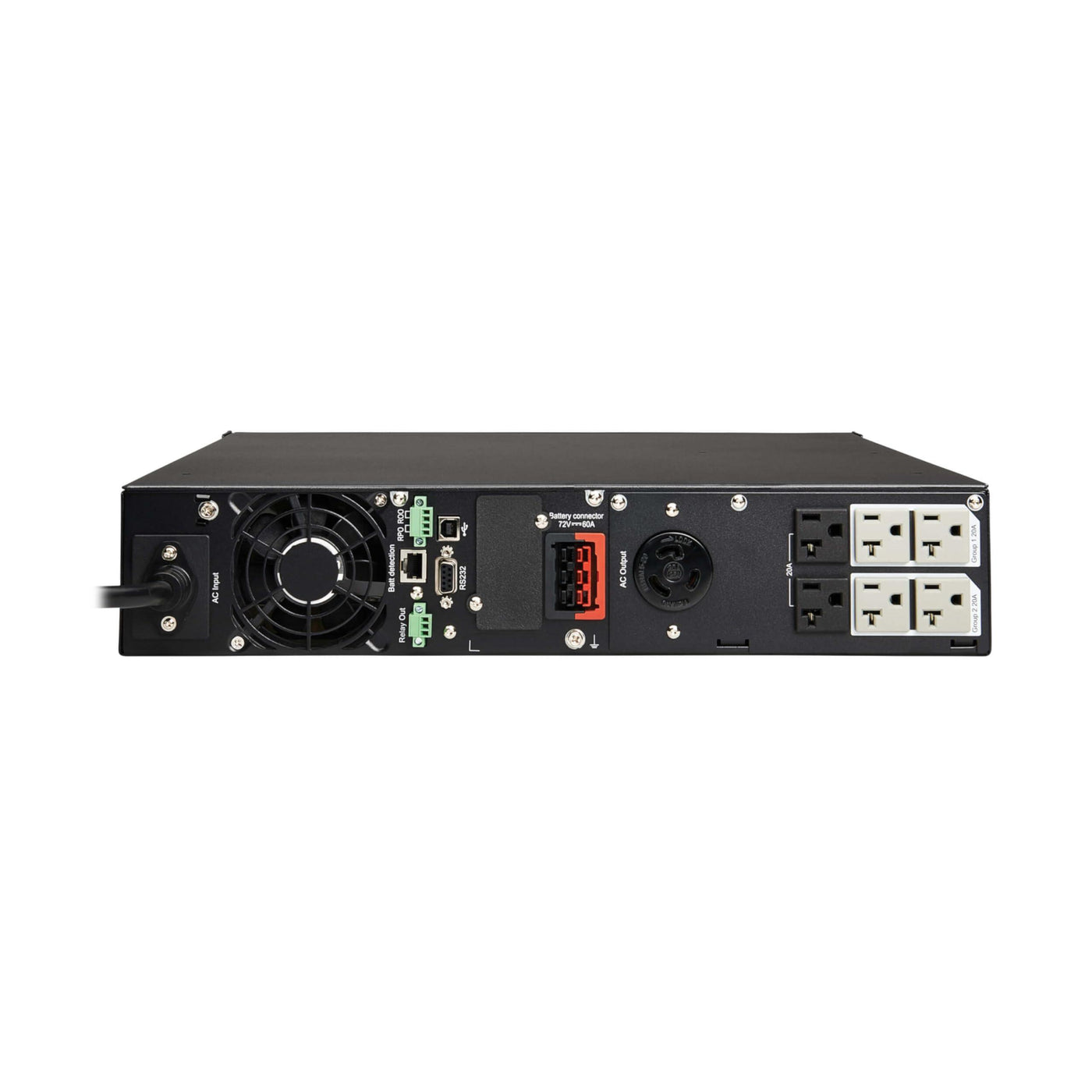

- USB, RS232, EPO and slot for optional SNMP/Web card
- Expandable runtime, interactive LCD interface

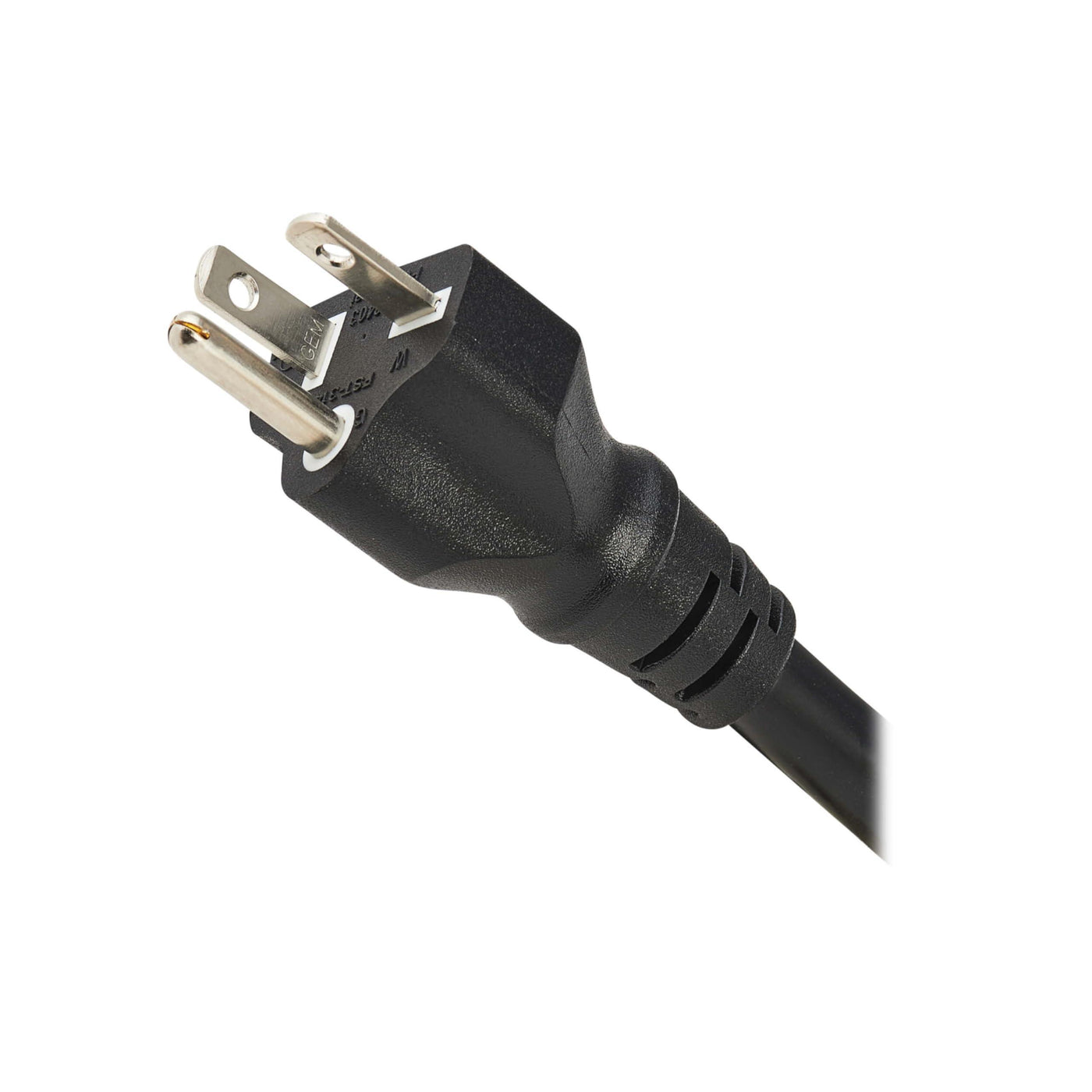

- NEMA 5-20P input, 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
Binding: Electronics
Release Date: 06-07-2006
model number: SMART2200RMXL2U
Part Number: SMART2200RMXL2U
Details: 1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments: This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your IT equipment or destroy data. The SMART2200RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages: The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72VRM2U, sold separately). Optional LX Platform Network Management Card Allows Remote Access 24/7: The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. NEMA Outlets Protect Your Connected Components: One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split into two independently switchable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions: AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART2200RMXL2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better: This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. ENERGY STAR-Certified to Help You Save Money and Protect the Environment: By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment. Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring: The two-line front-panel LCD monitoring screen features ten selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a green light means utility power is on, an orange light means the UPS is in battery mode and a red light indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations. Advanced Communications Ports Allow for Automatic Saves and Shutdowns: RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment. Versatile Installation Options: You can mount the SMART2200RMXL2U in just 2U of space in an EIA-standard 19-inch rack using the included hardware. At 23.7 inches deep, the UPS mounts in short-depth racks and other compact spaces. You can also adapt it for tower installation using the included support stands. The 10-foot power cord with NEMA 5-20P plug connects to a compatible AC outlet.
EAN: 0037332118059
Package Dimensions: 24.5 x 22.5 x 8.8 inches
Languages: English
