hdmi splitter: splitter with edid management transmits 4k video and audio from an hdmi source to eight hdmi displays at the same time. it also connects to an hdmi source device, such as a computer or blu-ray player, and transmits a 4k audio/video signal to eight hdmi monitors, projectors or televisions simultaneously. the b118-008e-uhd-2 is an hdmi splitter, it sends the same image to all connected displays. if you would like to extend an image over multiple displays you need an mst hub, like the b156-002-hd-v2.
• 4k video & audio: using standard 28 awg hdmi cable, the b118-008e-uhd-2 distributes a 4k audio/video signal (at 60 hz) up to 15 feet (4 meters). be sure the hdmi cables connecting the splitter to the source and displays are no longer than 15 feet. support dts-hd, dolby truehd, dolby digital plus and lpcm 7.1-channel surround sound. it also features lip sync pass-through, 36-bit deep color, xvycc and x.vcolor, while receiving and transmitting up to 18 gbps of bandwidth with no signal loss
• user adjustable edid: extended display identification data allows the source device to identify the capabilities of each connected display and transmit to the highest video and audio resolutions shared by all displays. in the event you want to override the automatic detection setting and control the audio/video output yourself, you may do so by adjusting the built-in dip switches.

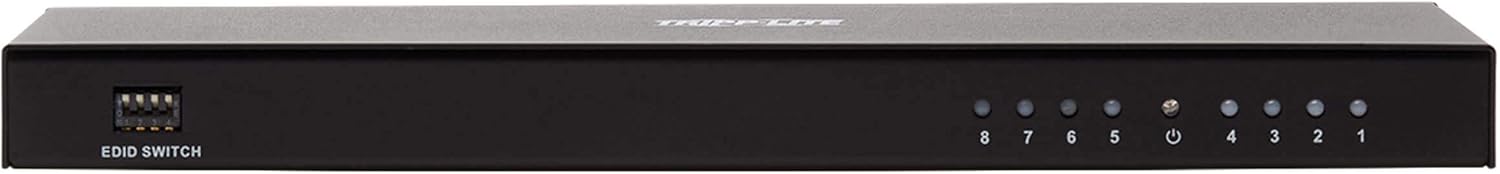

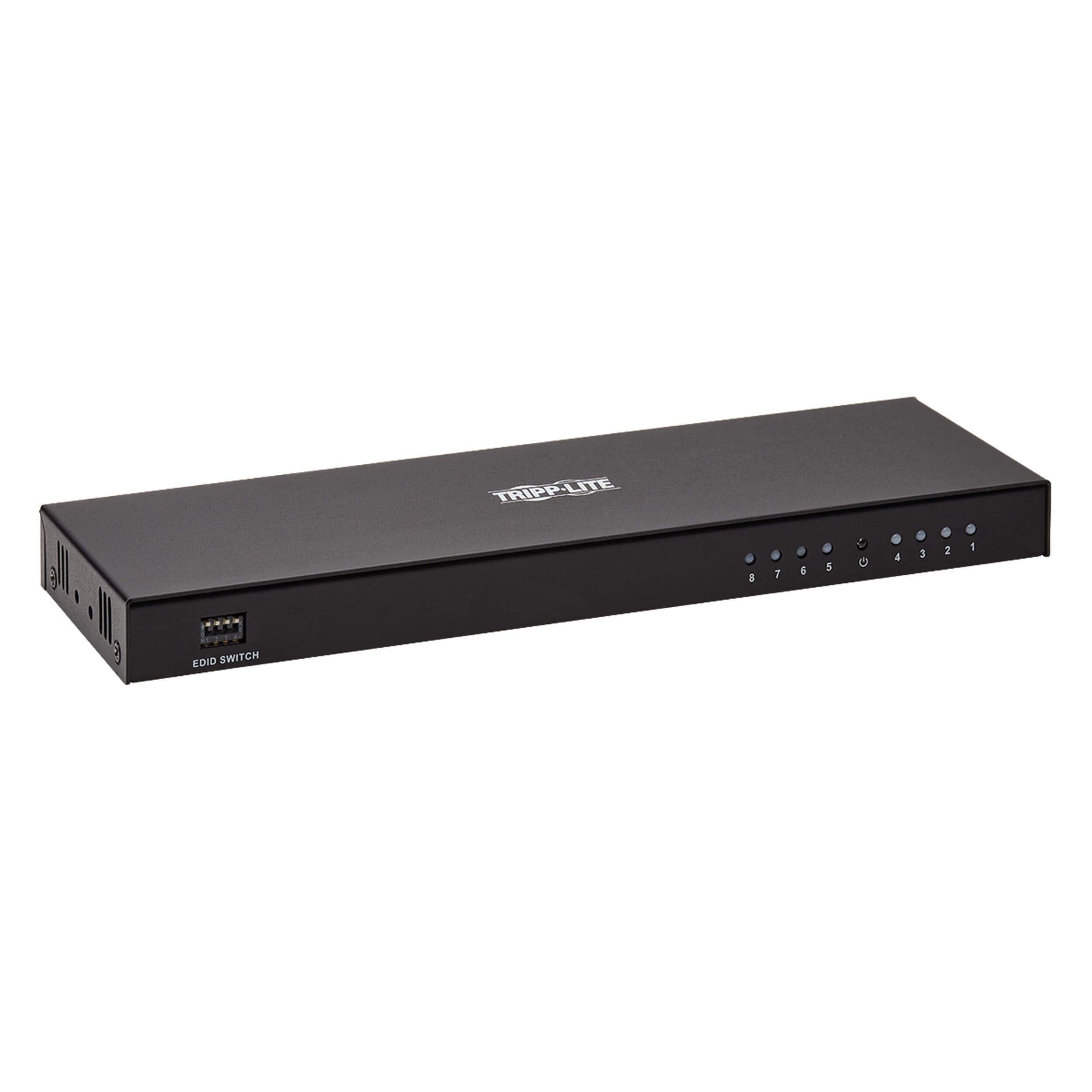

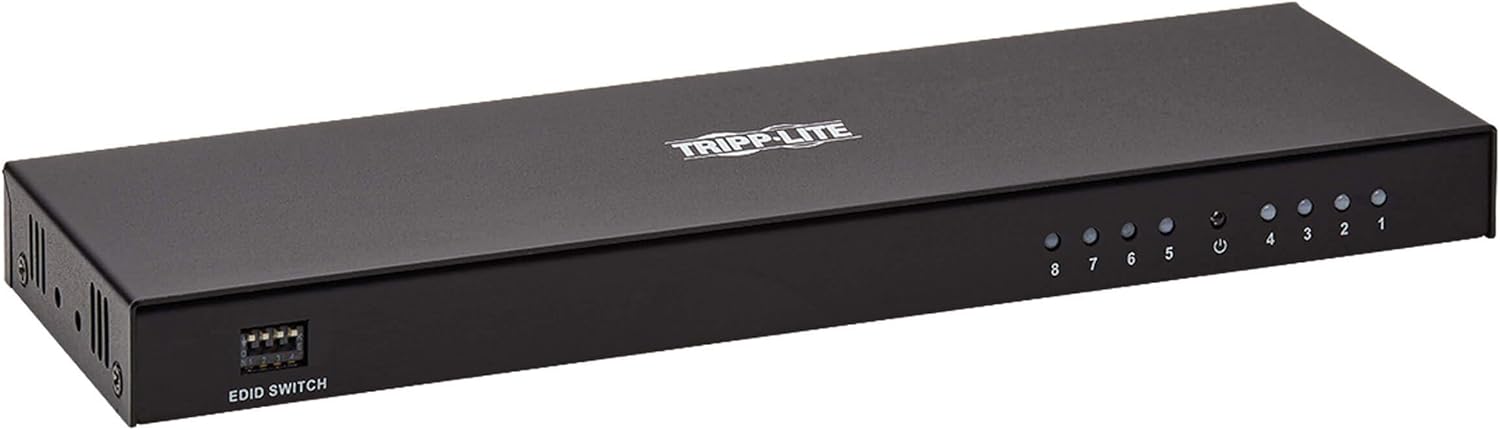

• ready to use: the plug-and-play splitter comes ready to connect right out of the package and requires no additional software or drivers. its durable metal housing is designed to last a long time and fit seamlessly into any home or office application. an amber led indicates the unit is receiving power, and blue leds indicate connected hdmi inputs. use the included hardware to install the unit on a desktop or mount it to a wall.

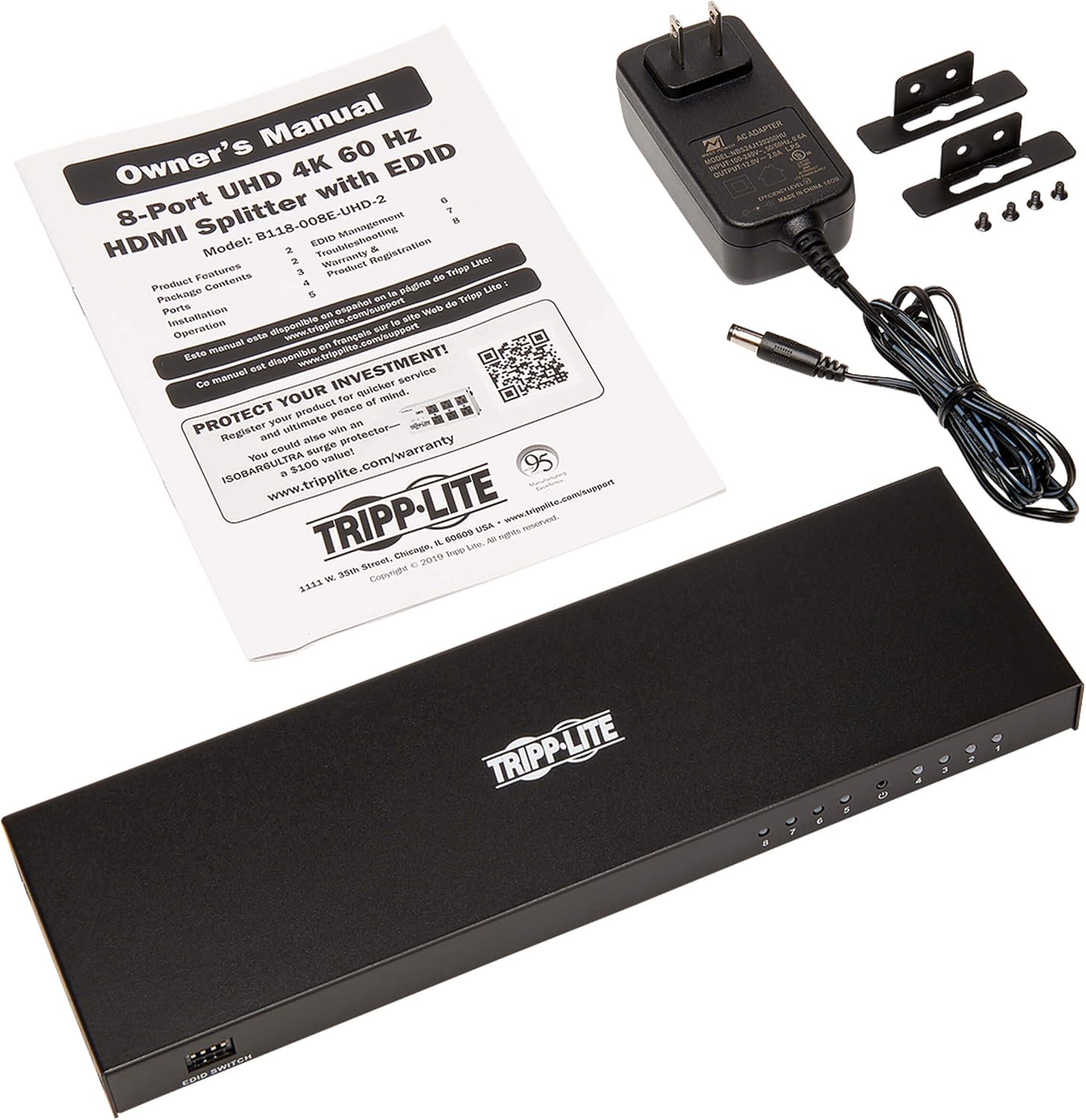

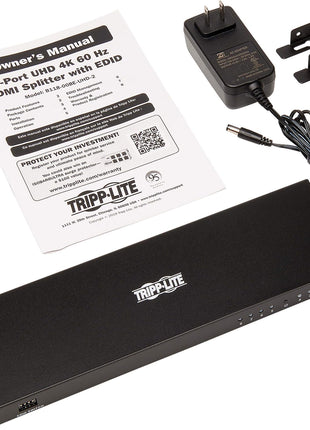

• Included components: B118-008E-UHD-2 8-Port HDMI 2.0 Splitter; External power supply with 5 ft. cord & NEMA 1-15P plug (Input: 100–240V, 50/60 Hz, 0.6A; Output: 12V 2
