Brand: Thermaltake
Color: White
Features:

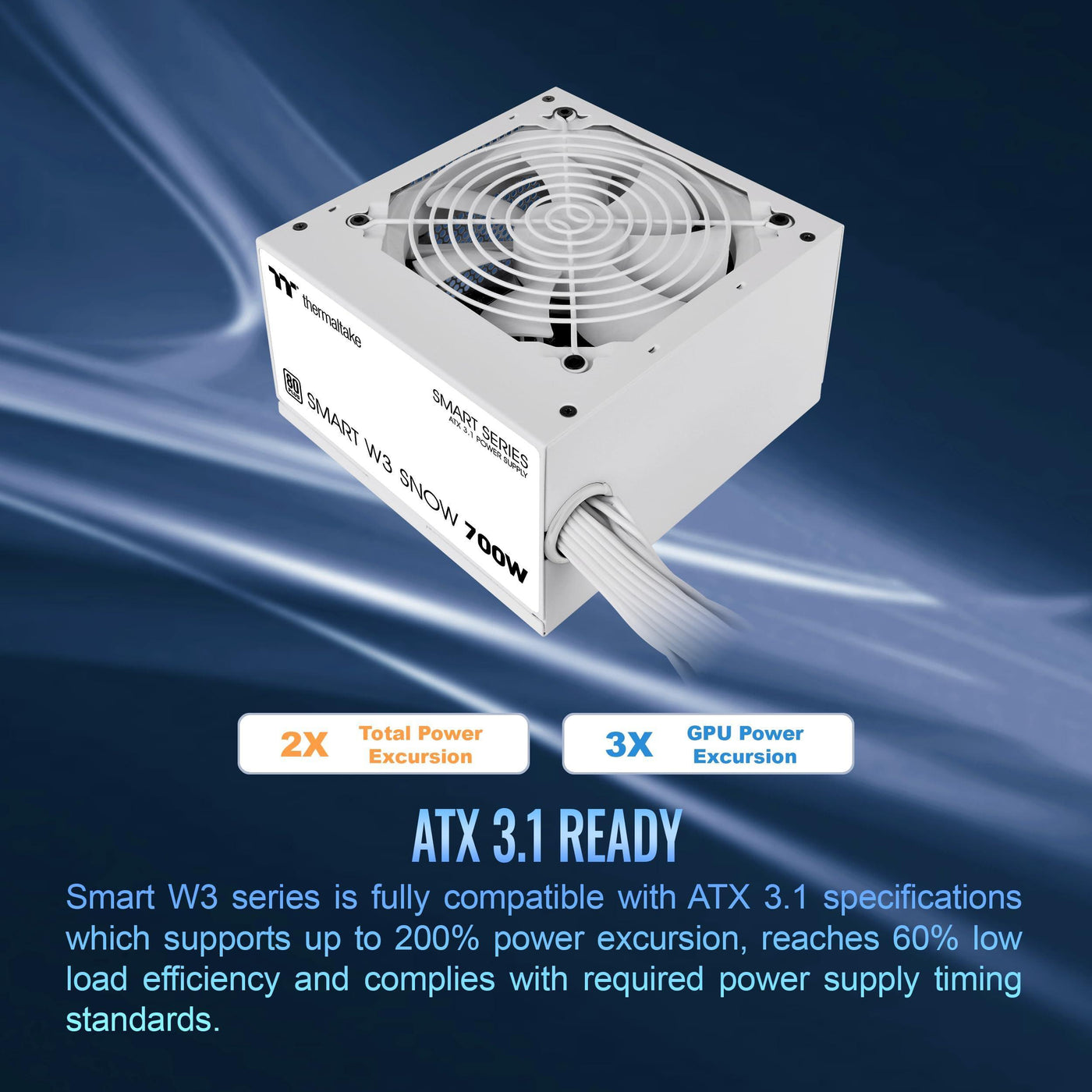

- Intel ATX 3.1 Compatibility & 80 PLUS Certification: Supports Intel ATX 3.1 standards with 200% power excursion and 60% low load efficiency. 80 PLUS certified for up to 80% efficiency, reducing energy waste.
- High-Quality Capacitor & Reliable Output: 105°C/221°F capacitor ensures durability and stability. Provides 700W continuous power at 40°C/104°F.

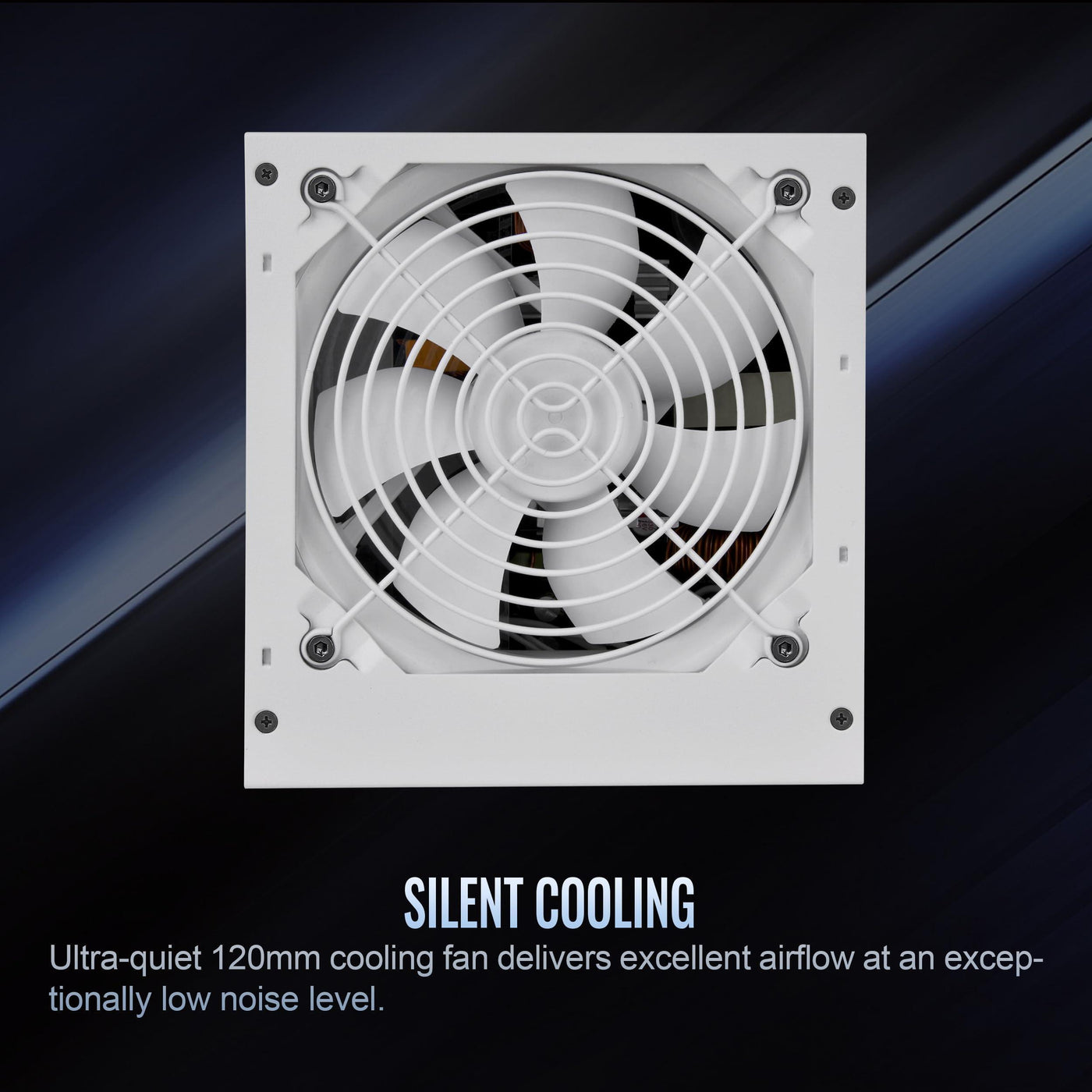

- Ultra-Quiet 120mm Cooling Fan: Offers excellent airflow with minimal noise.

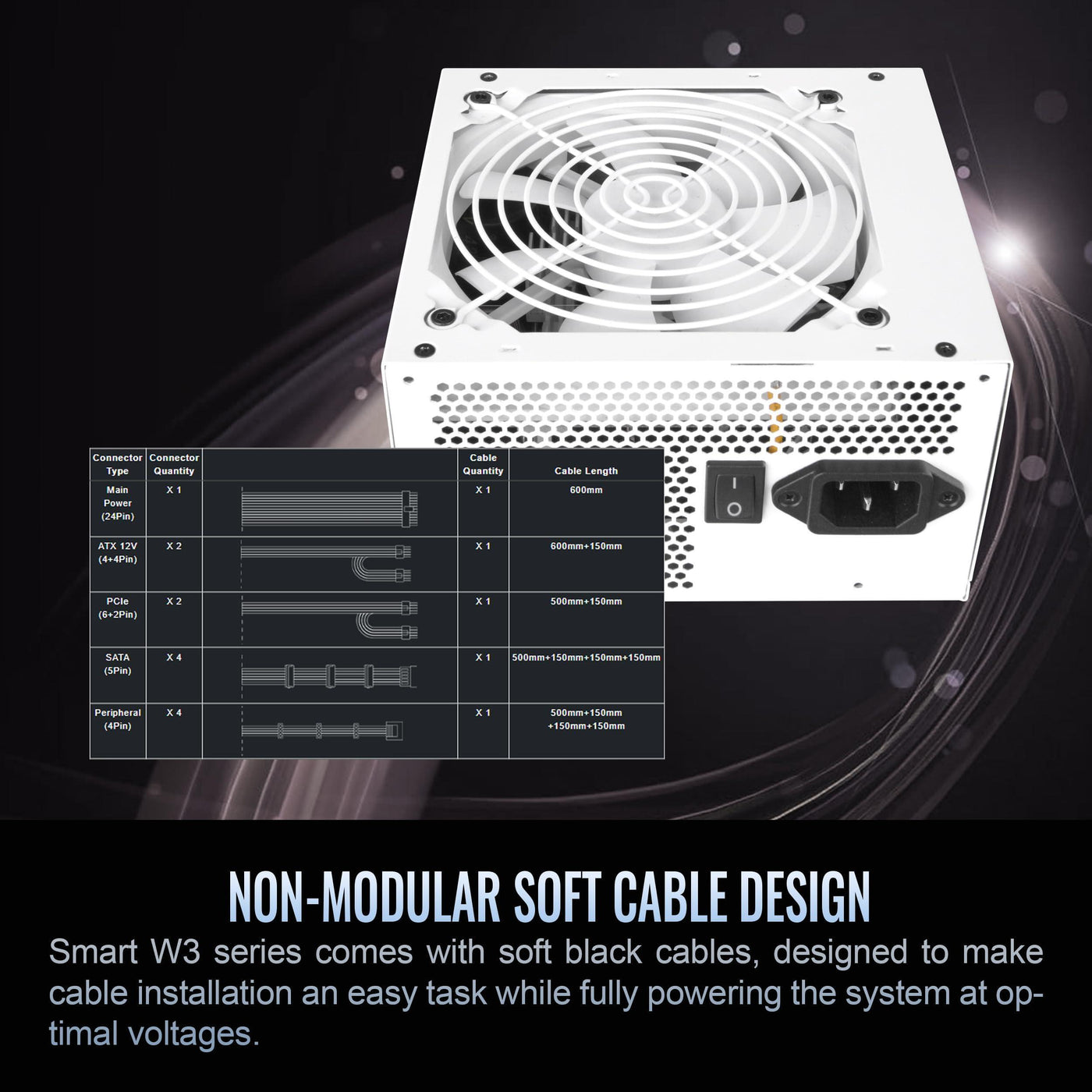

- Low-Profile Flat Cables & Compact Design: Simplifies cable management and fits easily into most cases with compact dimensions.
- Industry Grade Protections & Energy Efficiency: Features OCP, OVP, UVP, OPP, SCP, and OTP protections. Supports Intel C6/C7 states and ErP for better energy efficiency.
Binding: Electronics
Release Date: 12-08-2024
model number: SP3-700AH2NLW
Part Number: PS-SPW-0700NNFAWU-W

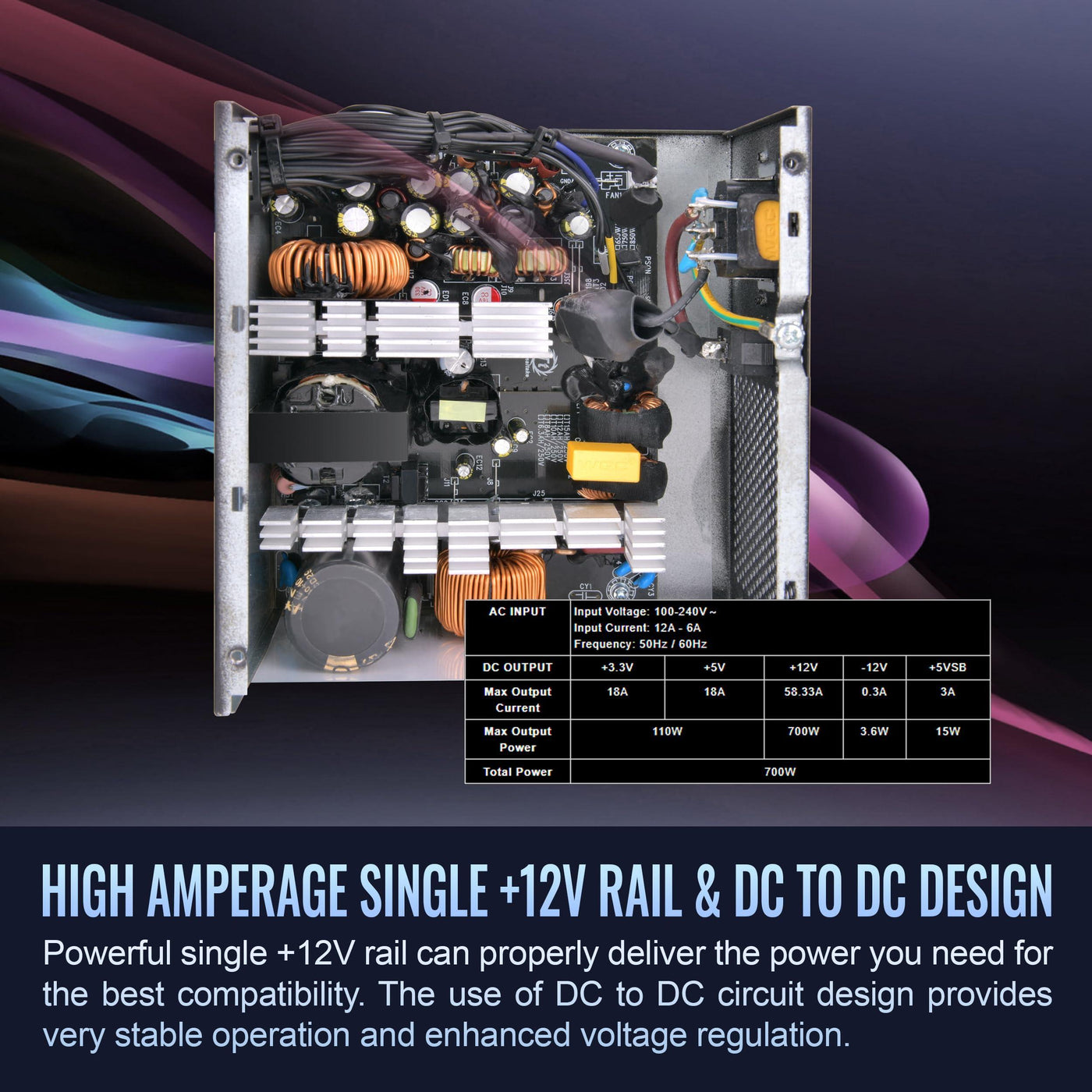

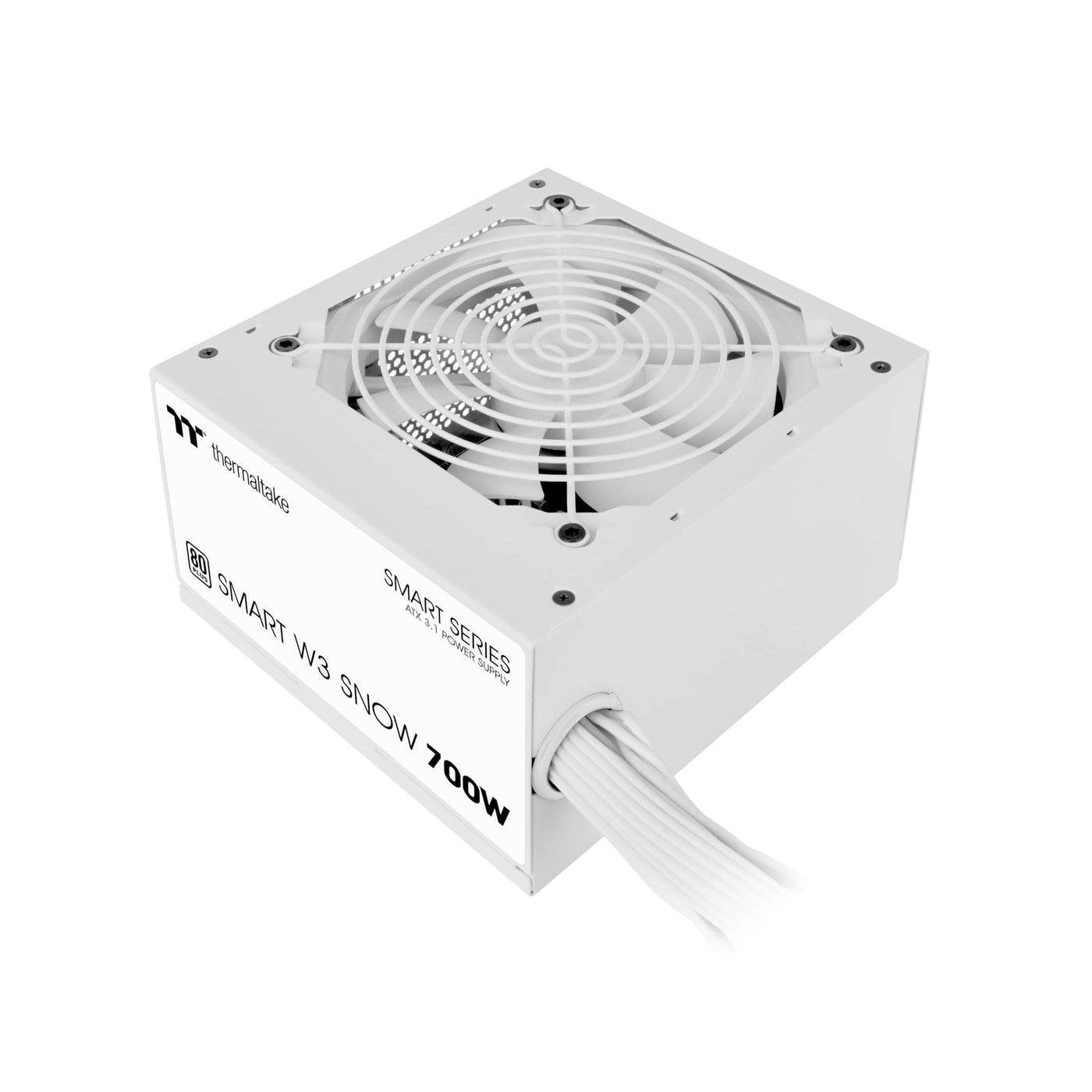

Details: The Thermaltake Smart W3 700W Snow is a reliable and budget-friendly power supply unit designed for everyday use. Fully compatible with Intel ATX 3.1 specifications, it supports 200% power excursion and maintains 60% low load efficiency. With an 80 PLUS certification, this PSU ensures up to 80% efficiency. It features a high-quality 105°C/221°F capacitor for durability, a powerful single +12V rail, and a DC-DC design for precise electrical output. Its ultra-quiet 120mm fan provides good airflow at low noise levels. Compact and efficient, it also includes multiple industry-grade protections. •P/N: PS-SPW-0700NNFAWU-W •Model: SP3-700AH2NLW •Type: Analog •Watts: 700W •Max Output Capacity: 700W •Color: White •Dimensions: 150mm(W)x86mm(H)x140mm(D) •PFC (Power Factor Correction): Active PFC •Power Good Signal: 100-150 msec •Hold Up Time: 17msec at 80% load •Input Current: 12A - 6A •Input Frequency Range: 50Hz/60Hz •Input Voltage: 100-240V～ •Operating Temperture: 5°C to + 40°C •Operating Humidity: 20% to 85% •Storage Temperture: -40°C to + 55°C •Storage Humidity: 10% to 95% •Cooling System: 12cm FDB Fan •Efficiency: Meet 80 PLUS® at 115Vac input. •MTBF: 100 •Safety Approval: CB/FCC/cTUVus/ICES/UKCA/CE/LVD/RCM •PCI-E 6+2PIN: 2 •Protection: OCP/OVP/UVP/OPP/OTP/SCP
EAN: 0841163097120
Package Dimensions: 9.6 x 7.4 x 4.1 inches
