Brand: MSI
Features:
- ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MAG X870E TOMAHAWK WIFI employs a 14 Duet Rail Power System (80A, SPS) VRM for the AMD X870E chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture

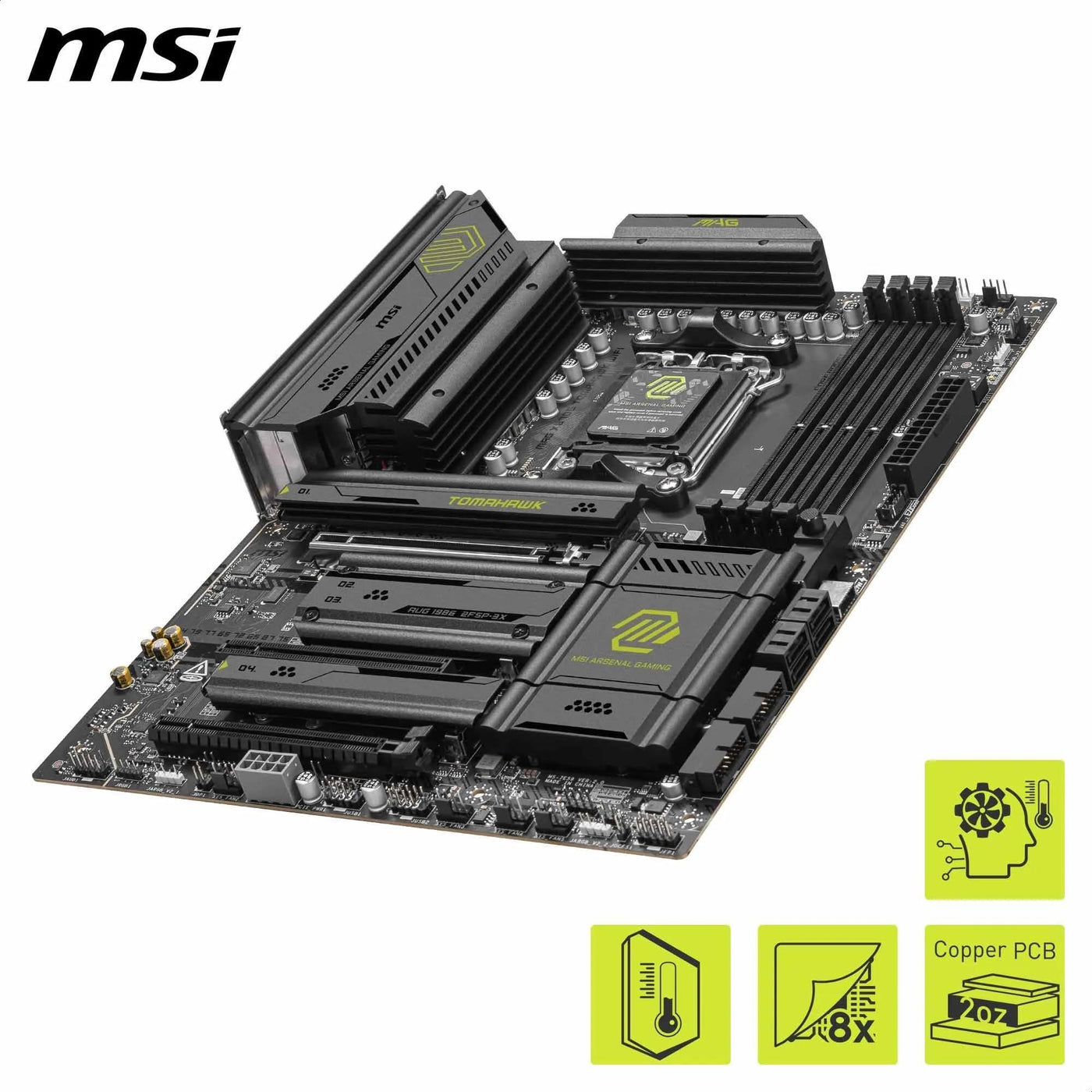

- FROZR GUARD - Premium cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, double-sided EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)

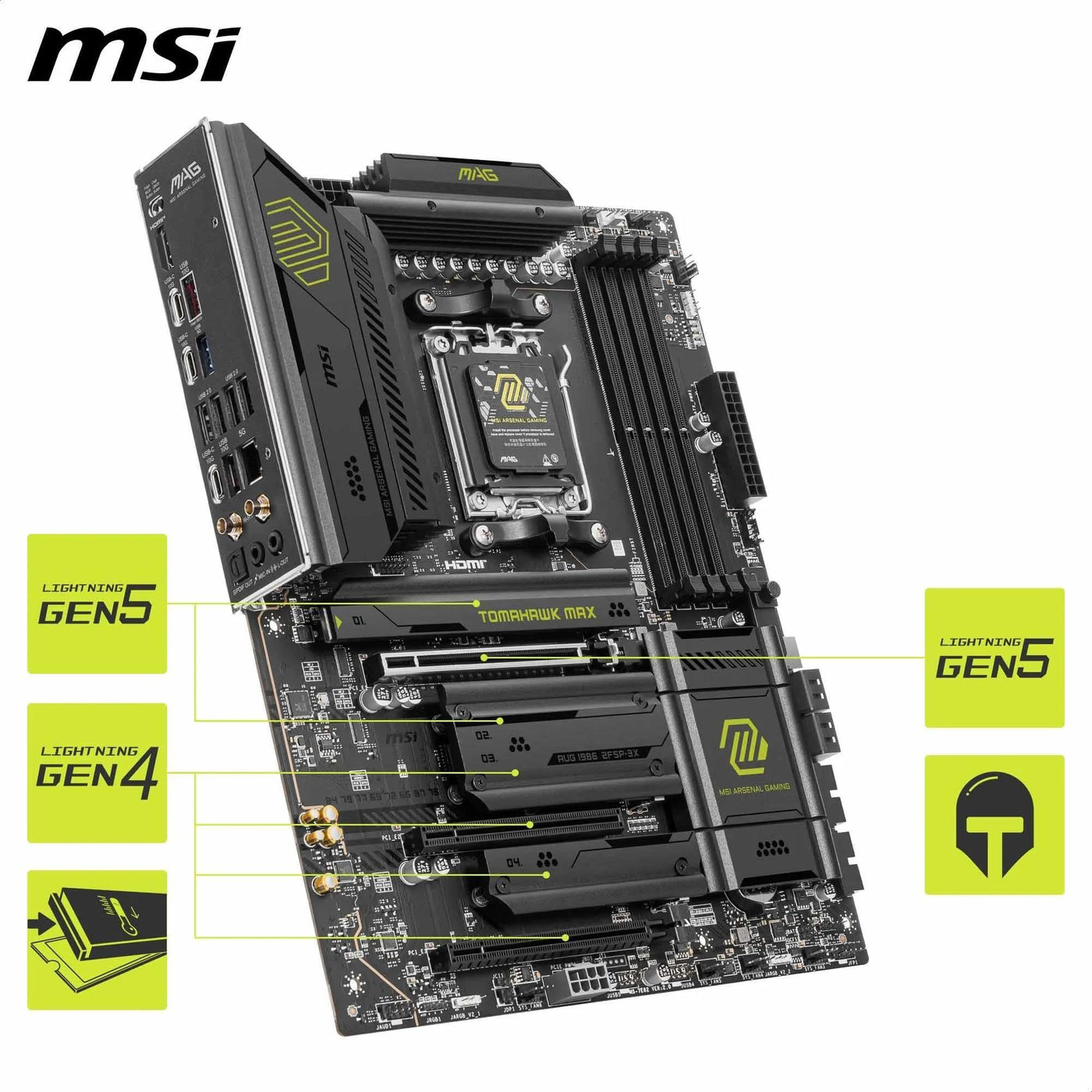

- DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8400+ MT/s); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II supports cutting-edge graphics cards

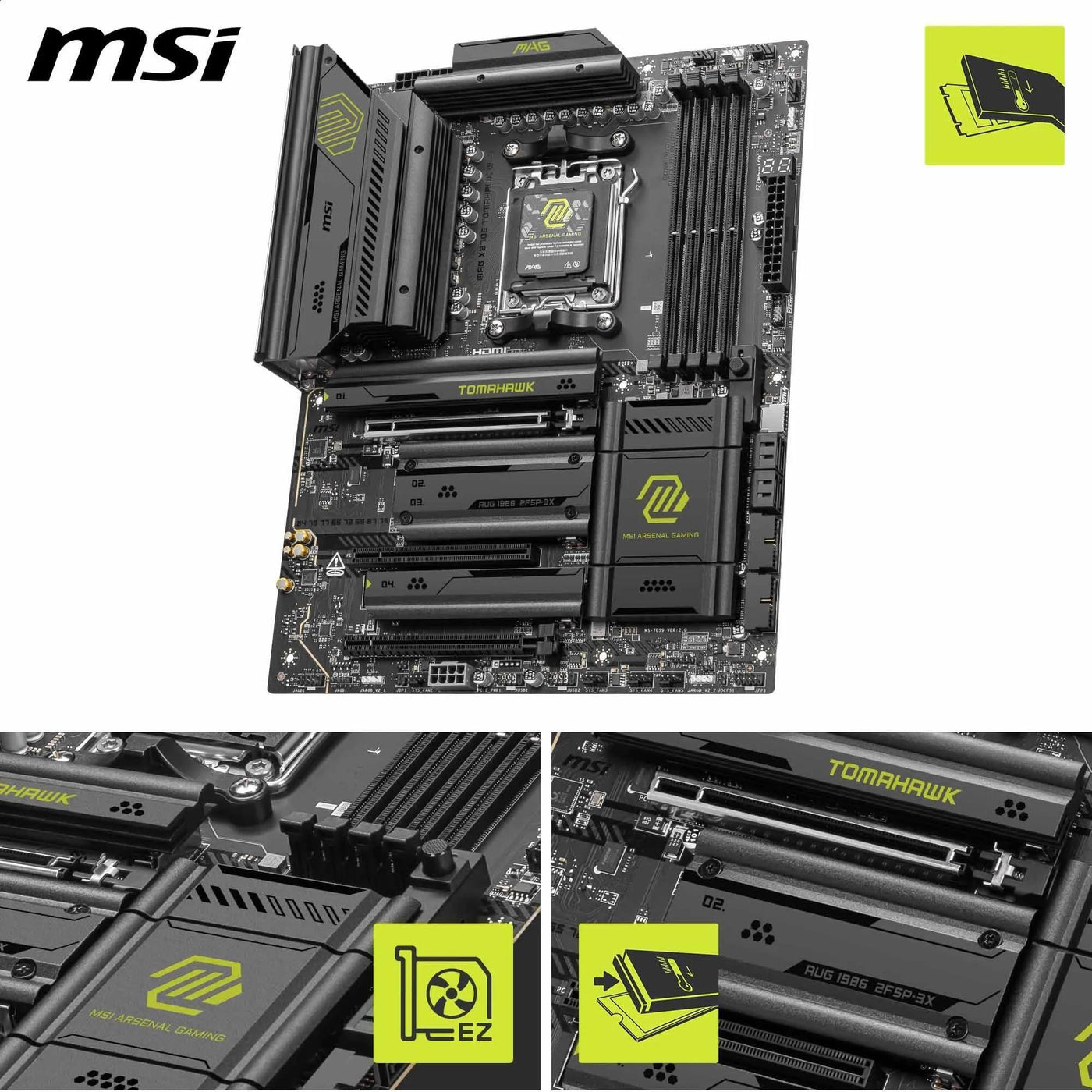

- QUADRUPLE M.2 CONNECTORS - Storage options include 2 x M.2 Gen5 x4 128Gbps slots, 2 x M.2 Gen4 x4 64Gbps slots; Features EZ M.2 Shield Frozr II to prevent thermal throttling and EZ M.2 Clip II for EZ DIY experience

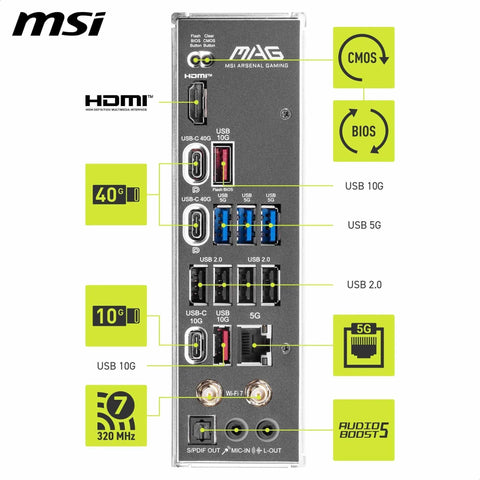

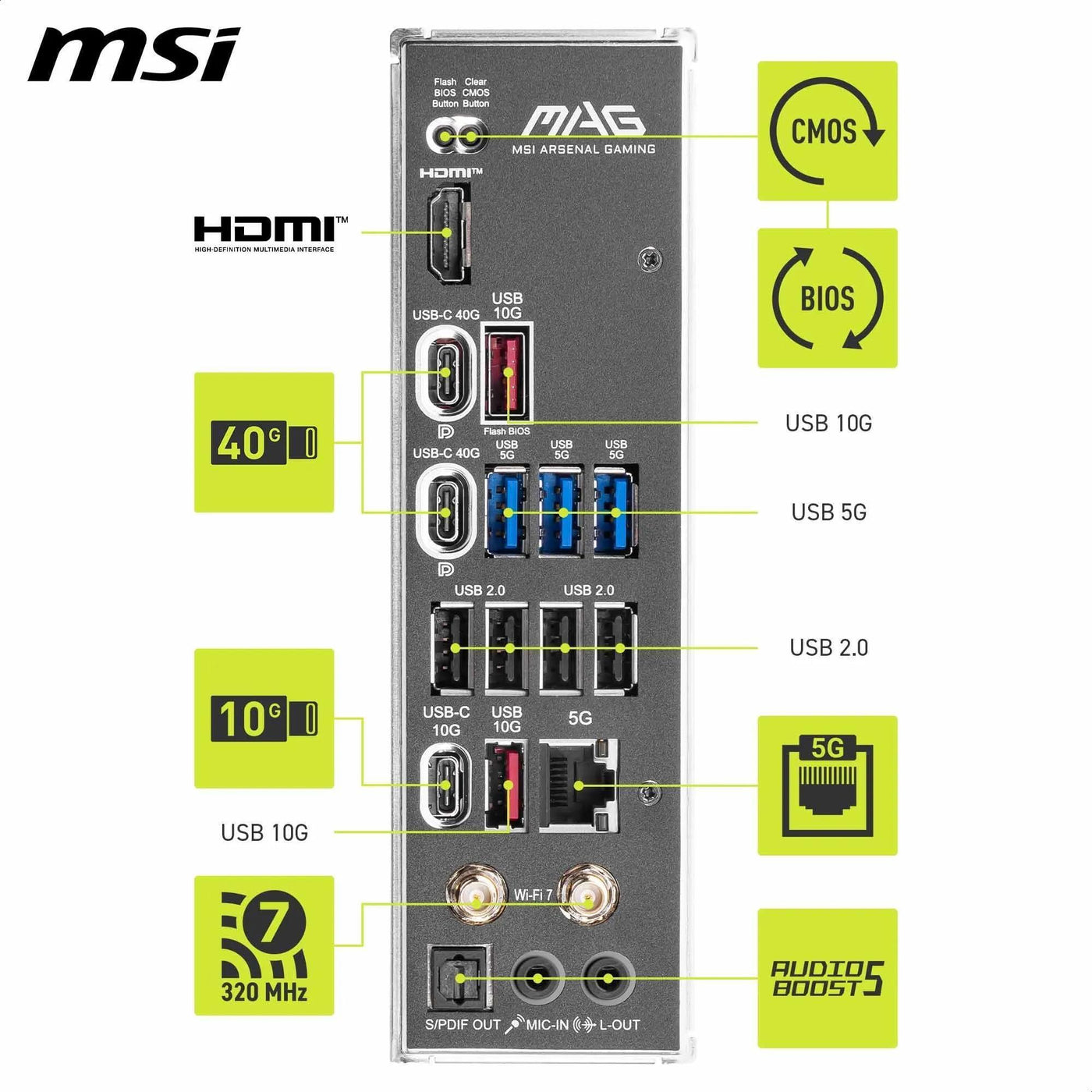

- ULTRA CONNECT - Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB4 Type-C 40Gbps with display output and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)
Binding: Personal Computers
Release Date: 15-01-2025
model number: MSI MAG X870E Tomahawk WiFi
Part Number: MSI MAG X870E Tomahawk WiFi

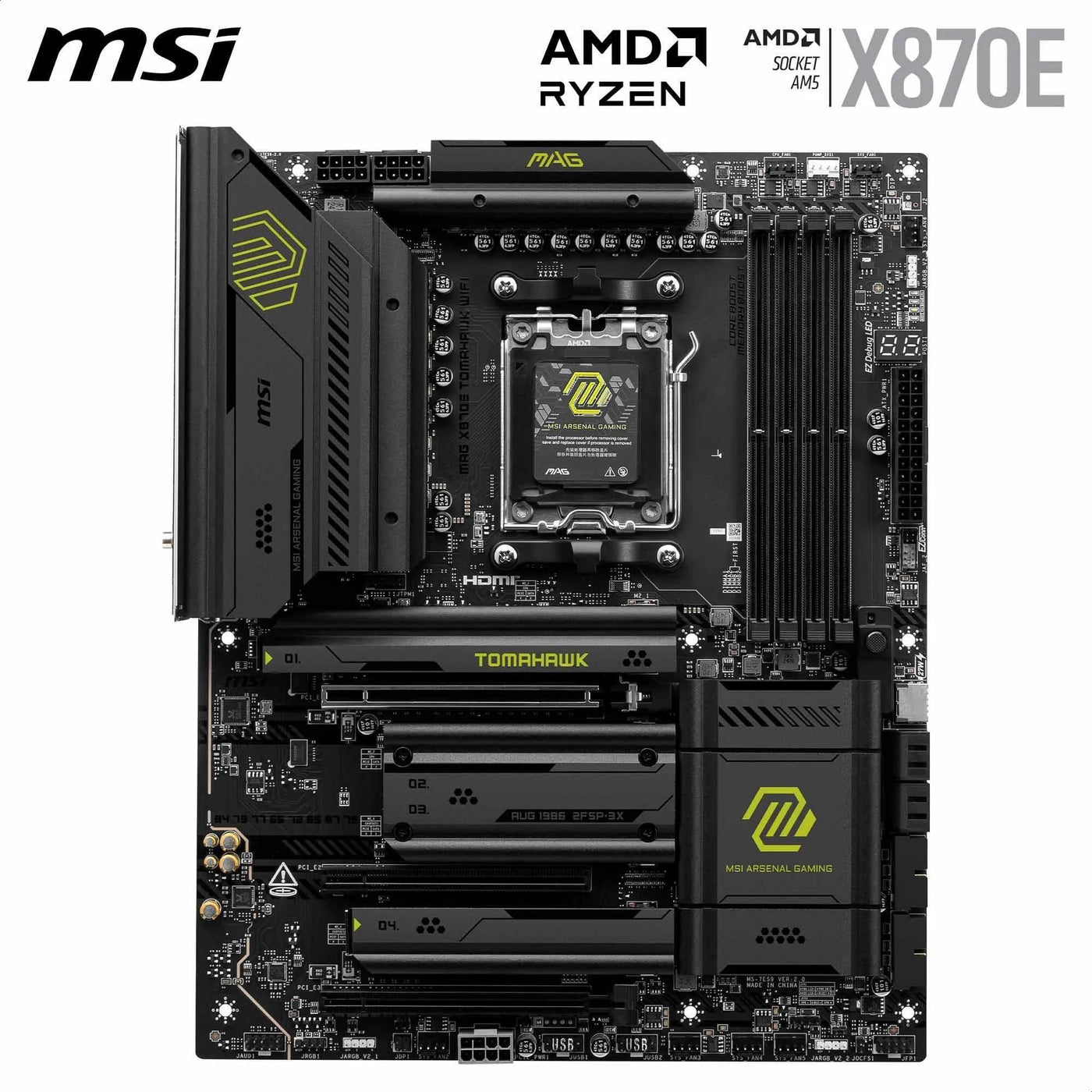

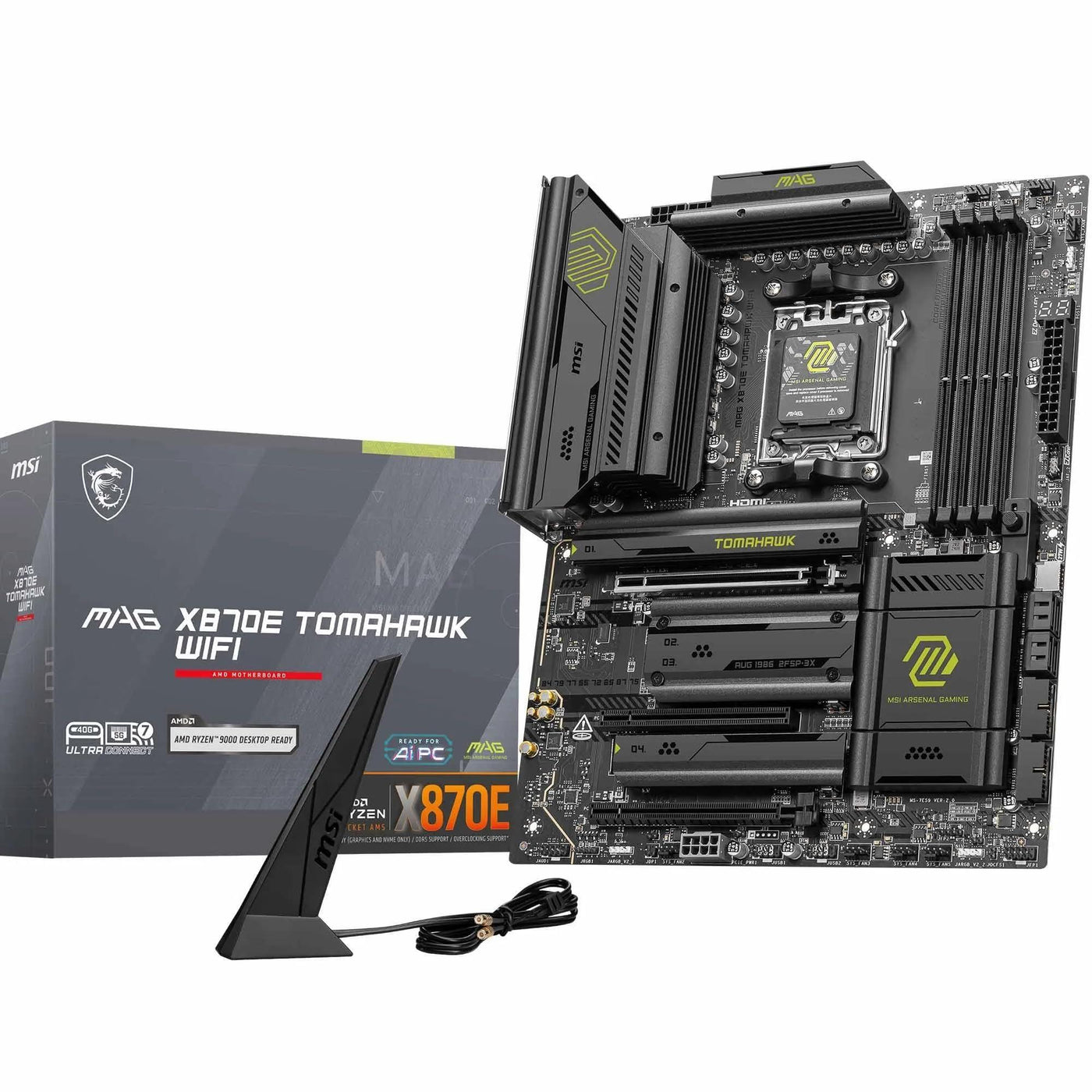

Details: MAG X870E TOMAHAWK WIFI: Unite as One Designed for gaming on the AMD X870E chipset (Ryzen 9000 / 8000 / 7000 supported, AM5), the MSI MAG X870E TOMAHAWK WIFI motherboard includes premium GPU support with PCIe 5.0 x16, improved DDR5 8400+ MT/s (OC) memory support, and extensive M.2 Gen5 storage options (one with double-sided Shield Frozr). To power the latest Ryzen 9000 processors, the MAG X870E TOMAHAWK WIFI is equipped with a 14 Duet Rail Power System (80A, SPS) VRM for the CPU and dual 8-pin CPU power connectors, augmented with multiple passive cooling features. MSI X870E gaming motherboards feature durable server-grade PCBs with 2oz of thickened copper and PCIe Steel Armor II to support the primary graphics card slot. Connectivity includes full-speed Wi-Fi 7 and Bluetooth 5.4 technology, Realtek 5G LAN, USB4 Type-C (40Gbps) with 8K/60Hz display support, and 7.1 USB High Performance Audio. For gamers looking for an AMD Ryzen 9000 / 8000 / 7000 platform that unites PCIe 5.0 x16 graphics card architecture, improved DDR5 support, and M.2 Gen5 storage options into one elegant design, the MSI MAG X870E TOMAHAWK WIFI gaming motherboard is the perfect choice.
EAN: 0824142395660
Package Dimensions: 13.5 x 10.8 x 2.8 inches
