Brand: IO CREST
Features:

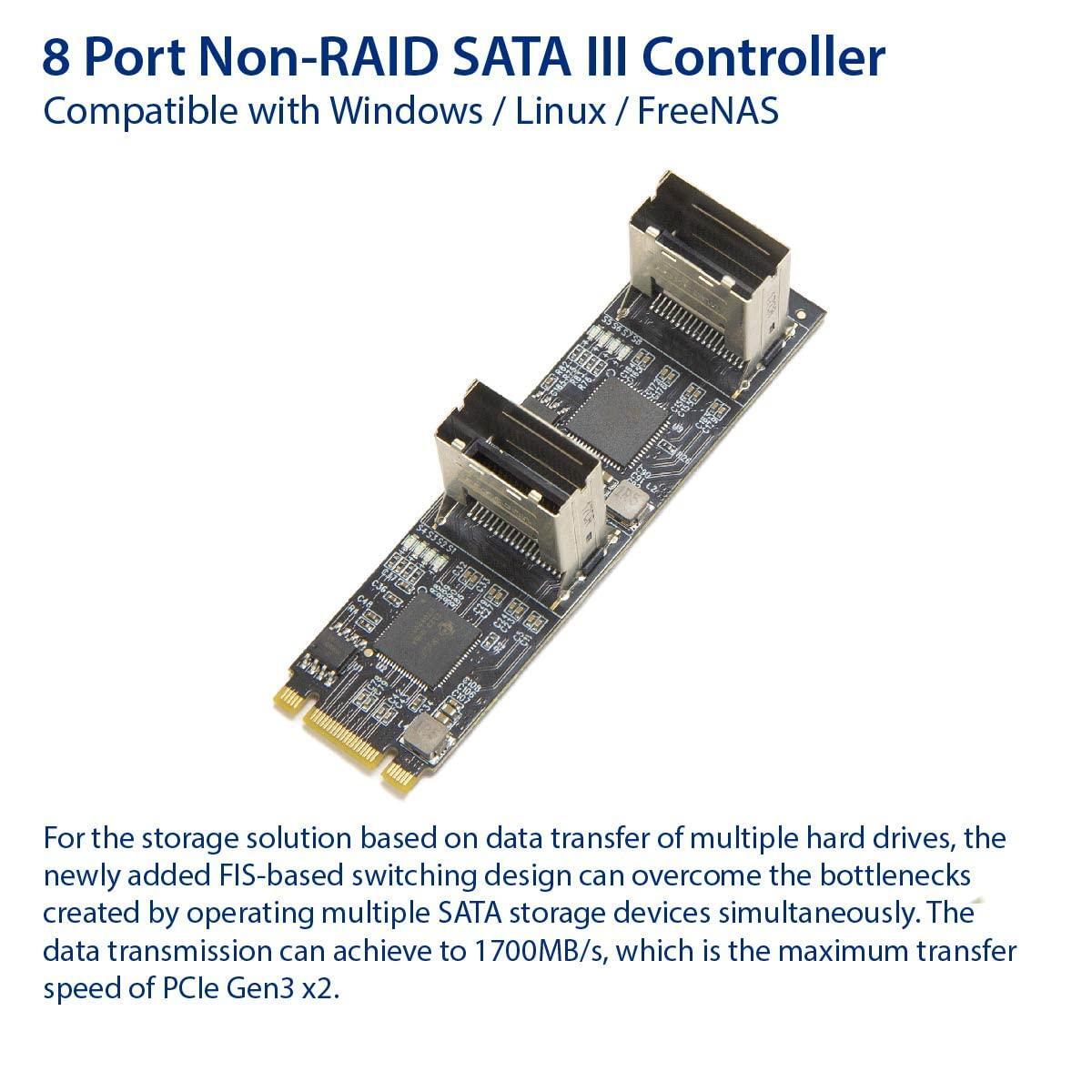

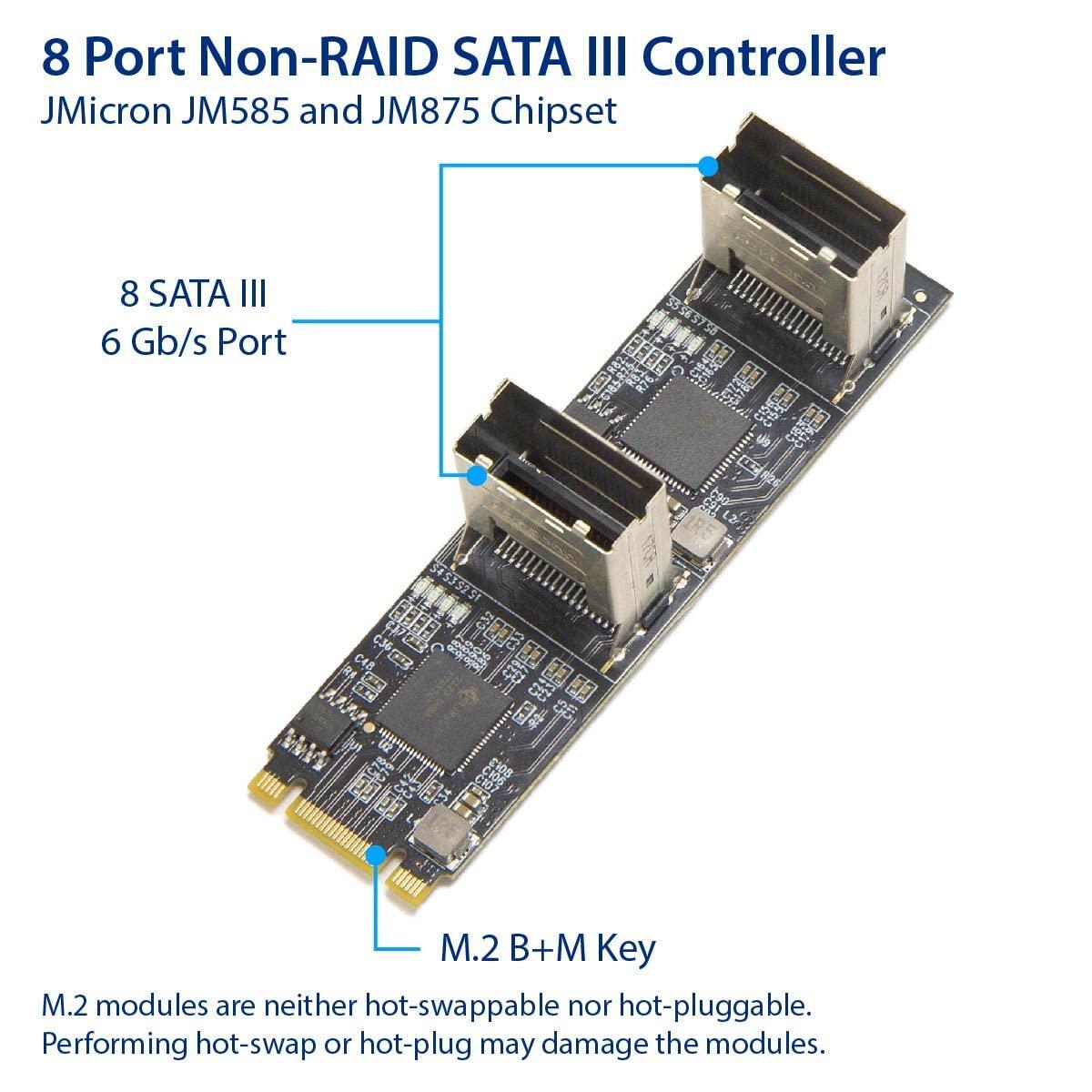

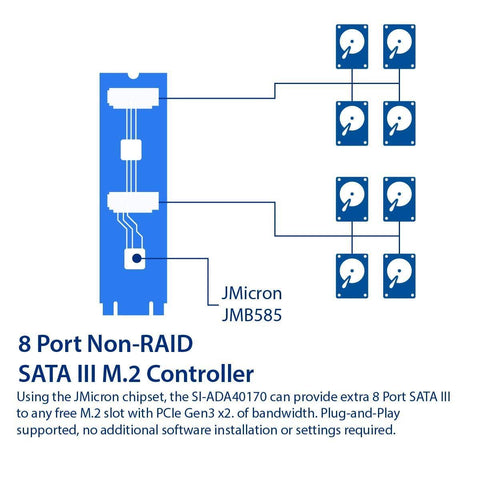

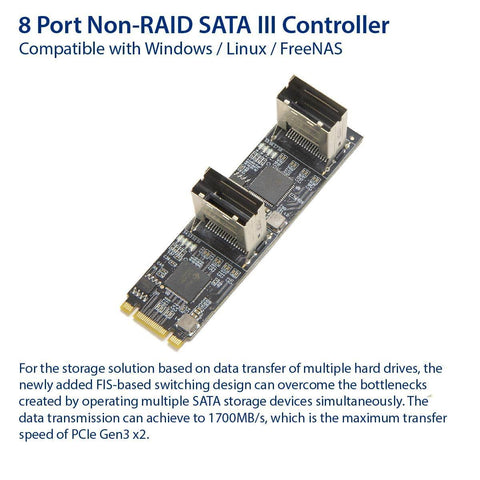

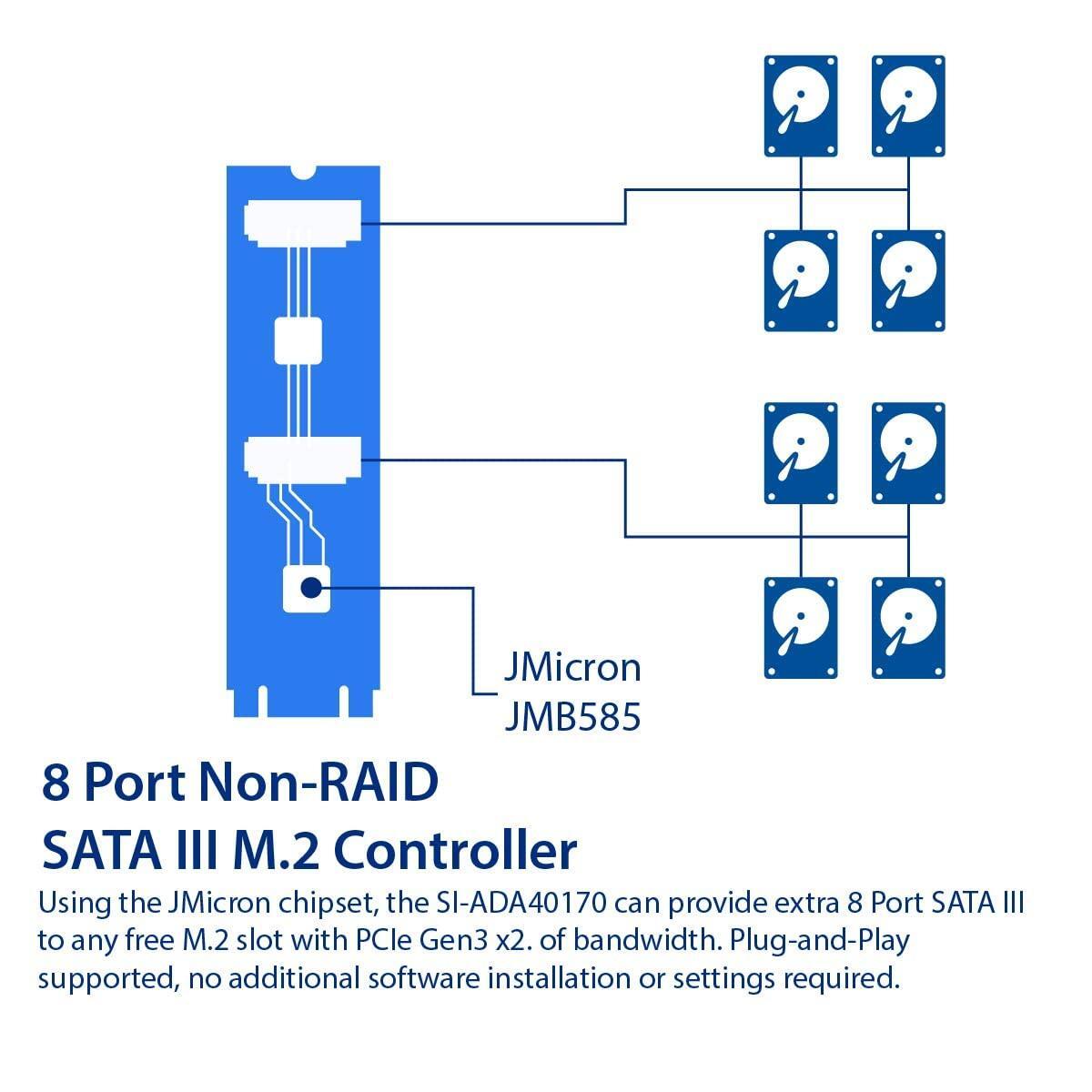

- Using the Jmicron chipset, the SI-ADA40170 can provide M.2 (PCIe Gen3 x2 bandwidth) to 8 Port SATA 6Gb / s card solution. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.
- Connect eigth SATA drives to a M.2 B+M Key Connection, providing up to 1700 MB/s speed. Plug and play supported, no additional software installation or setting required. Two Mini SAS to 4 SATA Port is included
- Can support Port Multiplier that is not in a RAID configuration. Compatible with SATA hard drives and solid state drives and computer systems with SATA controllers. 2-Lane M.2 PCI-Express 3.0 interface (B and M Key). Complies with PCI Express Base Specification Revision 3.1a.
- Compliant with Serial ATA AHCI (advanced host controller interface) Specification Rev 1. 0, supports SATA 3. 0 transfer rate up to 6Gbps. Maximum sequencing read/ write speed 850 MB/s
- Compatible with Windows XP/7/8/10/NAS/Linux OS. No driver installation is required. Support install Windows OS from Win10 PE.
Binding: Personal Computers
Release Date: 26-09-2022
model number: SI-ADA40170
Part Number: SI-ADA40170
Details: Using the Jmicron chipset, the SI-ADA40170 can provide M.2 (PCIe Gen3 x2 bandwidth) to 8 Port SATA 6Gb / s card solution. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.
EAN: 0857426008925
Package Dimensions: 6.9 x 5.7 x 1.6 inches
Languages: English
