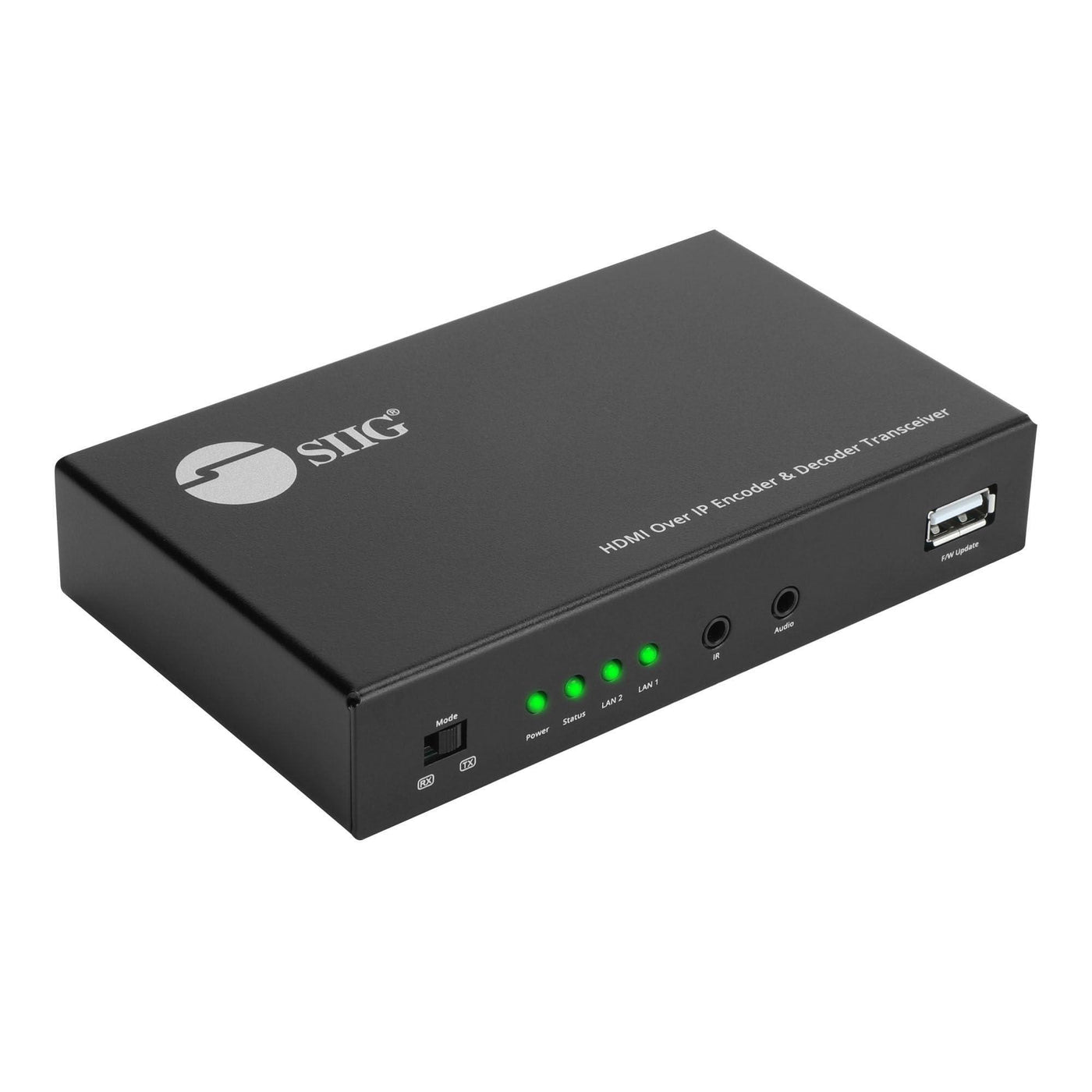

SIIG HDMI Over IP Encoder & Decoder Transceiver - TX/RX Mode Switching, Cascading, 1080p, One to One 600ft, One to Many, Many to Many via VLAN, 2X RJ45, TAA Compliant (CE-H27P11-S1) ^Sale

Brand: SIIG

Features:

• Long Range HDMI Encoder & Decoder - This versatile HDMI over IP Encoder & Decoder Transceiver seamlessly integrates extender, splitter, and switcher functionalities into a single, powerful device, offering flexibility to configure as either an encoder or a decoder. Seamless transmission and expansion of HDMI audio/video signals to remote displays up to 600ft (180m) over Cat5e/6 network cables.
• EDID and Resolution - Supports up to 1080p@60Hz and complies with the HDCP 1.4 standard to deliver stunning visual clarity. Supports EDID pass-through, which allows to automatically detect and configure the optimal resolution for both local and remote displays. This ensures that your content is always displayed in the correct aspect ratio, whether you are connecting to a 16:9, 16:10 & 4:3 display.

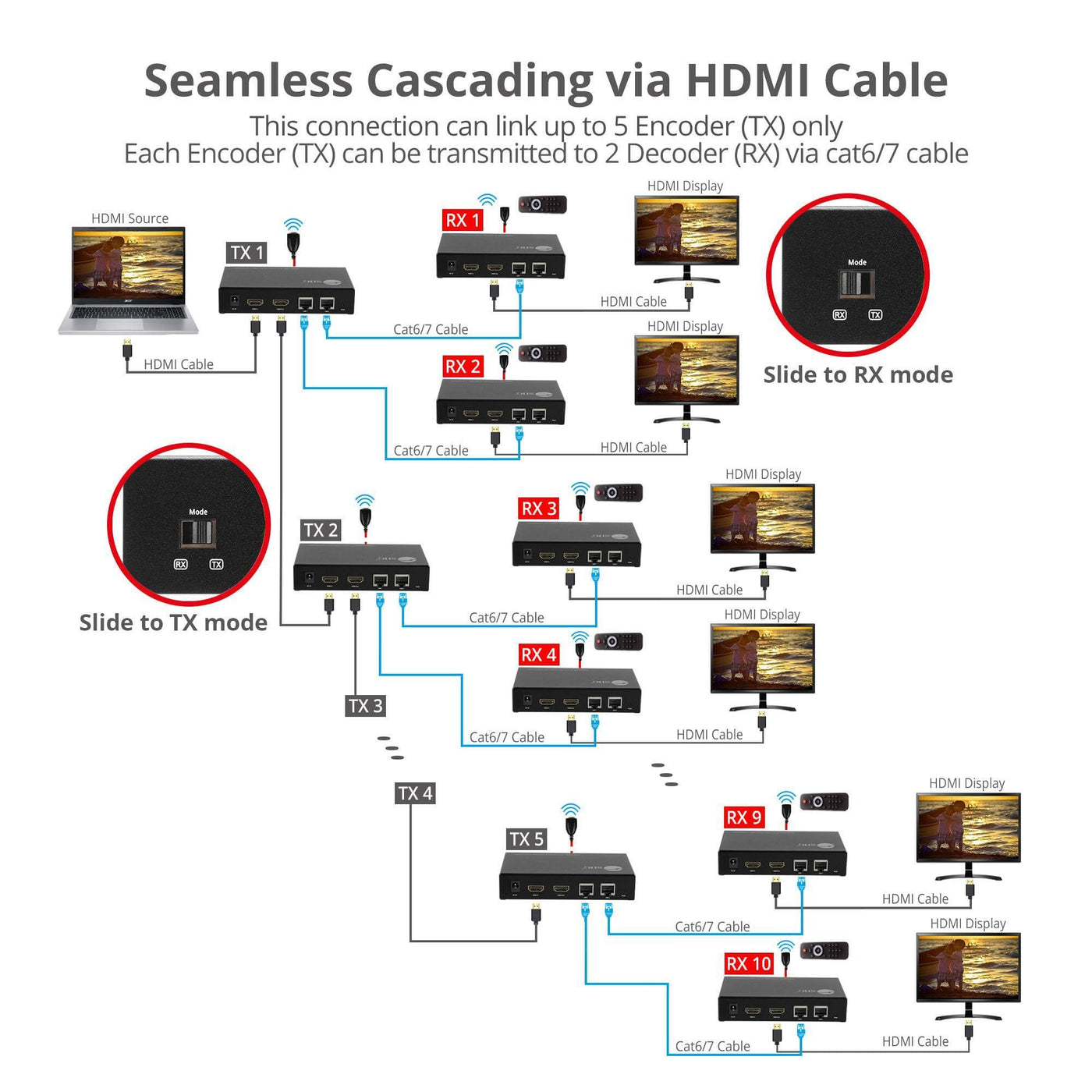

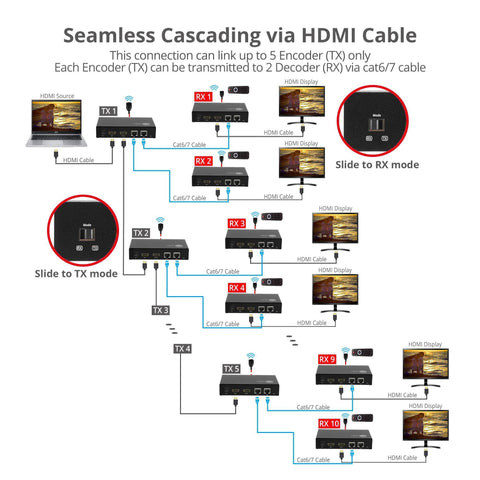

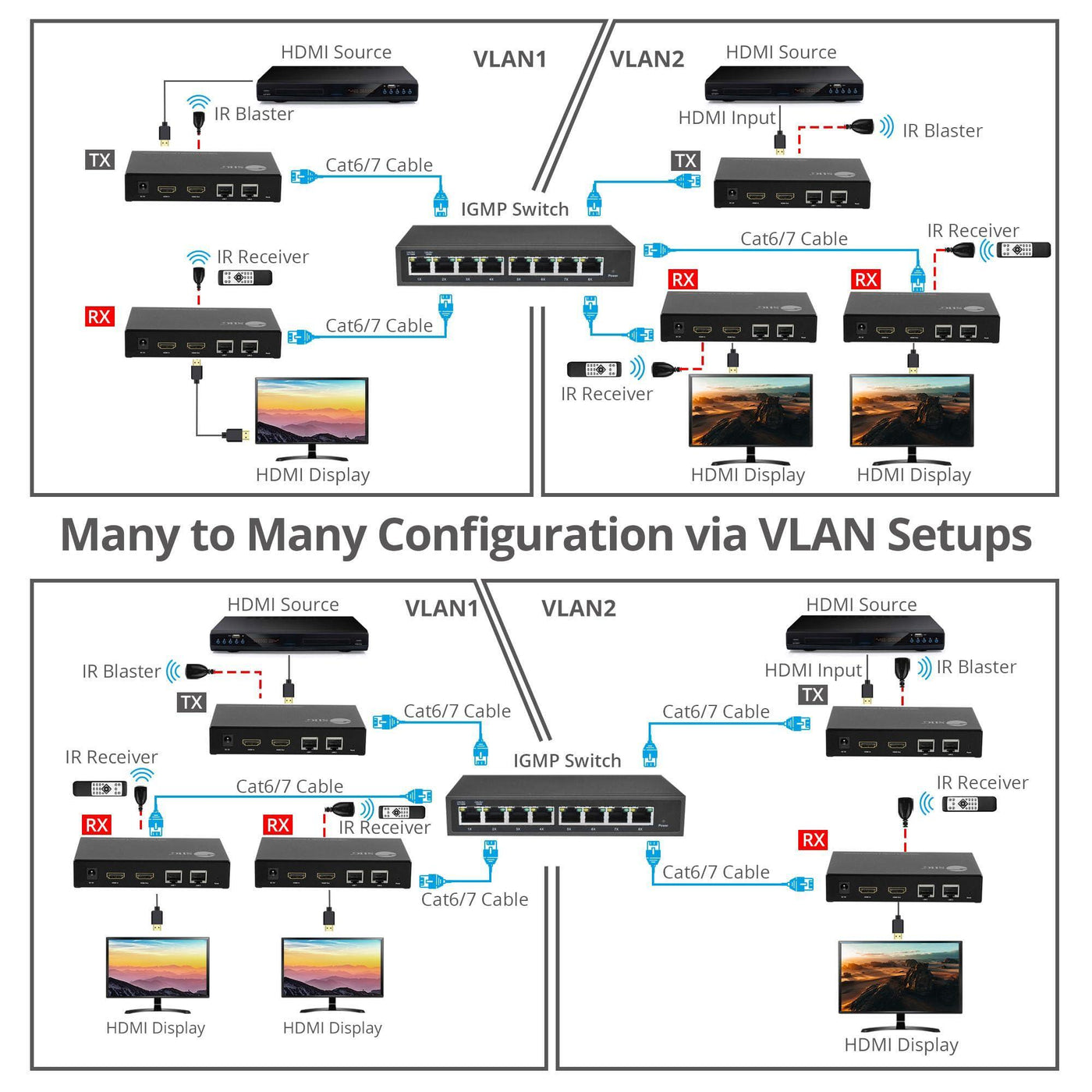

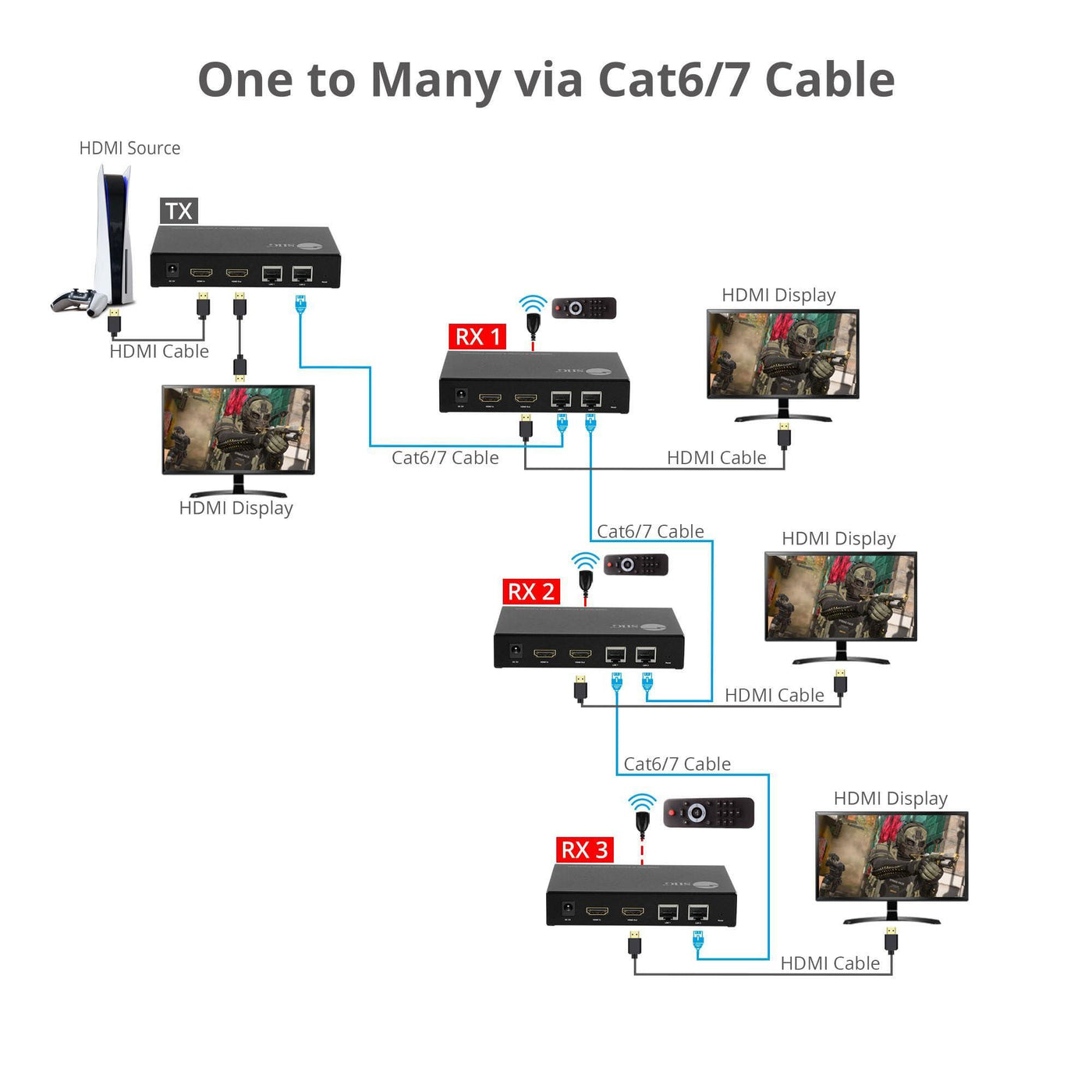

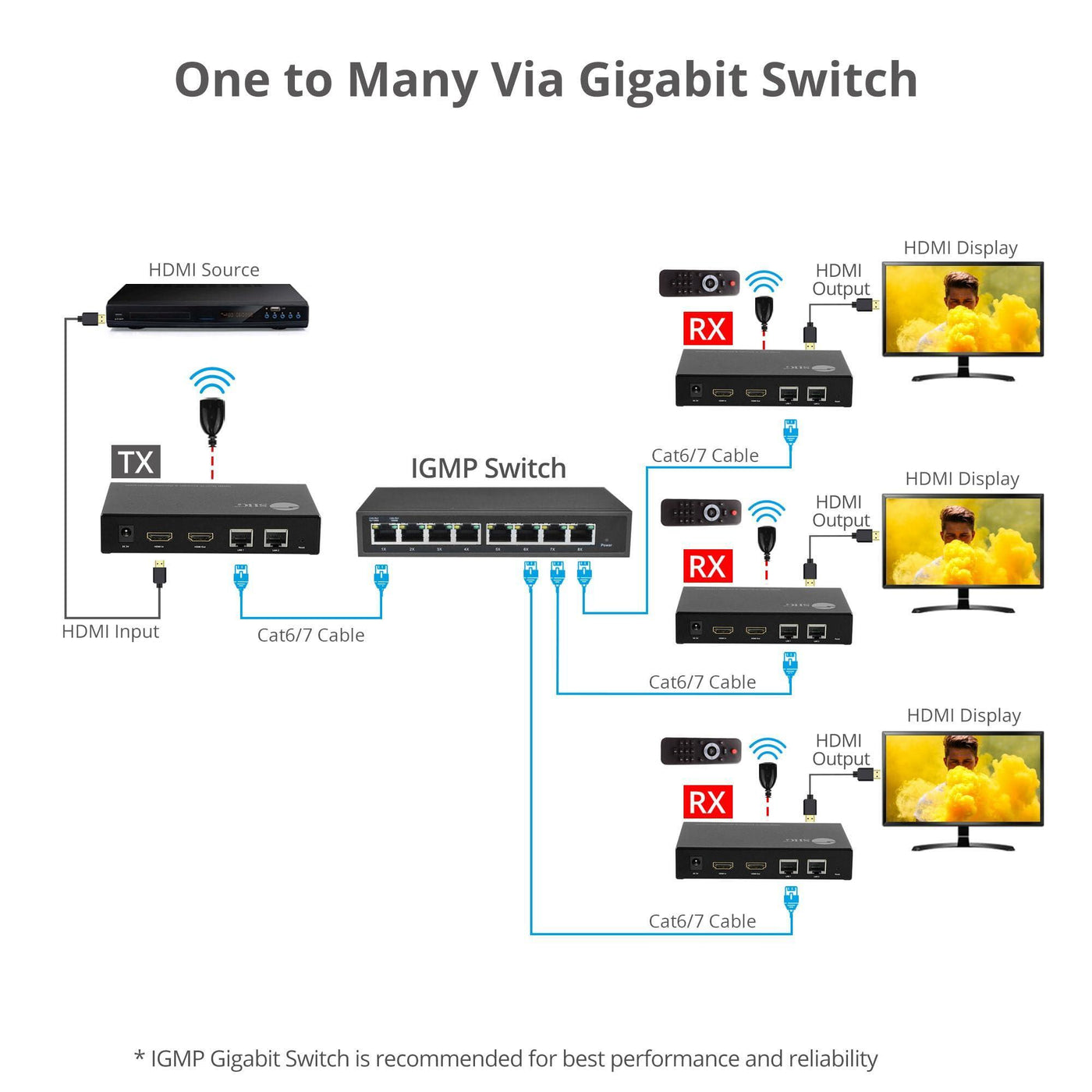

• Highly Scalable - Works as a scalable Encoder/Decoder (TX/RX) matrix over a dedicated IP network, enabling the extension of HDMI signals to multiple displays. It offers four connection modes: 1 to 1 (600ft), 1 to Many, Many to Many via VLAN and Cascading. Note: HDMI signal length of 600ft is only offered for 1 to 1 mode. Decreased to 328ft for all other modes. For Cascading TX to TX, we recommend max HDMI cable length of 33ft.
• IR Extension - Allows remote control of the HDMI Source device via the receiver and playback at the distant display. Supports IR signals in the 20-60KHz carrier frequency range. The IR emitter and receiver cables are included in box for convenient setup and operation.

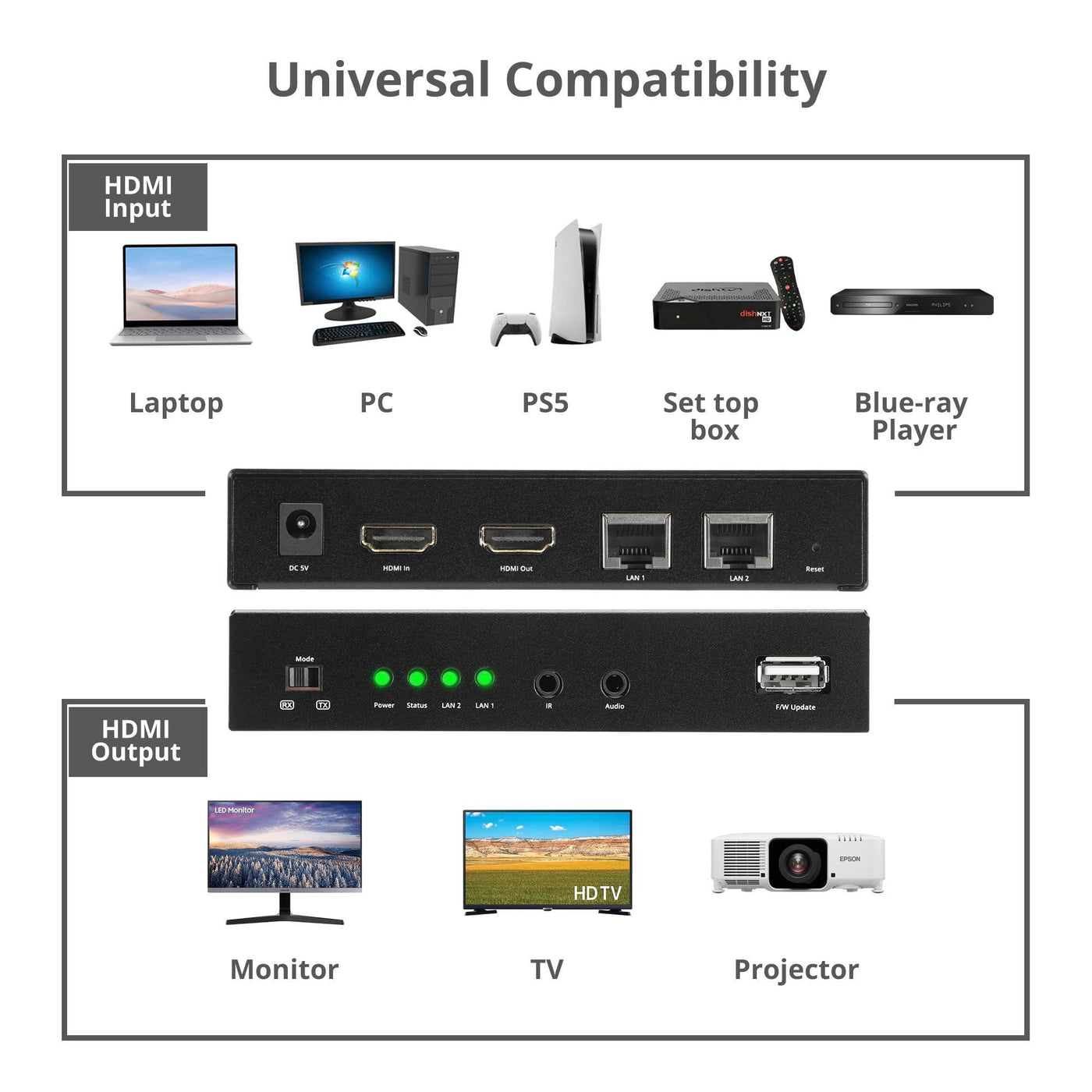

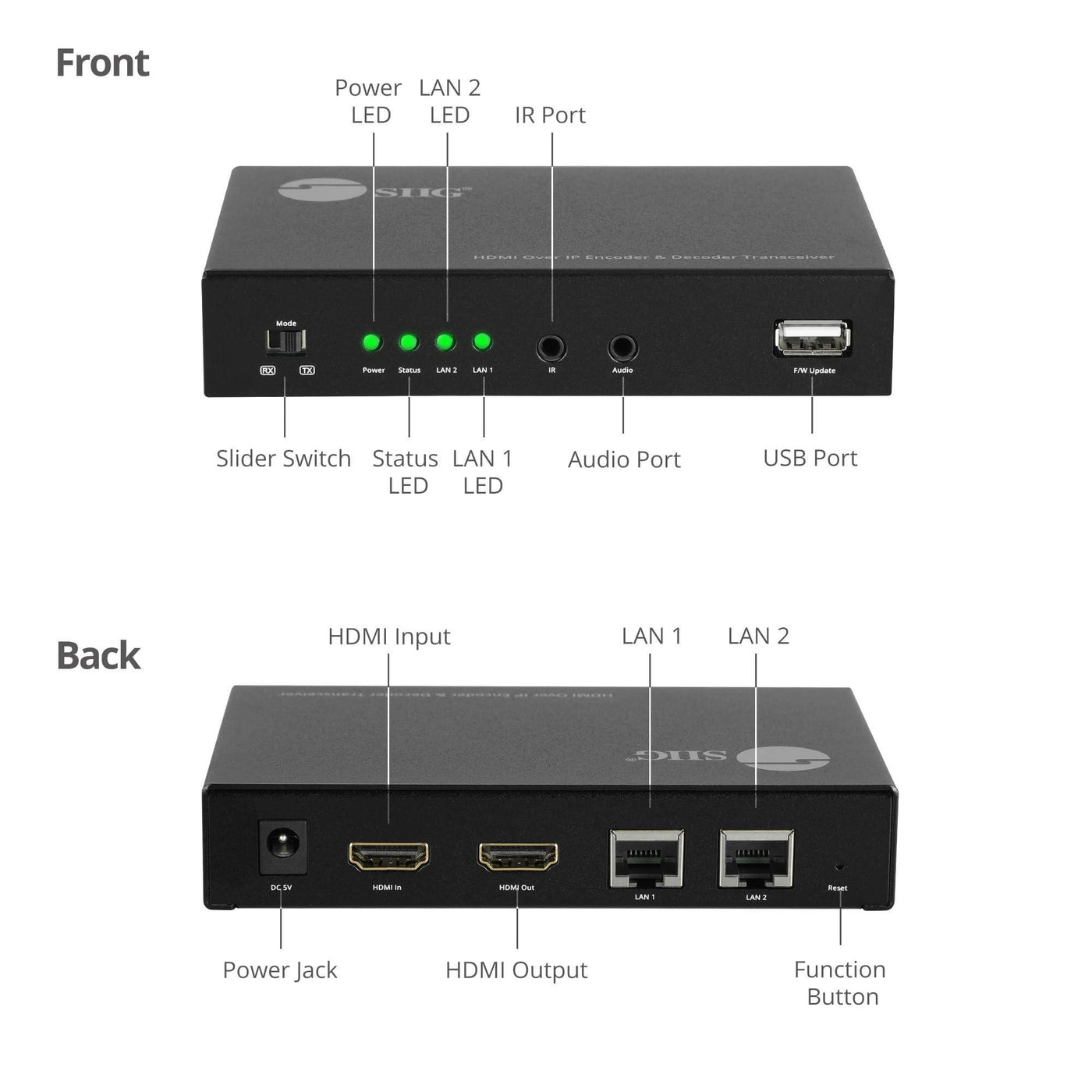

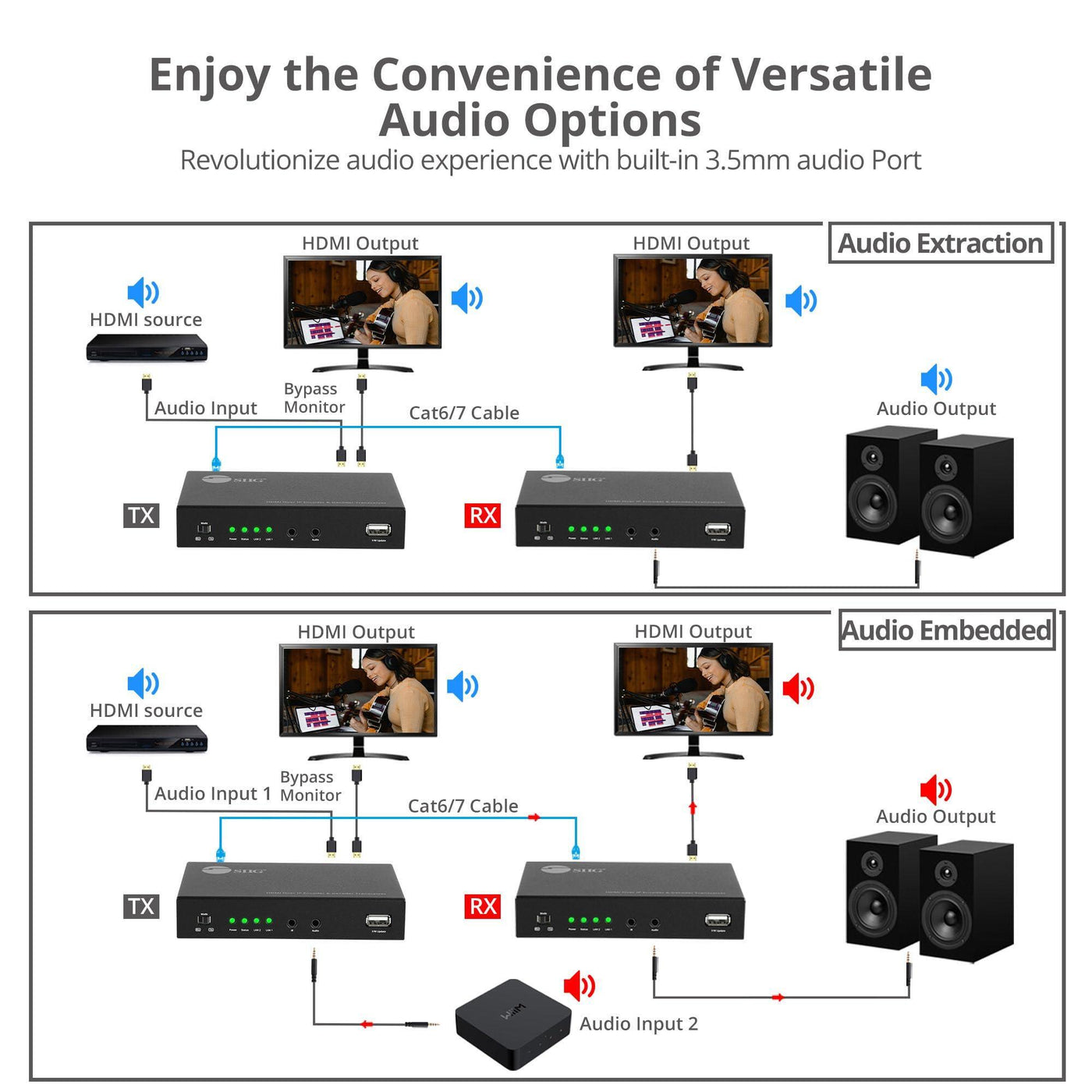

• Multiple Connectivity Ports - Comes with one HDMI video input port, one HDMI output port, two RJ45 network ports, one 3.5mm IR emitter or receiver port, one 3.5mm stereo audio input or output port, one slide switch to select between the Encoder (TX) or Decoder (RX) mode, one USB port for firmware updates, one reset button, one DC power jack (5V/2A).

model number: CE-H27P11-S1

Part Number: CE-H27P11-S1

EAN: 0662774046235

Package Dimensions: 10.4 x 6.9 x 3.0 inches
