Brand: Phanteks
Color: White
Features:
- High performance water cooling for Sockets Intel LGA 115x, 1200, 1700 (Support Intel Core 14th Gen), 2011, 2011-3, 2066 and AMD AM4, AM5

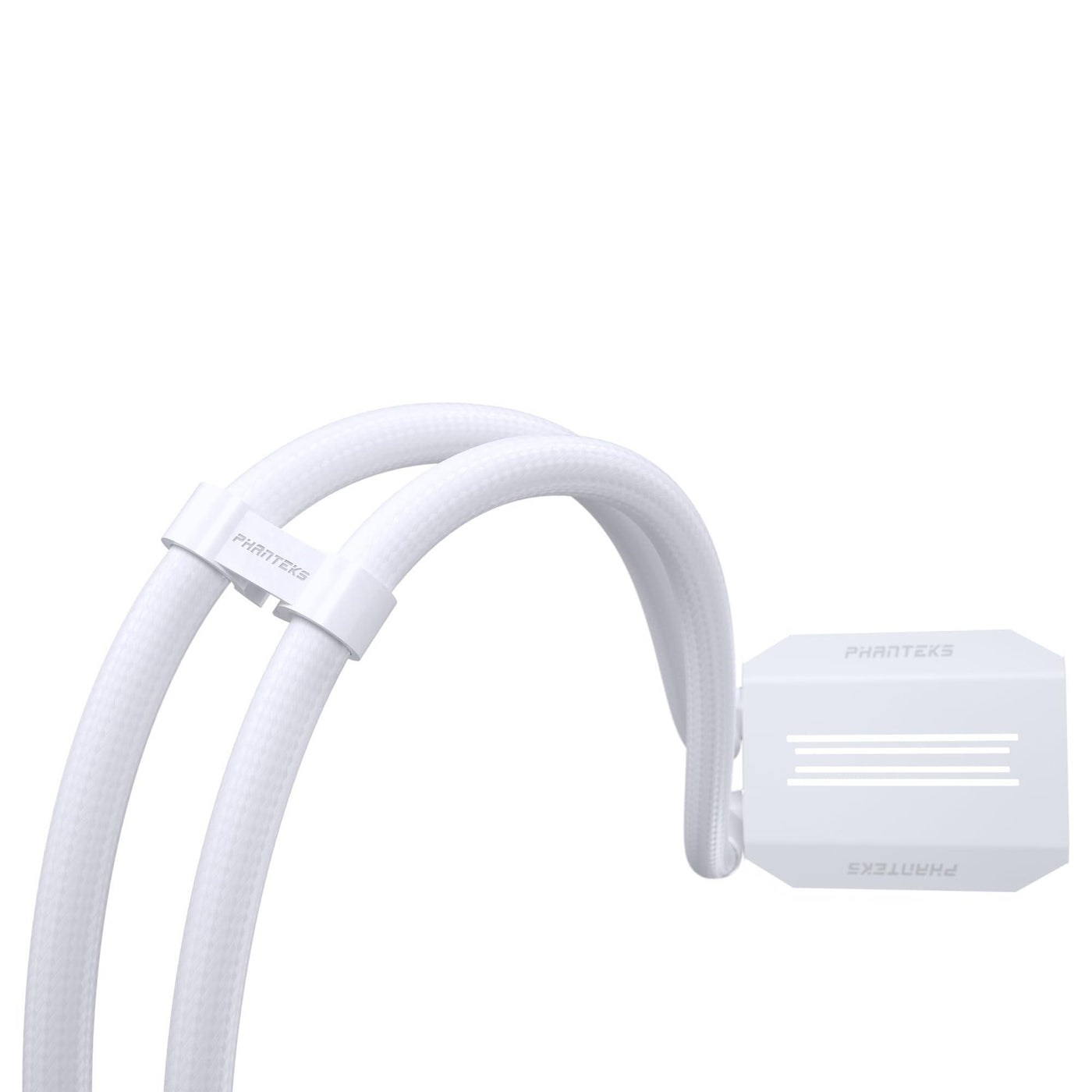

- Pre-filled for plug-and-play installation reliable operation with reinforced flexible braided tube sleeving, 100% pure copper cold plate and PWM controlled pump and fans.

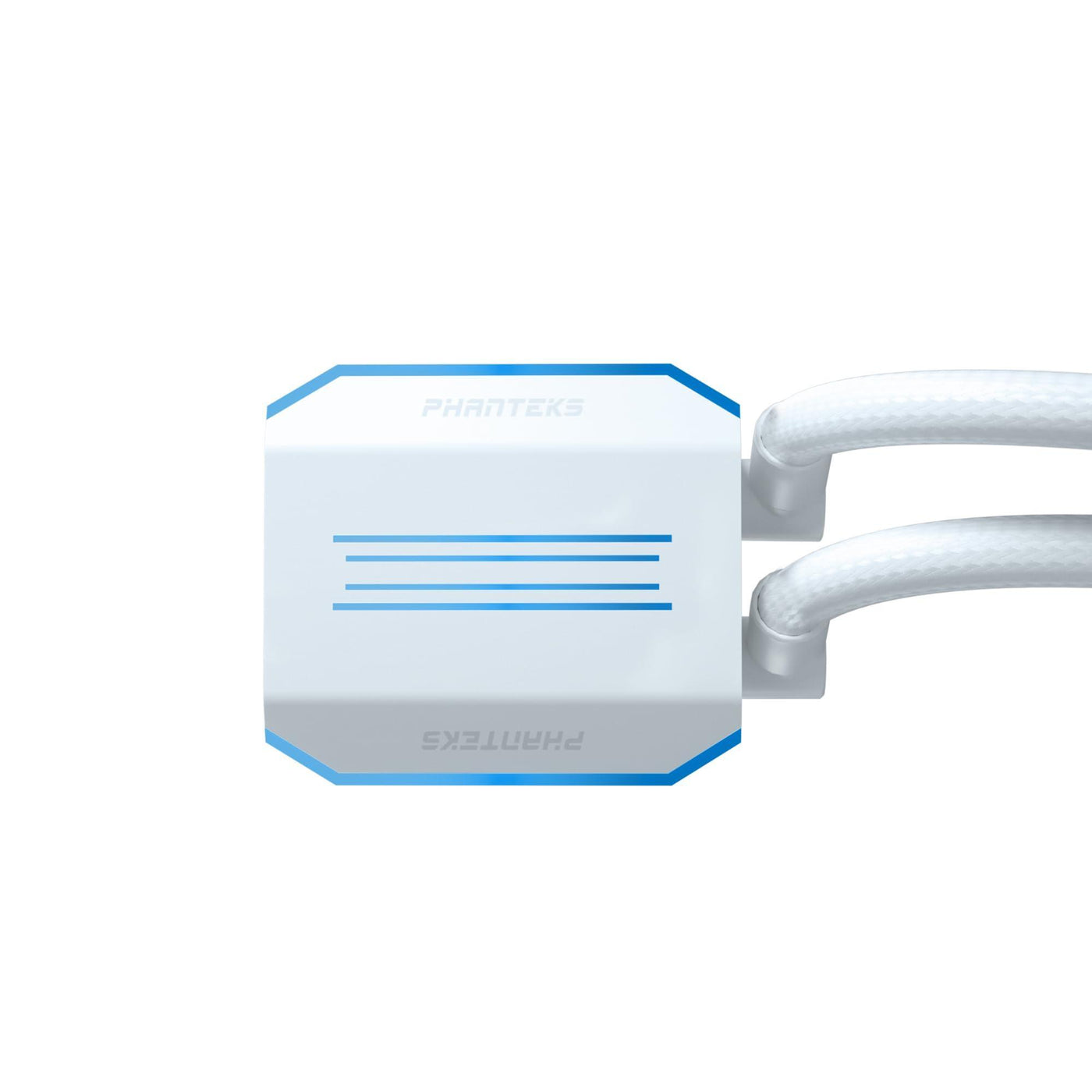

- Low profile pump cap designed with rotary fitting staying close to pump to allow for maximum clearance with motherboard and RAM components.

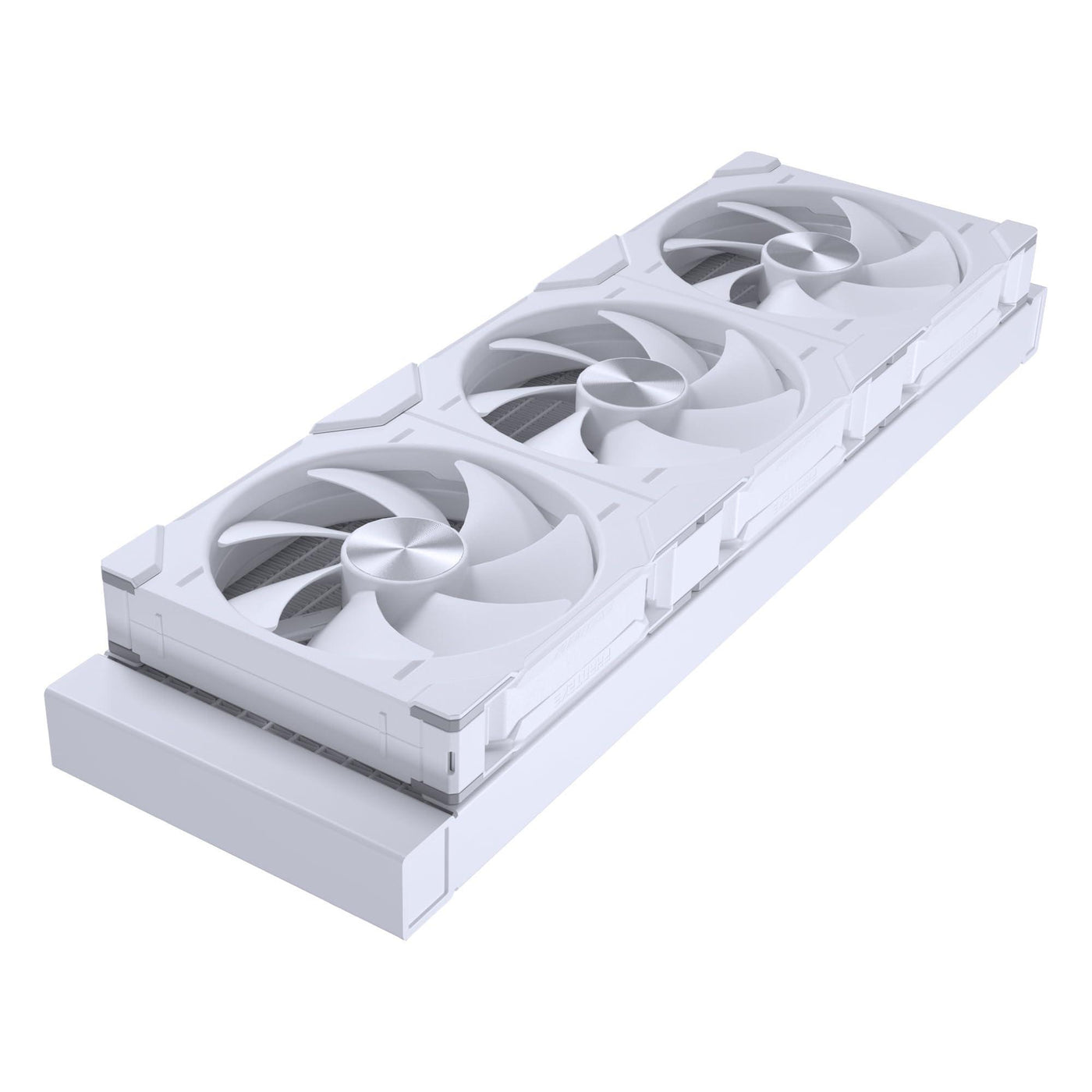

- Triple 140mm D30 DRGB PWM fans – Smooth D/A-RGB lighting, 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan. Easy and clean fan linking system, uses clips to link fans together to reduce cable clutter.
- D/A-RGB lighting can be controlled and synchronized with Phanteks’ D-RGB lighting products and D/A-RGB equipped cases and motherboards.
model number: PH-GO420D30_DWT01
Part Number: Glacier One 420D30

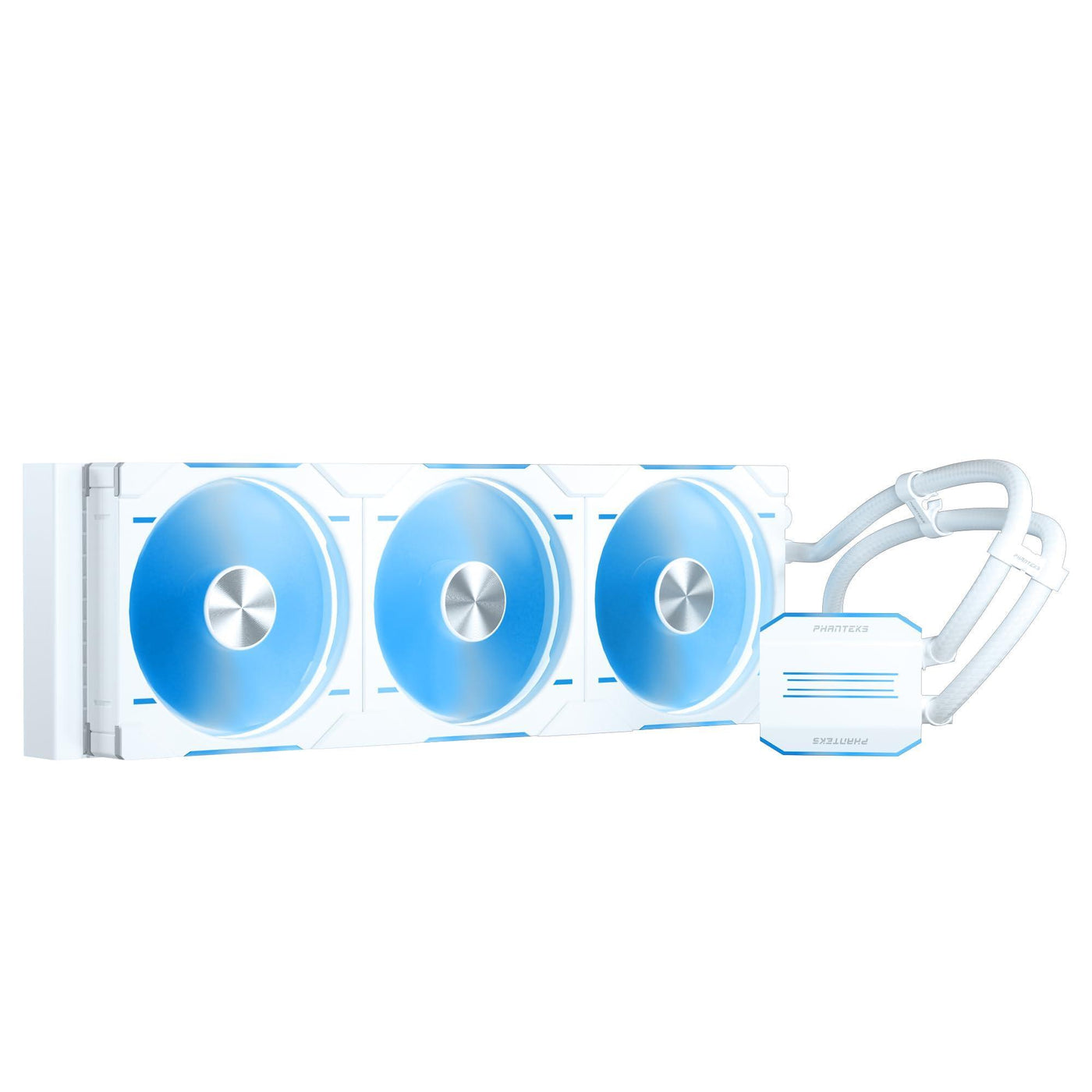

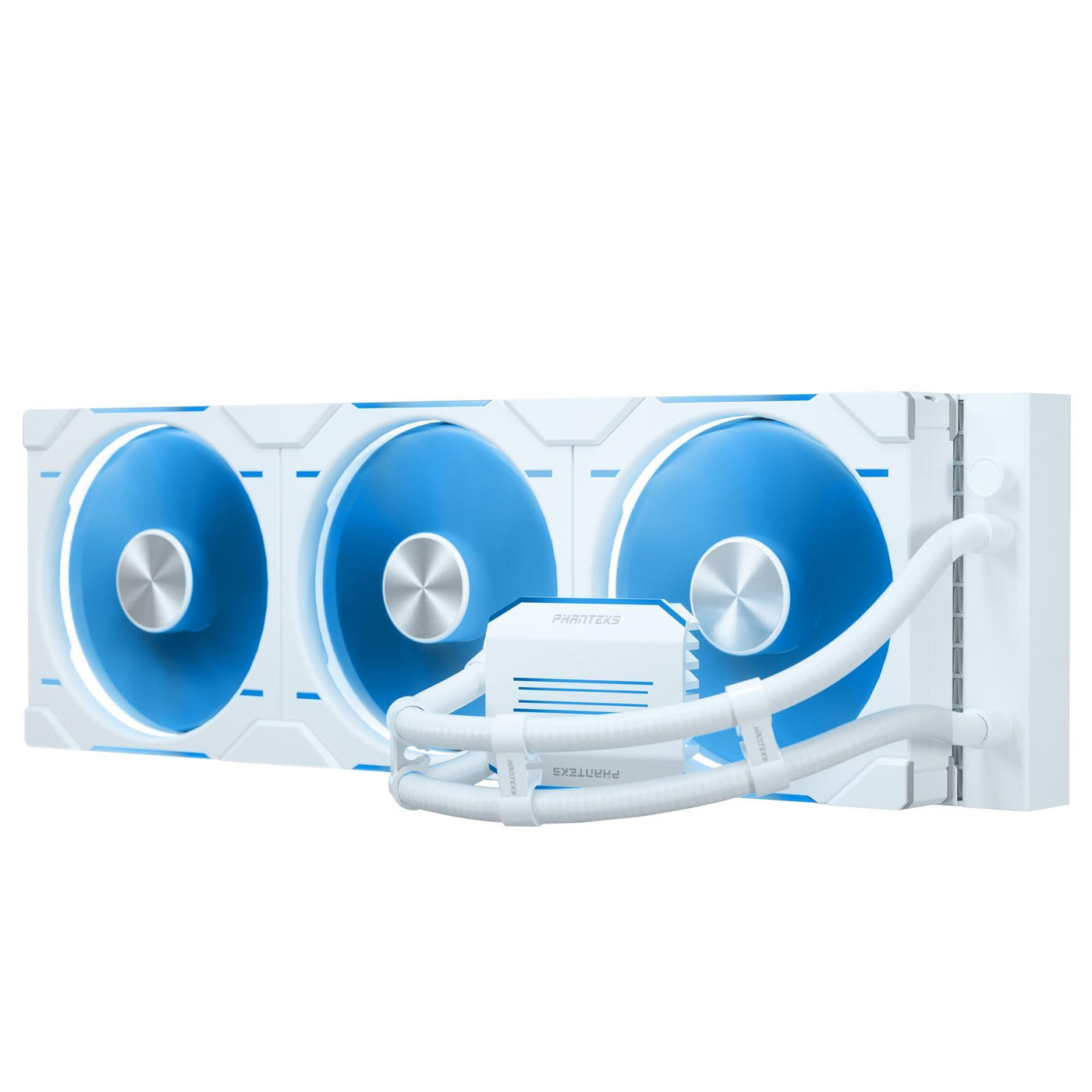

Details: The Glacier One D30 AIO cooler is a high-performance cooling solution that offers a smooth D-RGB lighting solution thanks to the D30 fans. The Glacier One D30 AIO cooler equipped with D30 fans, can be daisy-chained and controlled through a single cable. Its large copper base and fin array make it suitable for use with high-end CPUs, while its design allows for maximum clearance with motherboard and RAM components. The cooler is available in both 240, 360 and 420 models, providing builders with a range of options to suit their needs. With its advanced features and sleek design, the Glacier One D30 is an excellent choice for those seeking a reliable and efficient AIO cooler for their PC builds. Product Type: AIO Liquid CPU Cooler. Socket Compatibility: Intel Socket LGA 115x, 1200, 1700 (Support Intel Core 14th Gen), 2011, 2011-3, 2066, AMD Socket AM4, AM5, SP3, sTRX4, TR4, sWRX8. Pump Block (LxWxH): 76 x 64 x 51.4mm. Radiator (LxWxH): 456 x 138.5 x 27mm. Fin Damage QC: Max 10 fin total/Max 4 consecutive fins allowed. Tubing Length: 400 ± 10mm. Tubing outside diameter: 10.5 mm OD. Pump DC Cable: 400 ± 10mm. D-RGB 3-PIN Cable: 500 + 90 ± 10mm, Daisy-Chain Connector. Cold Plate: Copper 1100. Radiator: Aluminum (AL3003). Tubing: CIIR rubber with white braided sleeves. Housing: ABS plastic. Cooling Liquid: Deionized Water and Propylene Glycol mix. D-RGB Lighting Type: 3-PIN Digital-RGB LED strip (5V, data, Ground), Quantity: 14 LED Chips, Power: 5V, 0.42A, 2.1W. Pump: Pump Speed: 3100RPM +/- 10% with 100% duty cycle; Power: 12V, 0.38A (0.45A max) , 4.56W (5.4W max), Bearing: Ceramic bearing, Noise: 20 dBA, MTTF: 100,000 hours, 40 degree Celsius in typical use. Fittings: Rotary type. Thermal Paste: 2.9 W/m-k Pre-applied + Phanteks PH-NDC. 120mm D30 PWM Fan: Fan type: PH-F140D30_DRGB_PWM_WT01 (for White Cooler) or PH-F140D30_DRGB_PWM_BK01 (for Black Cooler), Quantity: 3, Dimension: 140 x 140 x 30mm. Speed: 250 - 1800 ± 10% RPM, Air Flow: 71.93 CFM, Fan Static Pressure: 3.32 mm- H₂O, Noise: 29.5 dBA, Connector: 4-pin PWM, Cable length: 700mm Daisy-Chain, D-RGB Connector: 3 Pin D-RGB Daisy-Chain, D-RGB Cable Length: 600+100 mm, LED Number: 30 pcs, LED Rated Voltage: DC 5V (+5V/D/GND), LED Rated Current: Max:0.45A. Item Weight (Net Weight): 1.23 kg. Scope of Delivery: 1x PH-GO420D30_DWT01 AIO Cooler (pre-applied thermal paste), 1x Metal mounting kit, 3x PH-F140D30_DRGB_PWM_WT01, 3x Tube Clip, 1x SATA to 2-Pin pump adapter, 1x D-RGB Motherboard Adapter 600 mm (5V, data, Empty, Ground), 1x PH-NDC Thermal paste, 1x Installation Guide. Screw Bag: 8x/12x 33 mm 6-32 UNC Radiator Screws, 8x/12x 35 mm 6-32 UNC Radiator Screws, 8x/12x 6 mm 6-32 UNC Radiator Screws. Mounting Hardware: 4x AM4/AM5 Stand-Off screws, 4x LGA 1700 Stand-Off screws, 4x LGA 115X/1200 Stand-Off screws, 4x LGA 2011/2066 Stand-Off screws, 4x Thumb Nuts, 1x AM4/AM5 Bracket, 1x AMD TR4 bracket, 1x LGA 115X/1200/1700/2011/2066 Bracket, 1x LGA 115X/1200/1700 Metal Back plate. D30 Fan components: 3x D30 Fan, 1x Corner Clip Connector, 3x Corner Clip, 2x Bridge Clip Connector, 2x Bridge Clip, 4x Screw Cover Bridge, 2x Screw Cover L, 2x Screw Cover R.
EAN: 0886523003342
Package Dimensions: 22.0 x 10.0 x 10.0 inches
