Brand: ASRock
Features:
- ***Not compatible with all built-in computers or systems

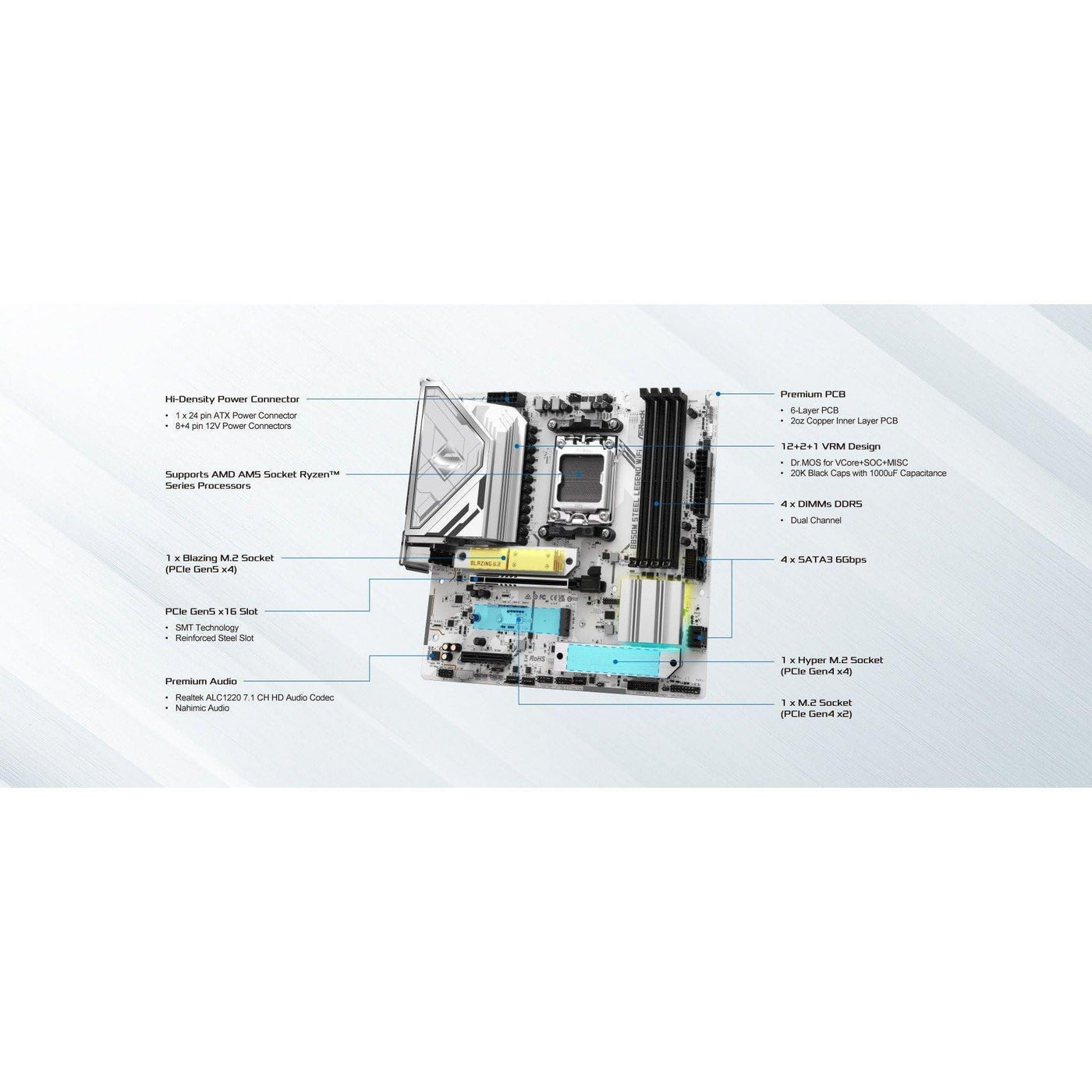

- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- 12+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4 Graphics Output Options: 1 HDMI, 1 DisplayPort Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4) 1 Hyper M.2 (PCIe Gen4x4) 1 M.2 (PCIe Gen4x2) 4 SATA3

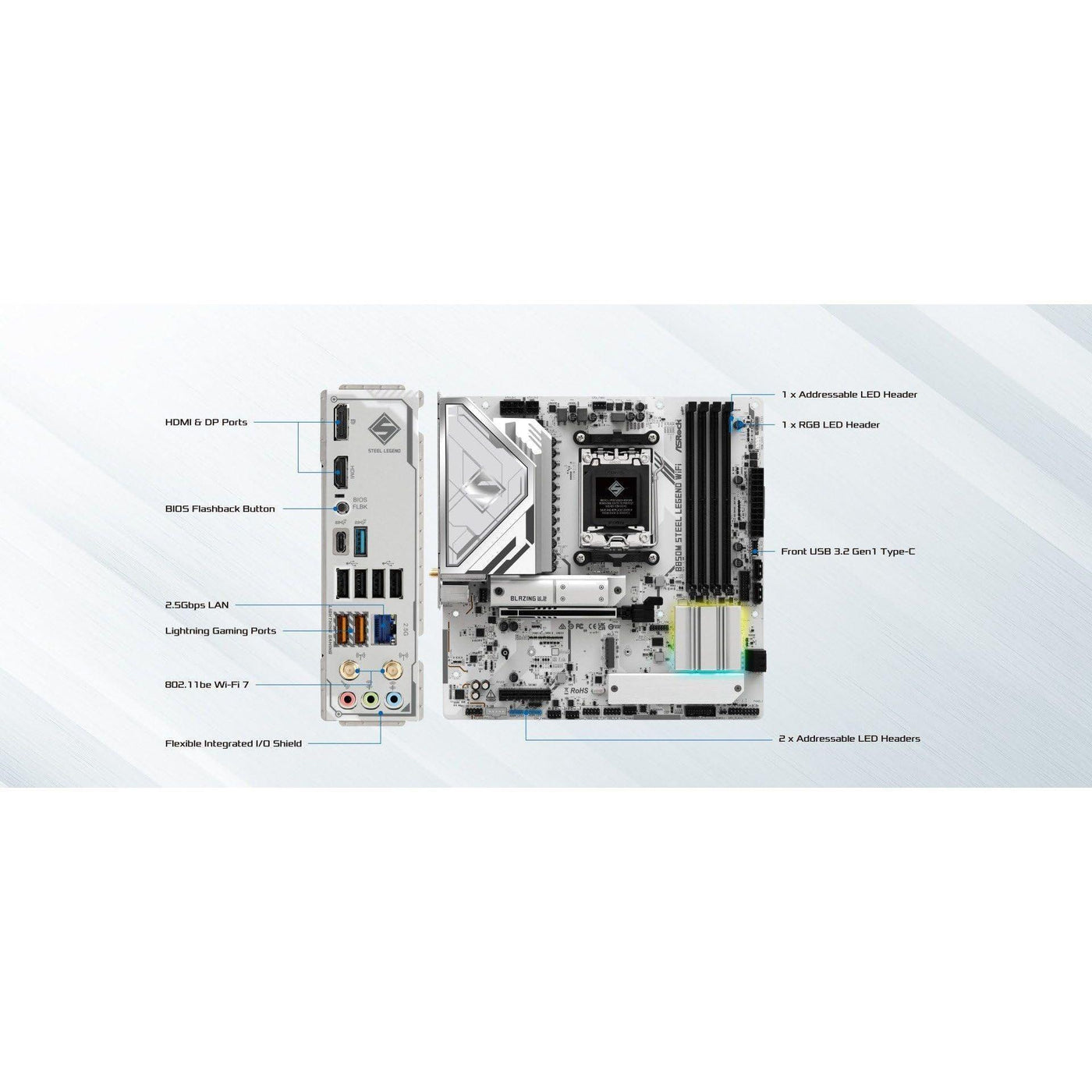

- 2 USB 3.2 Gen2 Type-A+C (Rear) 1 USB 3.2 Gen1 Type-C (Front) 6 USB 3.2 Gen1 (2 Rear, 4 Front) 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN 802.11be WiFi 7 +Bluetooth

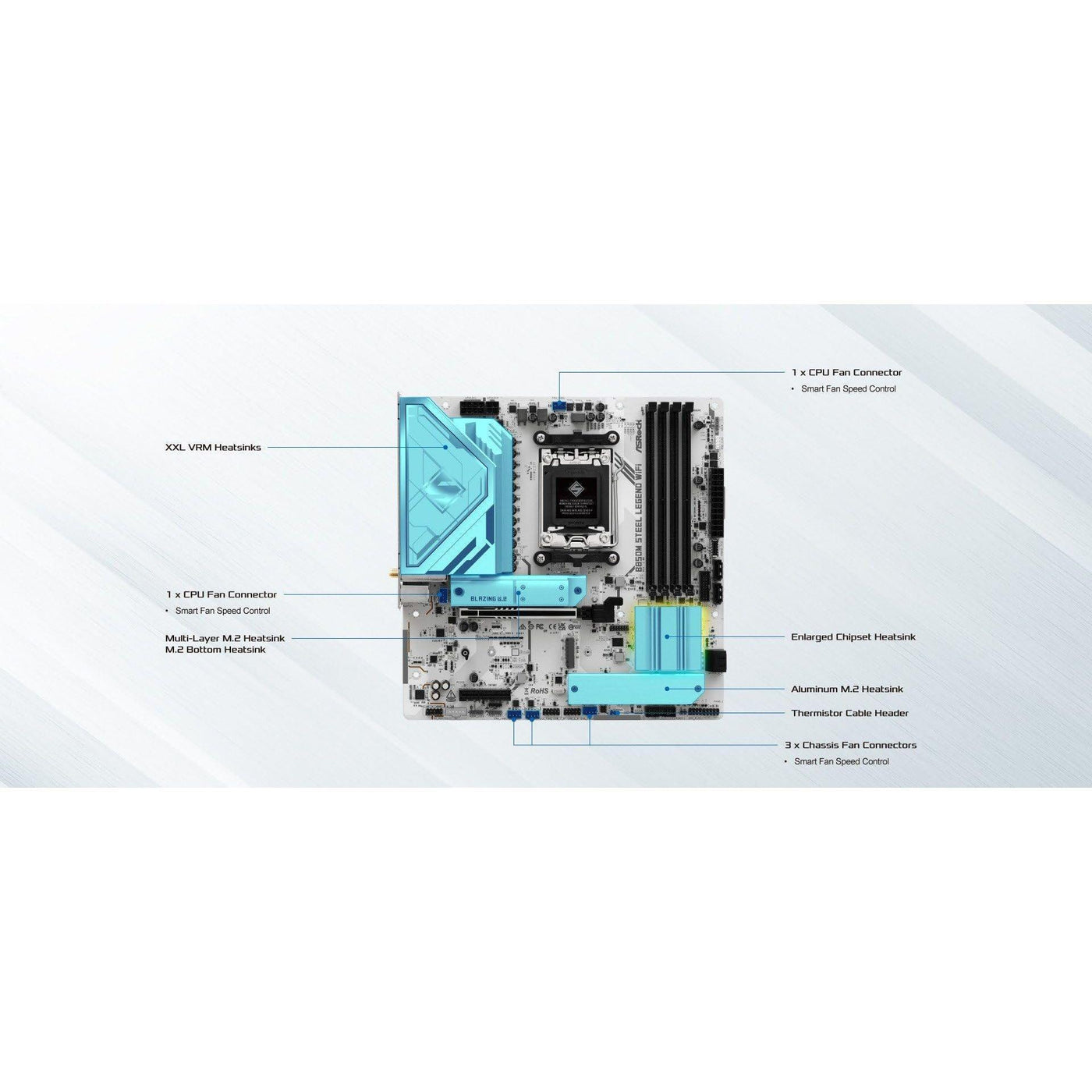

- Supports M.2 Bottom Heatsink, BIOS Flashback
- If any questions about the product, contact us on amazon.
Binding: Personal Computers
Release Date: 07-01-2025

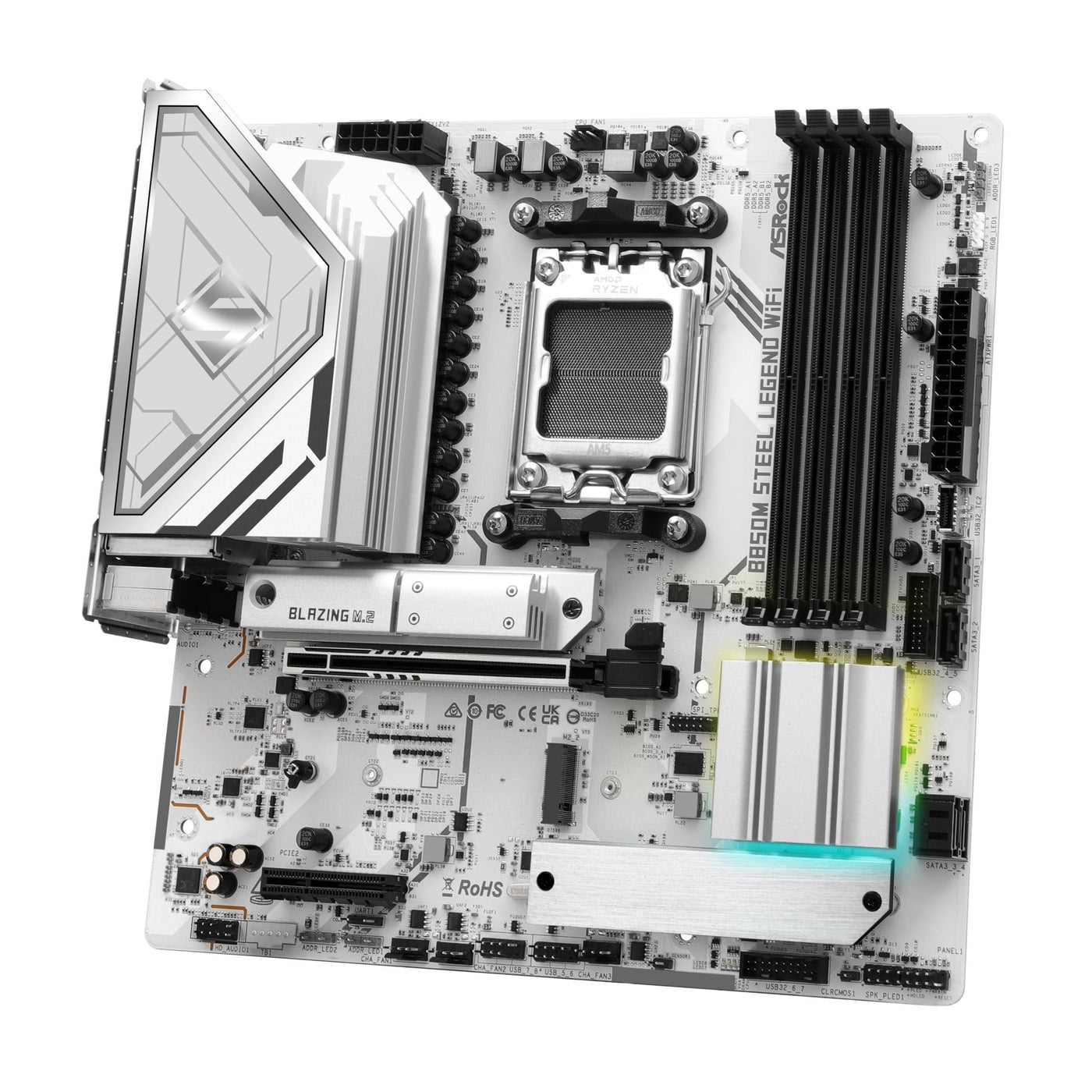

model number: B850M Steel Legend WiFi
Part Number: B850M Steel Legend WiFi

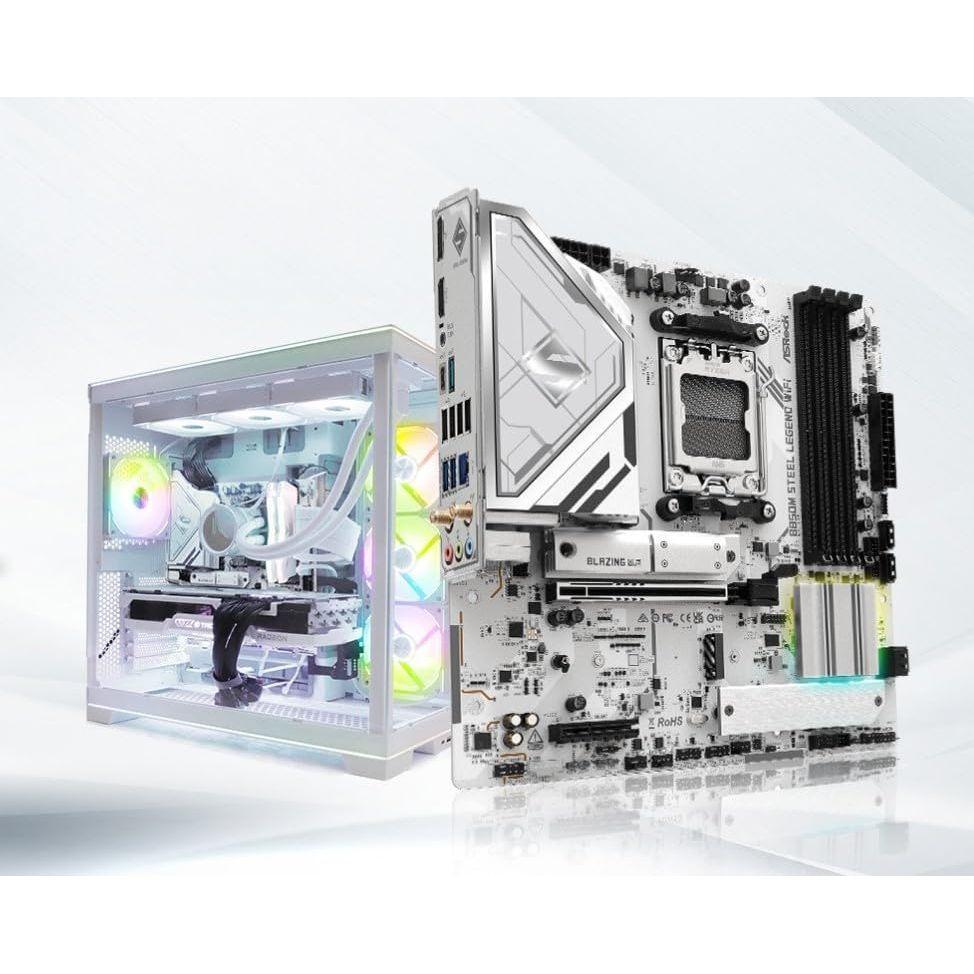

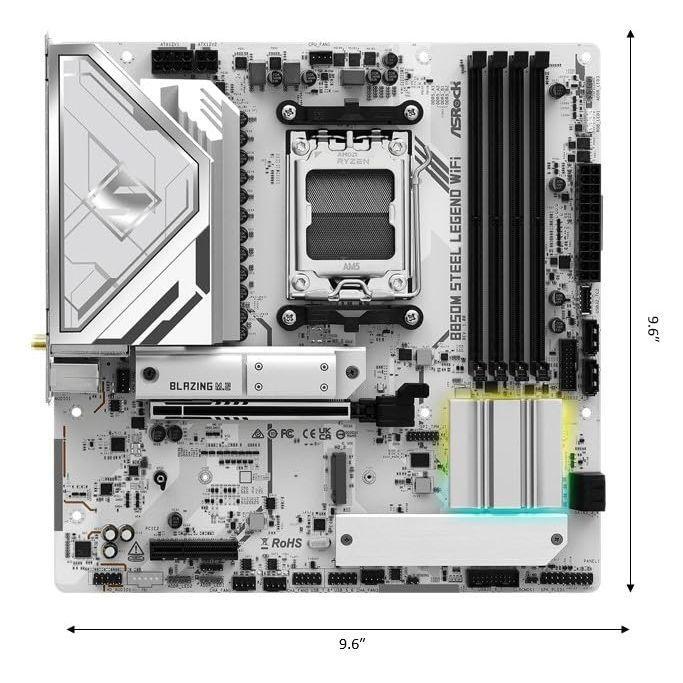

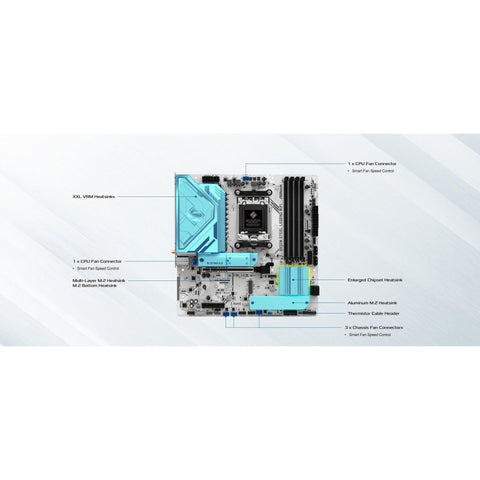

Details: The ASRock B850M Steel Legend WiFi is a high-performance Micro-ATX motherboard for AMD's AM5 platform, supporting Ryzen 9000/8000/7000 series processors with its robust 12+2+1 phase power design and Dr.MOS technology. Engineered for enthusiasts, it delivers DDR5-8000+ (OC) support across four DIMM slots and features PCIe 5.0 x16 for next-gen GPUs plus three M.2 slots (one PCIe 5.0 x4, two PCIe 4.0 x4/x2). The 244×244mm form factor packs premium features like M.2 bottom heatsink and BIOS Flashback for easy updates. Connectivity excels with WiFi 7 (802.11be) and 2.5G LAN, while the audio system features Realtek ALC1220 codec with Nahimic enhancement for immersive sound. The rear I/O includes USB 3.2 Gen2 Type-A+C and DisplayPort/HDMI, with front-panel USB 3.2 Gen1 Type-C support. Storage options span 4× SATA III and multiple high-speed NVMe configurations, making it ideal for both gaming and content creation workflows. Designed for compact power builds, this motherboard combines military-grade components with user-friendly features like toolless M.2 installation. The Steel Slot PCIe reinforcement and 8-layer PCB ensure durability, while Polychrome RGB lighting adds customization. Balancing premium specs with Micro-ATX practicality, it's the ultimate choice for AM5 users seeking WiFi 7, PCIe 5.0, and extreme memory overclocking in a space-saving design.
EAN: 4711581490499
Package Dimensions: 11.7 x 10.6 x 2.5 inches
